Overview:

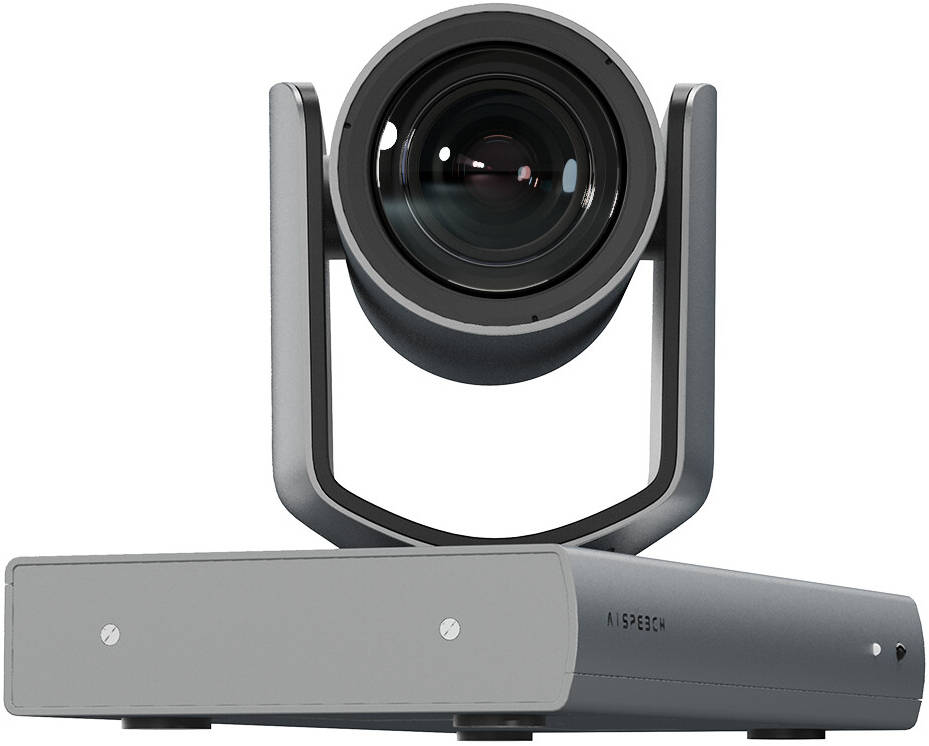

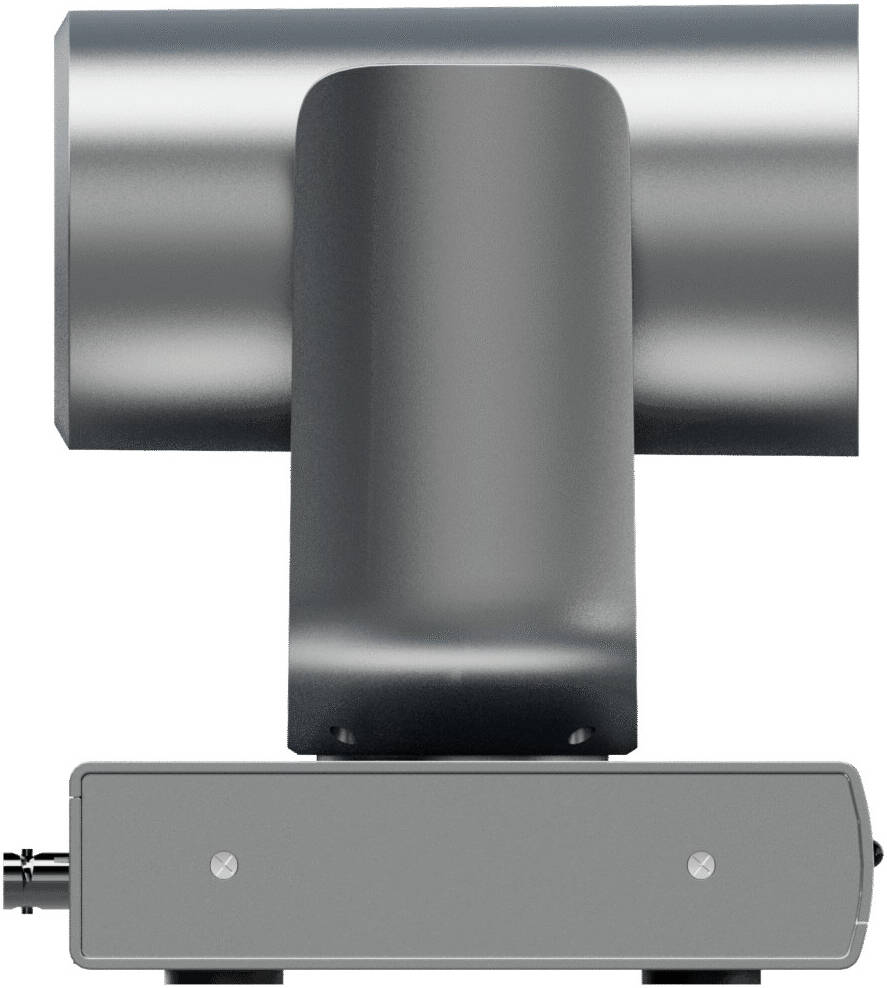

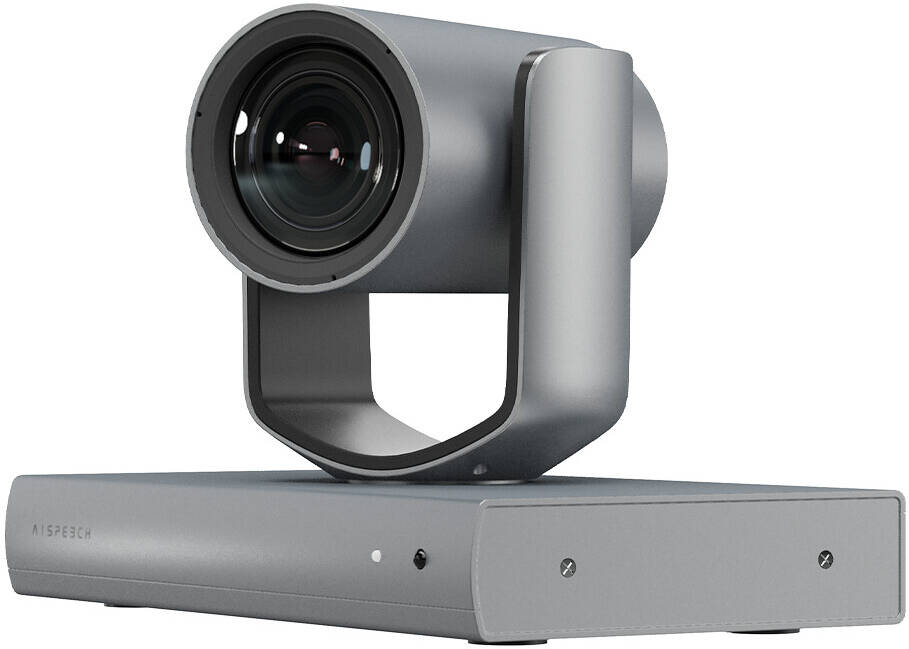

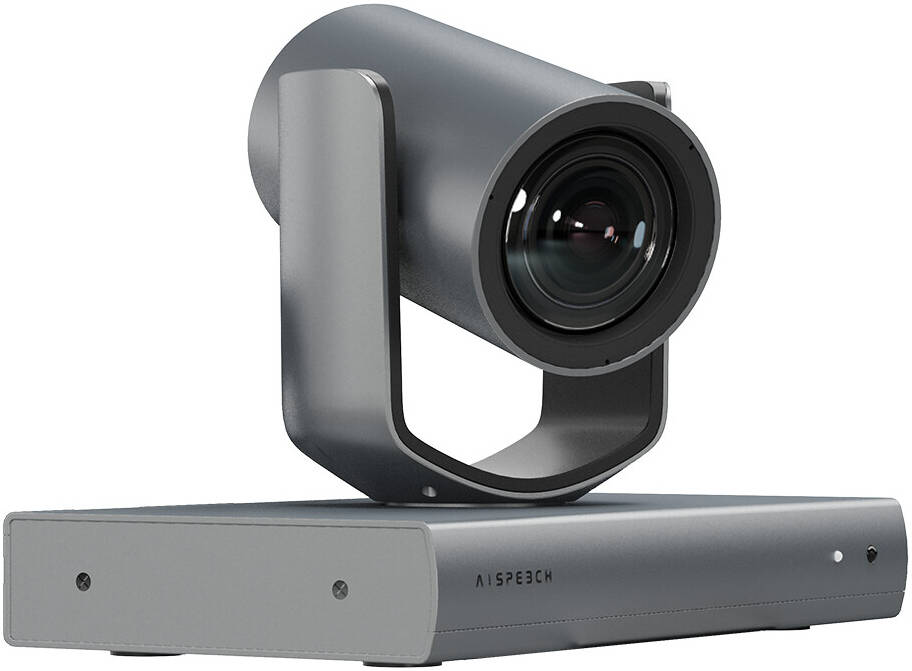

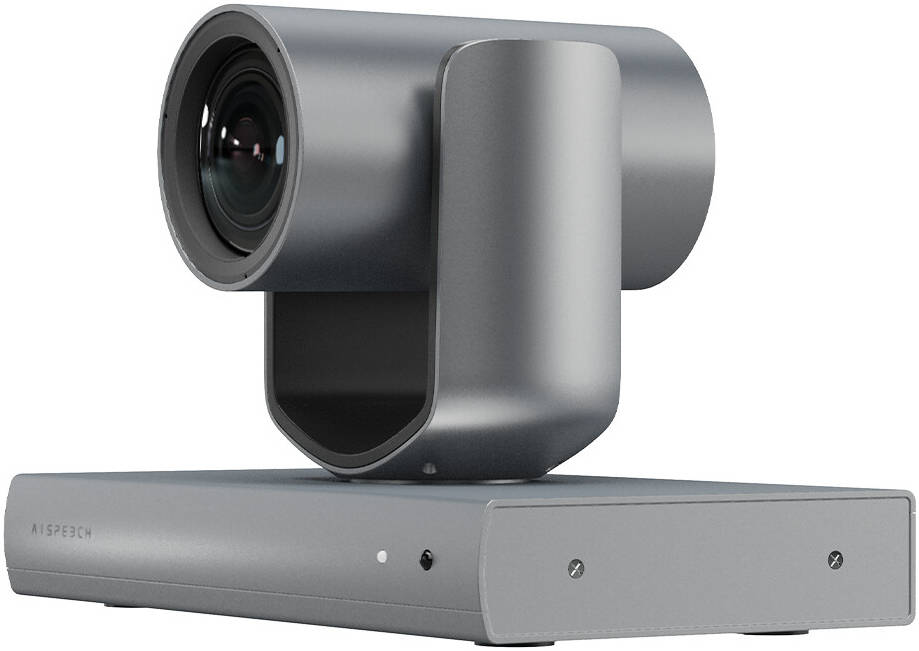

The C40T Ultra HD camera is a premium product specifically designed for modern enterprise conference rooms, it ensures every detail is captured with clarity. When paired with the MT100 AI Intelligent Audio-Visual Tracking Box and high-end ceiling microphones, the C40T offers an intelligent sound and image tracking solution for large spaces, ensuring that every meeting detail is recorded.
Low Light Image Capture
Its advanced CMOS image sensor features excellent noise reduction technology,Combined with cutting-edge 2D and 3D noise reduction algorithms, the signal-to-noise ratio exceeds 55dB, ensuring stable and delicate images under various lighting conditions, providing an impeccable visual experience for your meetings
Simplified Deployment
Equipped with a USB Host interface, it offers simple and flexible connectivity. Through USB or Bluetooth Dongle, you can easily connect to AISPEECH AI microphones, enabling seamless bidirectional audio transmission
Intelligent Microphone-Camera Integration
An intelligent microphone-camera integration technology tailored for large spaces, combining the precise positioning of ceiling microphones with the advanced tracking strategies of the MT100 intelligent sound and image tracking Box
Specs:
Image Sensor:
1/2.8-inch CMOS, 8.46 Megapixels
Focal Length:
f=3.9mm-46.8mm
Aperture:
F1.6-F2.8
Optical Zoom:
12x
Digital Zoom:
16x
Field of View:
Horizontal 72.5°- 6.3°
Focus System:
Auto, Manual, One-Touch Trigger, PTZ Trigger
Shutter Speed:
1/60-1/10,000 seconds
Gain:
Auto/Manual
White Balance:
Auto, Manual, One-Touch Trigger, Auto Tracking, One-Touch White Balance, Static Color Temperature
Exposure Control:
Auto, Manual, Shutter Priority, Aperture Priority, Brightness Priority
Wide Dynamic Range (WDR):
Support
Signal-to-Noise Ratio (SNR):
≥50dB
Anti-Flicker:
Supported
Menu:
English/Chinese
PTZ Parameters
Horizontal Range:
-130° to +130°
Vertical Range:
-30° to +90°
Horizontal Rotation Speed:
0.2° to 90°/second
Vertical Rotation Speed:
0.2° to 60°/second
Maximum Number of Preset Positions:
256
Interface
HDMI:
1 Port, HDMI1.4
Video Resolution:
4KP30/P25, 1080P60/P50/P30/P25, 720P60/P50/P30/P25
3G-SDI:
1 Port, 3G-SDI
USB 3.0:
1 Port, USB 3.0 Type-B, USB 3.0 Output Formats:
·
UVC: Support UVC 1.1 protocol
·
UVC Video Format: Support YUY2, NV12: Video Resolution: 1080P30/P25, 720P30/P25
·
H.264/H.265/MJPEG: Video Resolutions: 4KP30/P25, 1080P60/P50/P30/P25, 720P60/P50/P30/P25
·
UAC: Audio format PCM
USB 2.0:
1 Port, USB 2.0 Type-A HOST
Network:
1 Port, 10/100M RJ-45 POE
·
Video Rsolution: 4KP30/P25, 1080P60/P50/P30/P25, 720PP60/P50/30/P25, 360P30/P25
·
Video Format: Support H.264, H.265
·
Audio Compression: AAC
·
Network Protocols: ONVIF, RTSP, TCP, UDP, RTMP
Audio Interface
1 Port, LINE IN, 3.5mm audio jack; 1 Port, REF, 3.5mm audio jack
Control Interface:
1 Port RS-485/1 Port RS-232 IN
Power Interface:
DC 12V
Power Switch:
Rocker switch
Wireless Control:
Infrared remote control
General Specifications
Control Protocol:
VISCA
Power Consumption:
<20W
Operating Environment:
Operating Temperature: 0°C ~ 40°C Operating Humidity: 10%RH ~ 90%RH
Vertical Rotation Speed:
0.2° to 60°/second
Storage Environment:
Storage Temperature: -20°C ~ +60°C Storage Humidity: 10%RH ~ 95%RH
Dimensions (L × W × H):
245*145*164 mm
Body Weight:
≈2 kg
