Features
- Video Distribution with 4 Outputs
- Adjustable Gain Amplification
- Input LOOP OUT Jack
- Video 1 Volt Signal Indicator
- 10 MHz Bandwidth, NTSC or PAL
- 1/3-Rack, High-Density Rack Mounting
Specifications
| Input | 1 k? bridging 75 ? line |
| Gain | -1 dB to +7 dB (0.9 to 2.25 V p-p, adjustable) |
| Outputs | 1 LOOP OUT from input signal; 4 amplified outputs |
| Output Level | 1 V p-p into 75 ? |
| Frequency Response | 10 Hz to 10 MHz (± 0.2 dB) |
| Noise | < -70 dB below (1 V p-p) |
| Output Isolation | > 40 dB |
| Differential Gain | 0.1% |
| Differential Phase | 0.1 degree (measured at 10% and 90 APL) |

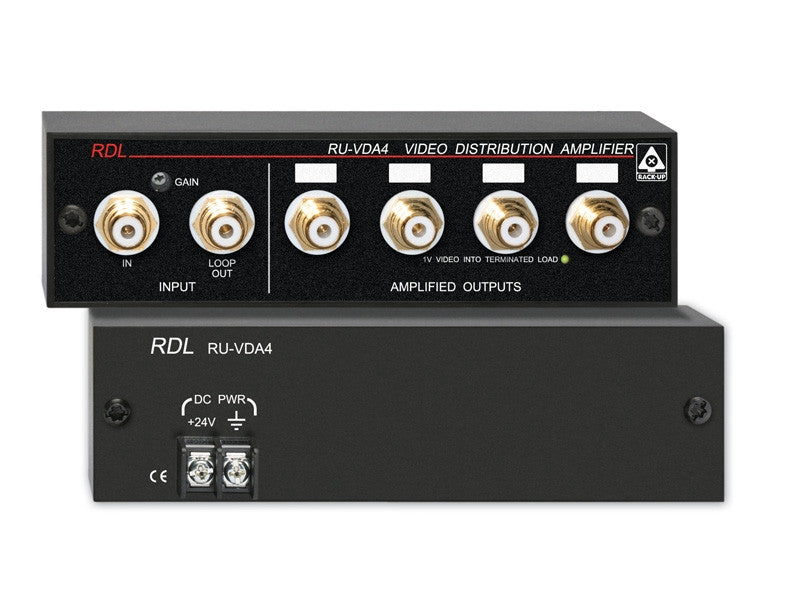

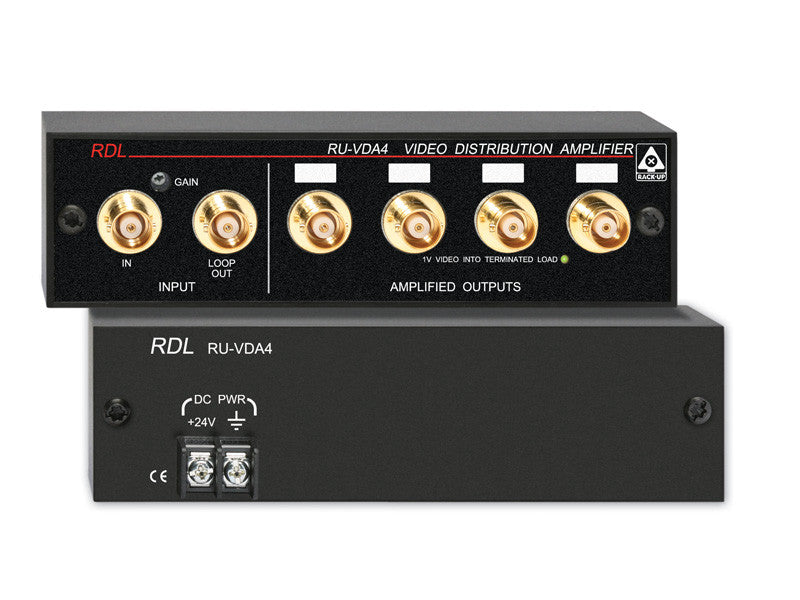

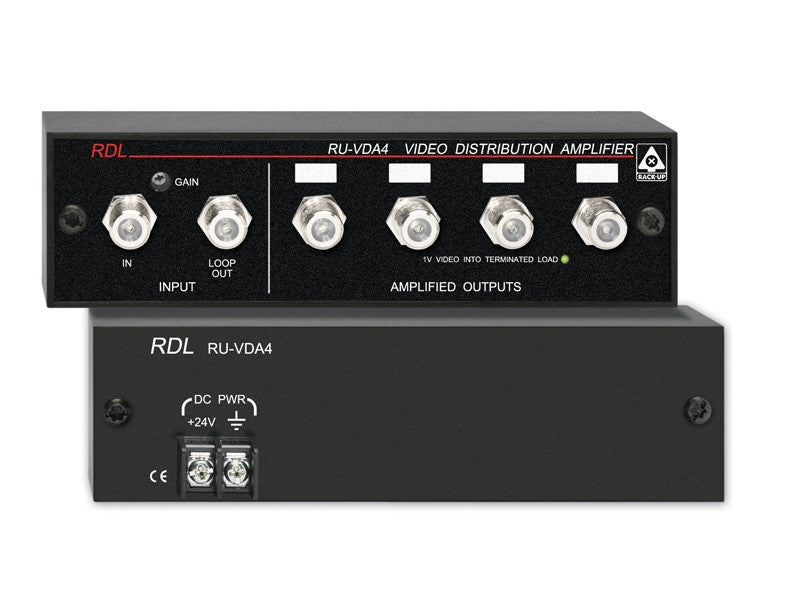

| Connector Type | BNC, PHONO, or Type F |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 60 mA |
| Dimensions | Height: 1.7 in (4.3 cm), Width: 5.8 in (15.0 cm), Depth: 3.0 in (7.7 cm) |
| Package Type | Cardboard Box |
| Package Dimensions | 4.375 x 7 x 2.25 in. |
| Shipping Weight | 0.93 lbs. |
| WEEE weight | 0.665 lbs. |
| Tariff code | 8518.40.2000 |
