Overview

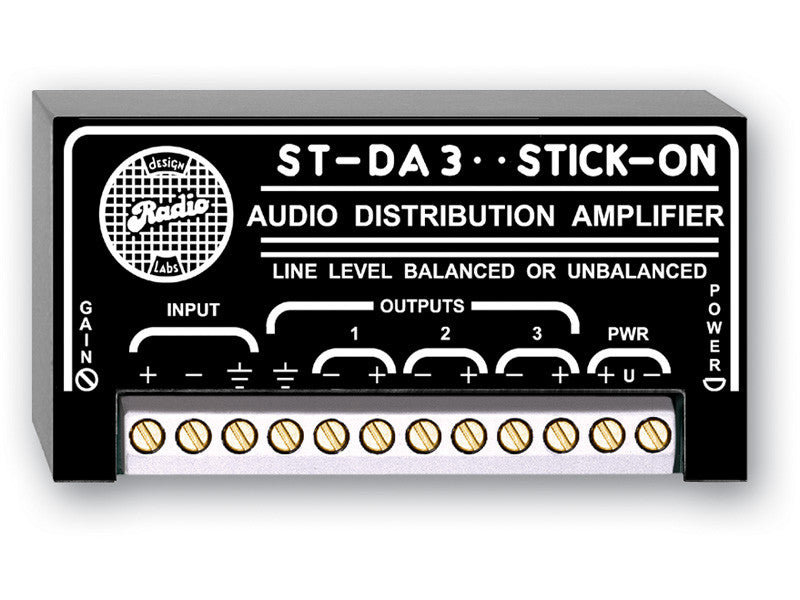

The ST-DA3 gives you the advantages of an audio distribution amplifier PLUS you can put it where you need it. The ST-DA3 allows bridging of any audio line, adjusting the gain, and driving up to three high or low impedance, balanced or unbalanced loads. The ST-DA3's wideband circuitry produces the unsurpassed pure clarity, low-distortion and low-noise for which RDL products are known.
The ST-DA3 features RDL's SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the PWR minus terminal and any module ground, the module power becomes ground-referenced.
Features
- Audio Distribution with up to 3 Outputs
- Balanced or Unbalanced Input and Outputs

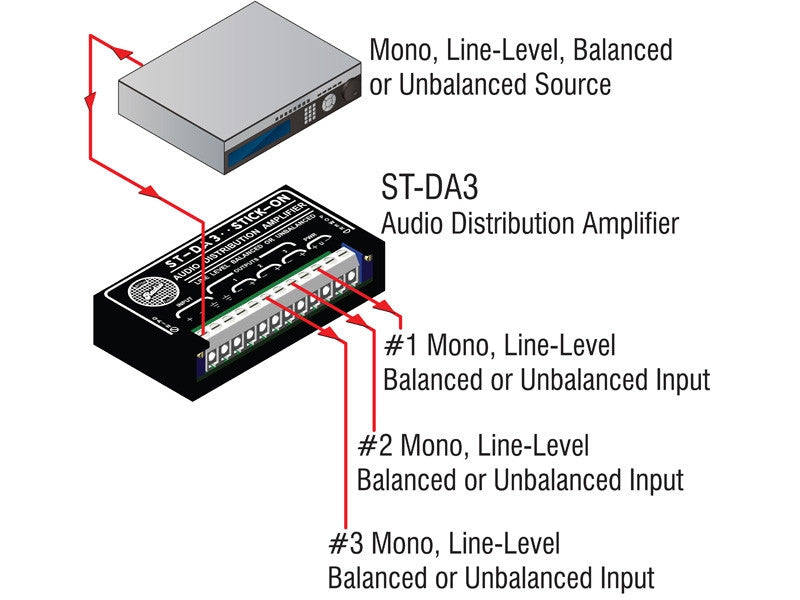

- Bridge an Audio Line for Local Distribution
- Distribution with Impedance Conversion
- Distribution with Gain or Loss
- Inputs and Outputs RF-Protected
- 1x3 Mono or Use Two Units for Stereo
- RDL® SupplyFlex™ Power Input Configuration
Specifications
| Input | 20 k? balanced or unbalanced |
| Input Signal | -15 dBV to +21 dBu (for +4 dBu output) |
| Maximum Input Level | +24 dBu |
| Outputs (3) | 150 ? balanced or 75 ? unbalanced |
|
Output Signal: | |
| Balanced | +4 dBu nominal balanced; |
| Unbalanced | 6 dB below balanced line level |
| Maximum Output Level | +25 dBu |
| Frequency Response | 10 Hz to 100 kHz (± 0.05 dB) |
| THD+N | < 0.002% (unity gain) |
| IMD | < 0.003% (unity gain) |
| Noise below +4 dBu | < -98 dB (unity gain) |
| Headroom | > 20 dB (above +4 dBu) |
| Gain | Unity ± 17 dB (adjustable) |
| CMRR | > 60 dB (50 Hz to 120 Hz) |
| Power Requirement | GROUND-REFERENCED or FLOATING, 24 Vdc @ 70 mA |
| Package Type | Cardboard Box |

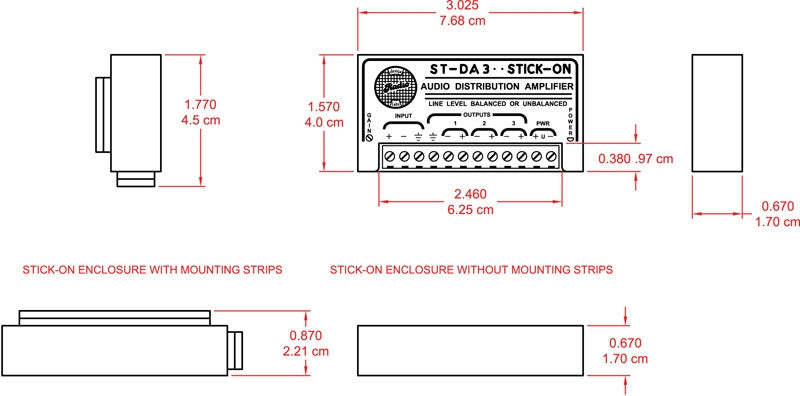

| Package Dimensions | 2 x 2 x 4 in. |
| Shipping Weight | 0.2 lbs. |
| WEEE weight | 0.145 lbs. |
| Tariff code | 8518.40.2000 |
