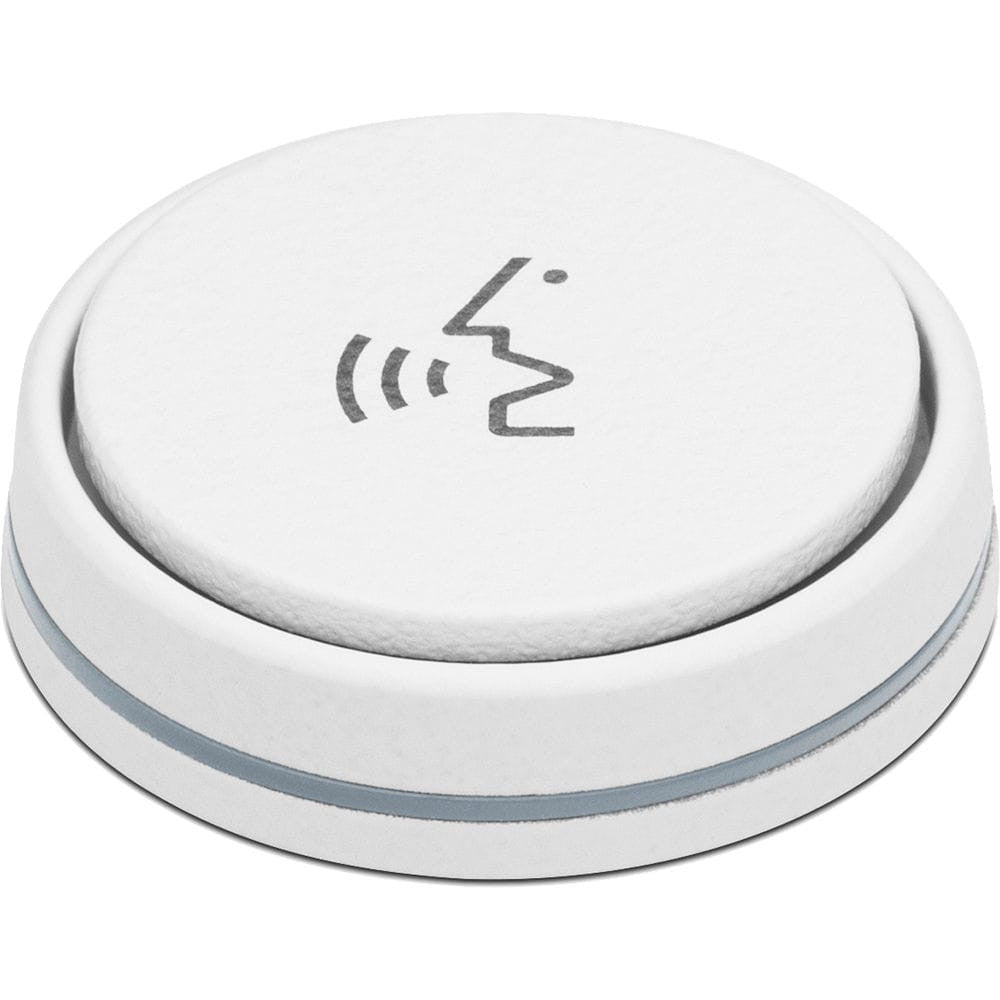

Sennheiser MAS 1 W
  • Sennheiser MAS 1 W
Sennheiser MAS 1 W

Sennheiser MAS 1 W

MSRP: $129.00
MAP: $129.00

Microphone activation button (when paired with MAS 133 inline switchbox) for any XLR-attached microphone with 5-pin XLR-M. Features programmable on, off, PTT and PTM modes and bi-color LED ring for status indication. Includes (2) rubber rings for ...

SKU: SEN-505619

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

Rugged Microphone Activation Button - White

The rugged MAS 1 microphone activation button, used in conjunction with the MAS 133 inline switch box, offers control of connected microphone. Programmable activation modes include On, On/Off, PTT, PTM. For easy status indication, the MAS 1 is equipped with a bi-color LED.

Specifications

Dimensions Height: 3.19 in (0.31 in above surface), Diameter: 1.12 in
Connector XLR-5M out, Pin assignment: 1 = Ground, 2 = Switch, 3 = LED Red, 4 = LED Green, 5 = LEDs +12 V
Weight  2.11 oz
Phantom powering  12 V (1.5 mA max.)
Operating temperature  14 ° to 122 °F
Colour LED light ring: Red / Green
Thread  M 20
