Overview

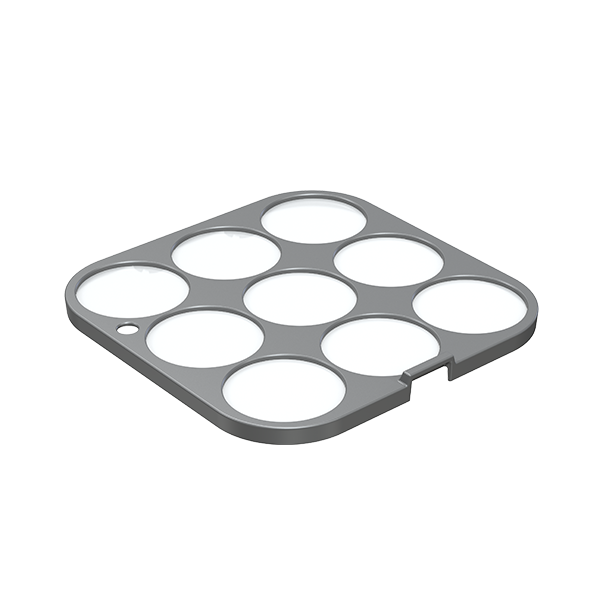

6-piece pack of 15° filters in magnetic attaching frames for WELL FIT X.
At a Glance
-
Easily install and widen the beam angle of the WELL FIT X from 11.5° to 17.3°
-
Small size makes storage in charging case simple
-
Simple installation and removal for on site application
-
Easily identifiable single notch for beam angle identification
-
Ships in packs of 6
Specifications
Optical
- Beam Angle: 17.3°
- Field Angle: 32.8°
- Illuminance: 507 lux @ 5 m (AC)
- Lumens: 171 (AC)
- Illuminance: 504 lux @ 5 m (Battery curve off)
- Lumens: 1698 (Battery curve off)
- Illuminance: 491 lux @ 5 m (5 hr)
- Lumens: 1655 (5 hr)
- Illuminance:321 lux @ 5 m (8 hr)
- Lumens: 1081 ( 8 hr)
- Illuminance: 213 lux @ 5 m (12 hr)
- Lumens: 717 (12 hr)
- Illuminance: 142 lux @ 5 m (18 hr)
- Lumens: 476 (18 hr)
Construction / Physical
- Dimensions:4.09 x 4.09 in (104 x 104mm)
- Weight: 0.03 lb (0.015kg)
Certifications / Qualifications
- CE
- IP Rating: IP65, temporary outdoor/wet use
What's Included
- WELL FIT 15° Filter X 6
