Overview

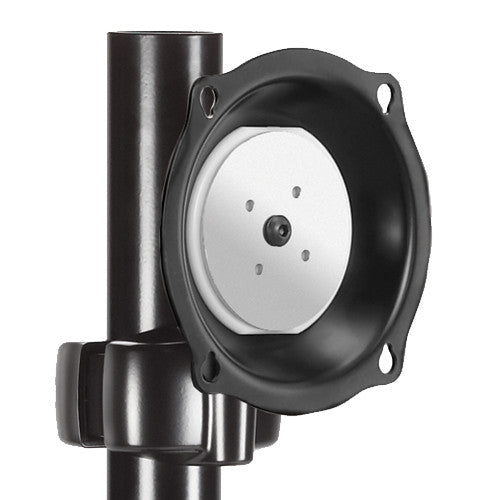

A great flat panel mount solution with pivot/tilt features used for mounting a medium size flat panel display on a pole.
- Centris Technology provides smooth, fingertip tilt in all directions
- Portrait and landscape mounting capability
- Smooth swivel up to 15° in any direction
- Fast height adjustment for ergonomic alignment
- Attaches to 1.5" - 2.0" diameter poles
- Universal models available for VESA® 100 x 100 mm up to 400 x 400 mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Specification
Dimensions & Measurements
| Pole Diameter Range | 1.5" - 2" (38mm - 51mm) |
| Typical Screen Size | 26" - 45" (660mm - 1143mm) |
| Weight Capacity | 75 lbs (34 kg) |
Characteristics & Features
| Adjustability |
|
| Application | Pole |
| Color | Black |
| Number of Displays | 1 |
| Orientation |
|
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
