Overview

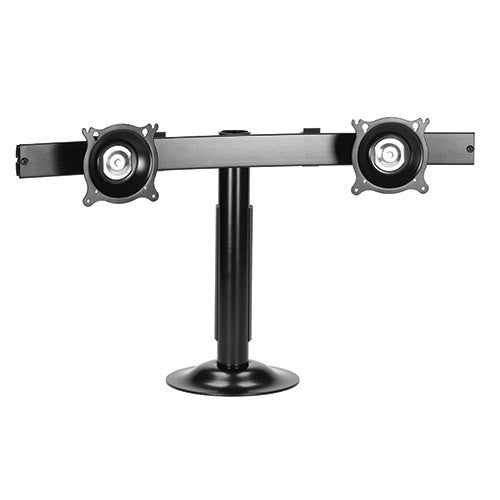

A rock solid, bolt-down solution for graphic designers, broadcasters and other users who commonly work with multiple small flat panel TVs or monitors.
- Provides ergonomic adjustability for hassle-free, fingertip positioning of each monitor
- Centris Technology provides smooth, fingertip tilt in all directions
- Screen angle stays set in place until you decide to re-adjust
- Independent adjustment of each screen for proper ergonomic alignment
- Teardrop hole pattern makes mounting the screens quick and easy
- Heavy-duty, solid steel base and oversize pole for unmatched stability
- Conceal and protect cables using snap-on covers and cable clip
- Heavy-duty, solid steel bolting plates and oversized pole for unmatched stability
- Integrated cable management
- VESA® 75 x 75 mm and 100 x 100 mm compatible
Specification
Dimensions & Measurements
| Depth | 5.9 |
| Height | 14.5 |
| Overall Dimensions | 14.5" x 27.3" x 5.9" (368 x 694 x 149mm) |
| Shipping Weight | 17.5 lbs (7.9 kg) |
| TV Height Range | 10" - 26" (254mm - 660mm) |
| TV Width Range | 10" - 22.7" (254mm - 577mm) |
| Typical Screen Size | 10" - 24" (254mm - 609.6 mm) diagonals |
| Weight Capacity | 35 |
| Width | 27.3 |
Characteristics & Features
| Adjustability |
|
| Array Configuration | 2x1 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 5" (13mm - 127mm) |
| Notes | Weight capacity is per monitor |
| Number of Displays | 2 |
| Orientation |
|
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
