Overview

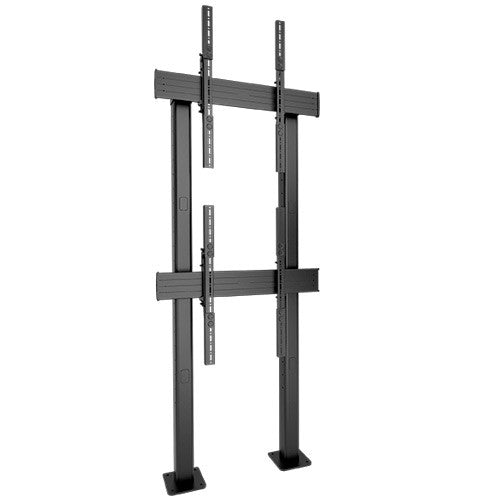

Chief's Fusion® Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 1 screen wide x 2 screens high in portrait.
- 1 x 2 portrait screen arrangement for 42 - 80" screens.
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
- TAA Compliant
Specification
Dimensions & Measurements
| Center of Display To Floor Table Range | 82.39" (2093 mm) (maximum top) - 16.38" (416 mm) (minimum bottom) |
| Depth | 7.5 |
| Height | 84.45 |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 84.45" x 36" x 7.5" (2145 x 914 x 191 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 190 lbs (86.2 kg) |
| Typical Screen Size | 42" - 80" (1067mm - 2032mm) |
| Weight Capacity | 125 |
| Width | 36 |
Characteristics & Features
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 1x2 |
| Color | Black |
| Notes | TAA Compliant |
| Number of Displays | 2 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| VESA Mounting Pattern | 100 mm x 100 mm – 800 mm x 900 mm |
