Overview

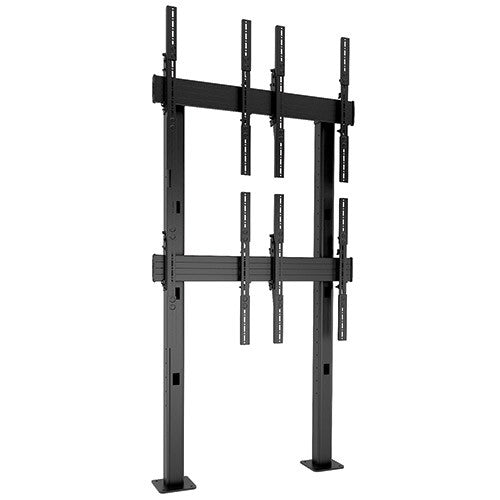

Chief's Fusion® Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 2 screens wide x 2 screens high in portrait
- 2 x 2 portrait screen arrangement for 42 - 50" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
Specification
Dimensions & Measurements
| Center of Display To Floor Table Range | 17.38" (441 mm) (minimum bottom row) - 82.38" (2092 mm) (maximum top row) |
| Depth | 9.61 |
| Height | 98.6 |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Overall Dimensions | 98.6" x 46.0" x 9.61" (2504 x 1168 x 244 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 193 lbs (87.5 kg) |
| Weight Capacity | 100 |
| Width | 46 |
Characteristics & Features
| Adjustability | Micro-Adjustable |
| Application | Bolt-Down |
| Array Configuration | 2x2 |
| Color | Black |
| Number of Displays | 4 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
