Overview

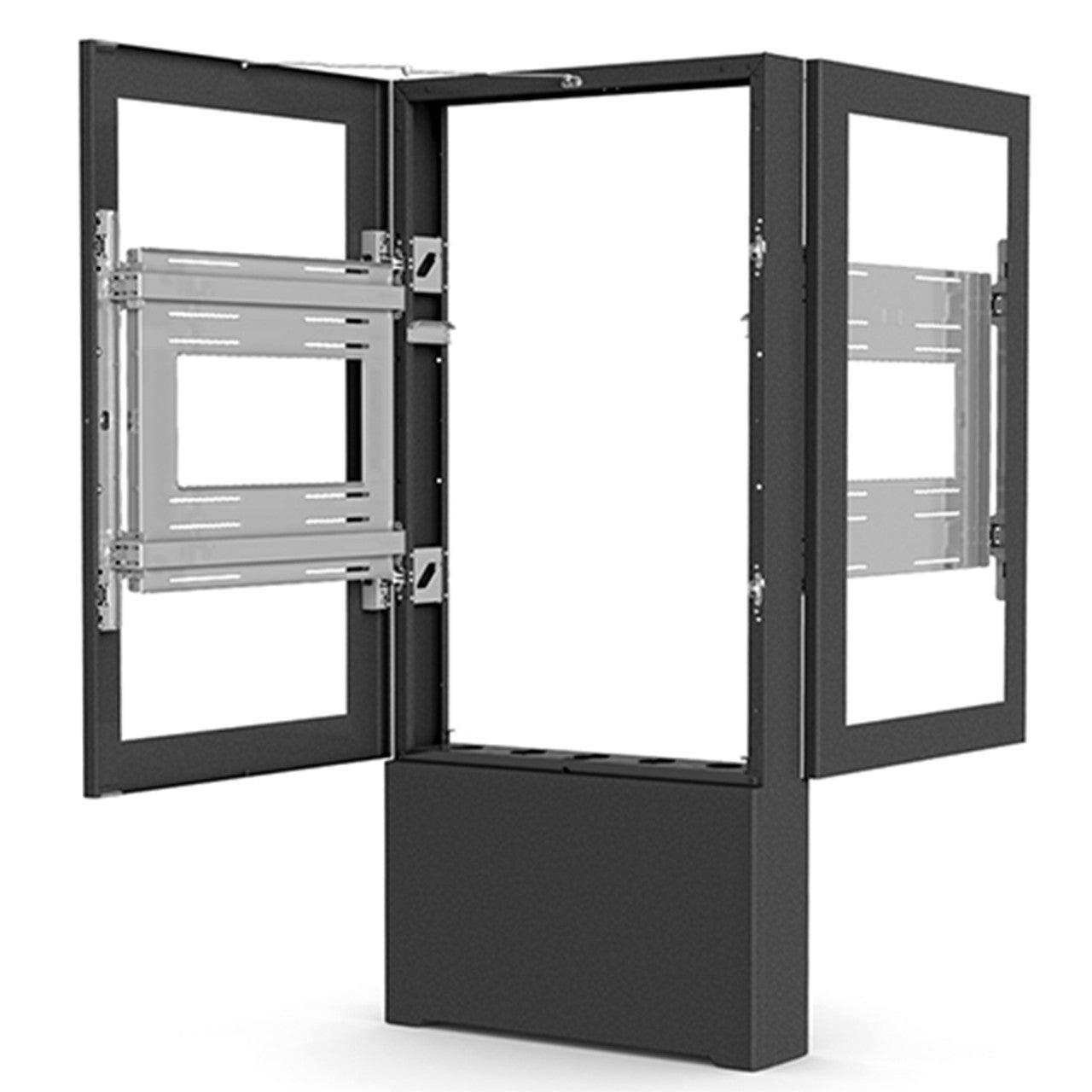

Impact™ Floor Mounted Portrait Kiosks provide an aesthetic solution for enclosing displays in open areas. Designed with no exposed fasteners while maintaining full access and serviceability. Our exclusive design keeps the display mounted to the frame when opened. Keyed locking security keeps displays safe, and a universal AV Storage plate holds supporting equipment.
Note: Bezel size varies per product.
- Unparalleled front service and maintenance access
- Aesthetically pleasing with no exposed fasteners
- Keyed locking security
- Tool free removable storage panels
- Universal AV storage space
- Internal knockouts for electrical junction boxes and 2RU rack spaces
- External cable pathway knockouts
- Integrated passive cooling
- 125 lbs. (56.7 kg) weight capacity / screen

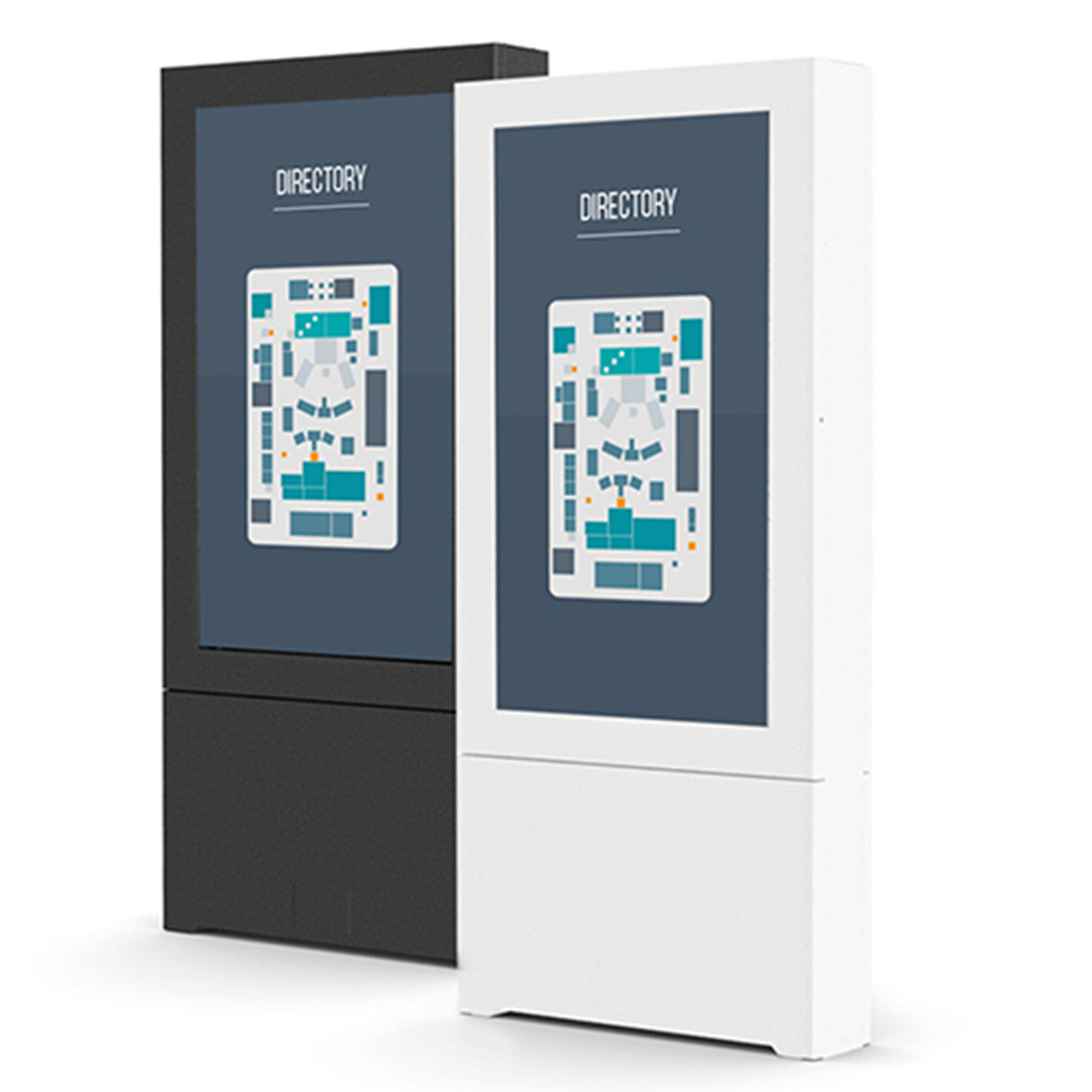

- Available in black and white
- Custom colors can be special ordered with a MOQ of 100
Specification
Dimensions & Measurements
| Depth | 8.5 |
| Height | 77.1 |
| Max Equipment Size | 51" x 30" x 3.5” (1295 x 762 x 89 mm) |
| Maximum Screen Thickness | 3.5 in (88.9 mm) |
| Overall Dimensions | 77.1 x 35.1 x 8.5” (1958 x 891 x 216 mm) |
| Shipping Weight | 36.7 lbs (16.7 kg) |
| Typical Screen Size | 55 in (139.7 cm) |
| Weight Capacity | 125 |
| Width | 35.1 |
Characteristics & Features
| Adjustability | Fixed |
| Application |
|
| Color | Black |
| Number of Displays | 2 |
| Orientation | Portrait |
| Protective Glass | No |
| Solution Type | Universal |
| Special Features |
|
| VESA Mounting Pattern | 300 x 300 – 600 x 600mm |
