Overview

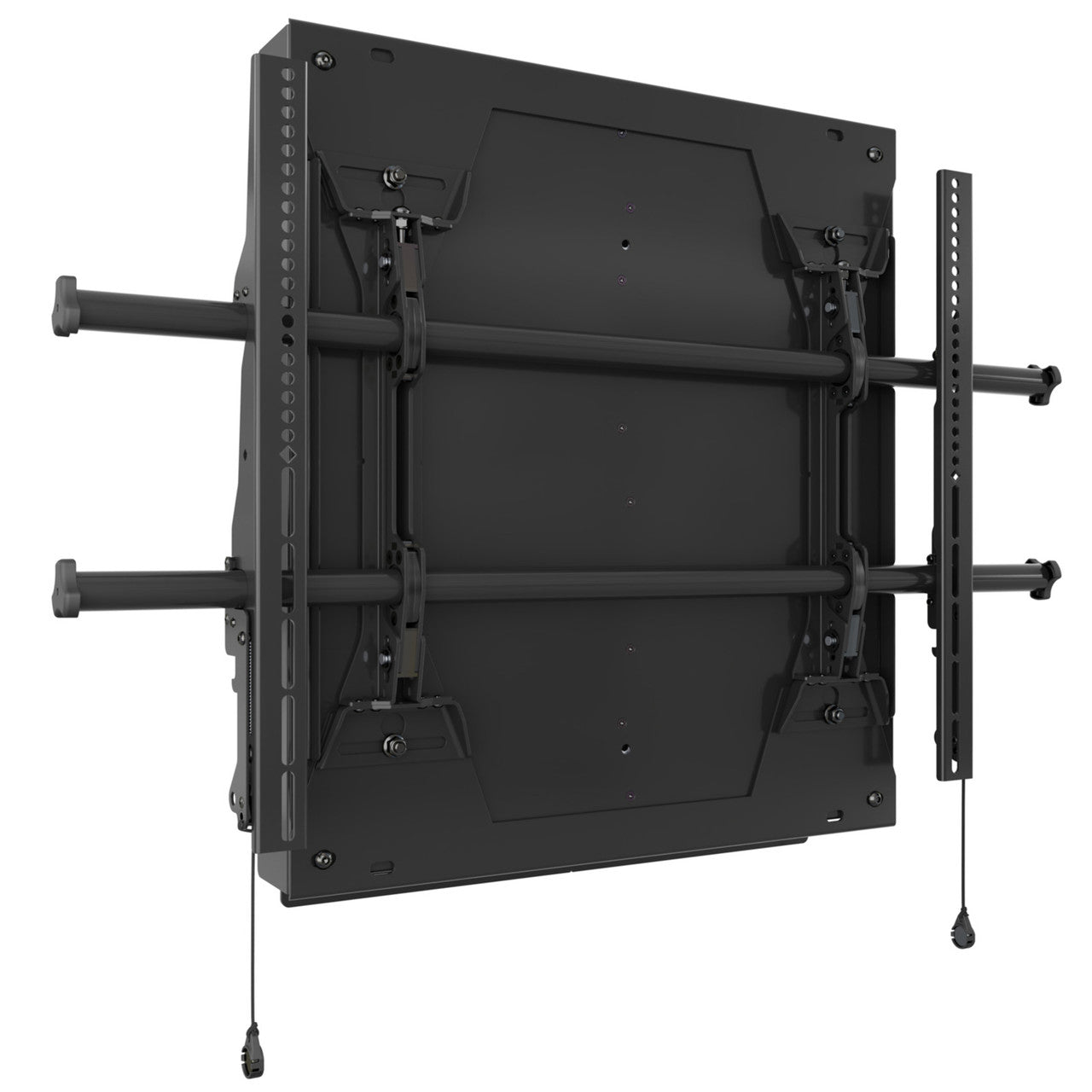

Ideal for interactive applications, Fusion® mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable solution provides ultra-smooth and fast vertical travel with almost no effort. Ships fully assembled with the LSM1U mount to make this a complete aesthetic solution.
Easy to install. Easy to adjust.
- Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly by manually moving the display up and down by hand
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Built in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Spring system tested to 60,000 cycles and 10 years of use
- Integrated security flag
Specification
Dimensions & Measurements
| Depth | 5.1 |
| Dynamic Height Adjustment | 15.75” (400 mm) |
| Height | 25 |
| Overall Dimensions | 25" x 34.8" x 5.1" (635 x 884 x 130 mm) |
| Shipping Weight | 36.7 lbs (16.7 kg) |
| Wall Stud Compatibility In | 16" (406mm) |
| Weight Capacity | 122 - 175 lbs (55.4 - 79.4 kg) |
| Width | 34.8 |
Characteristics & Features
| Adjustability |
|
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Height Assist |
| VESA Mounting Pattern | 100 x 100 - 800 x 500 mm |
