Overview
- Designed specifically for and only compatible with new ultra-thin TVs 2” (51 mm) deep or less
- Ultra low-profile design compliments ultra-thin flat panel TVs
- Provides 12° of smooth, fingertip tilt
- GlideLock provides tool-less latching for faster installation

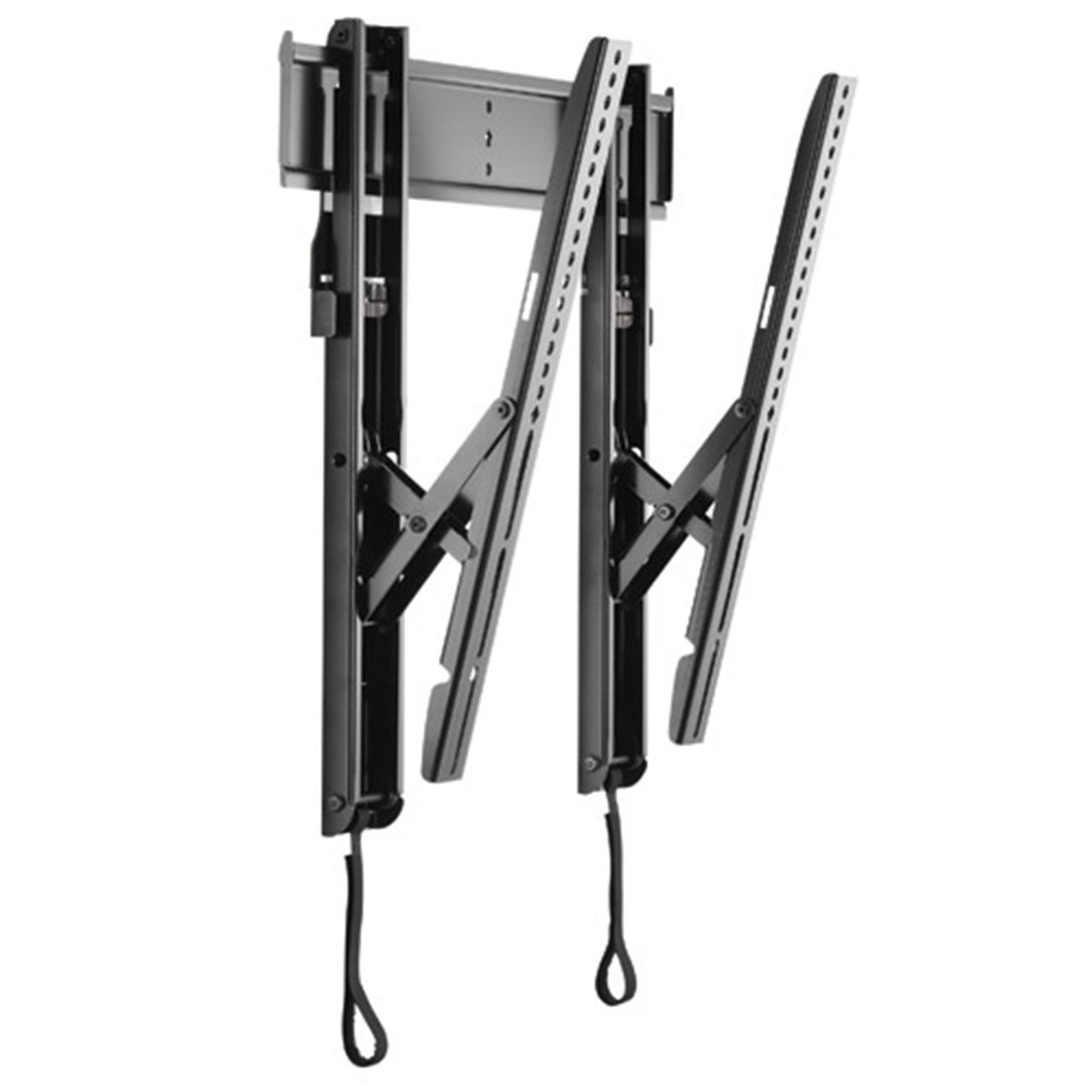

- Consists of one-piece steel bracket with two tilting interfaces
- Each interface includes a sliding flat for increased security
- Features a cable stand and bottom pullout for cable access
- Provides lateral shift for increased flexibility
- Can be installed in landscape mode only
NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation
Specification
Dimensions & Measurements
| Lateral Shift | Depends on mounting pattern of screen |
| Maximum Screen Thickness | 2" (51 mm) |
| Minimum Depth | 0.75 in (1.9 cm) |
| Shipping Weight | 12.55 lbs (5.7 kg) |
| Typical Screen Size | 26 - 47in |
| Weight Capacity | 100 |
Characteristics & Features
| Adjustability | Tilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Tilt | +0° and -12° |
| VESA Mounting Pattern | 100 x 100mm - 600 x 400mm |
