Overview

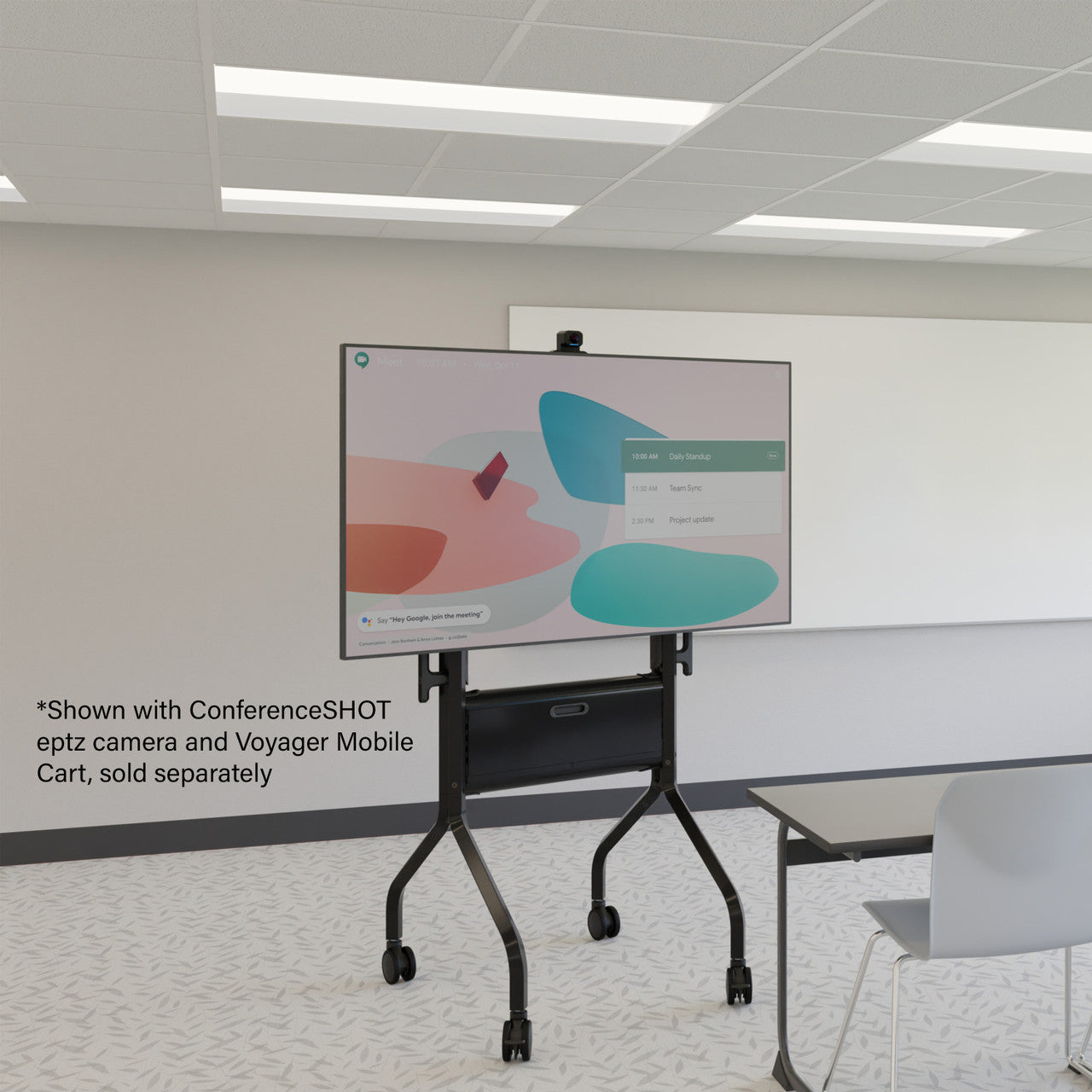

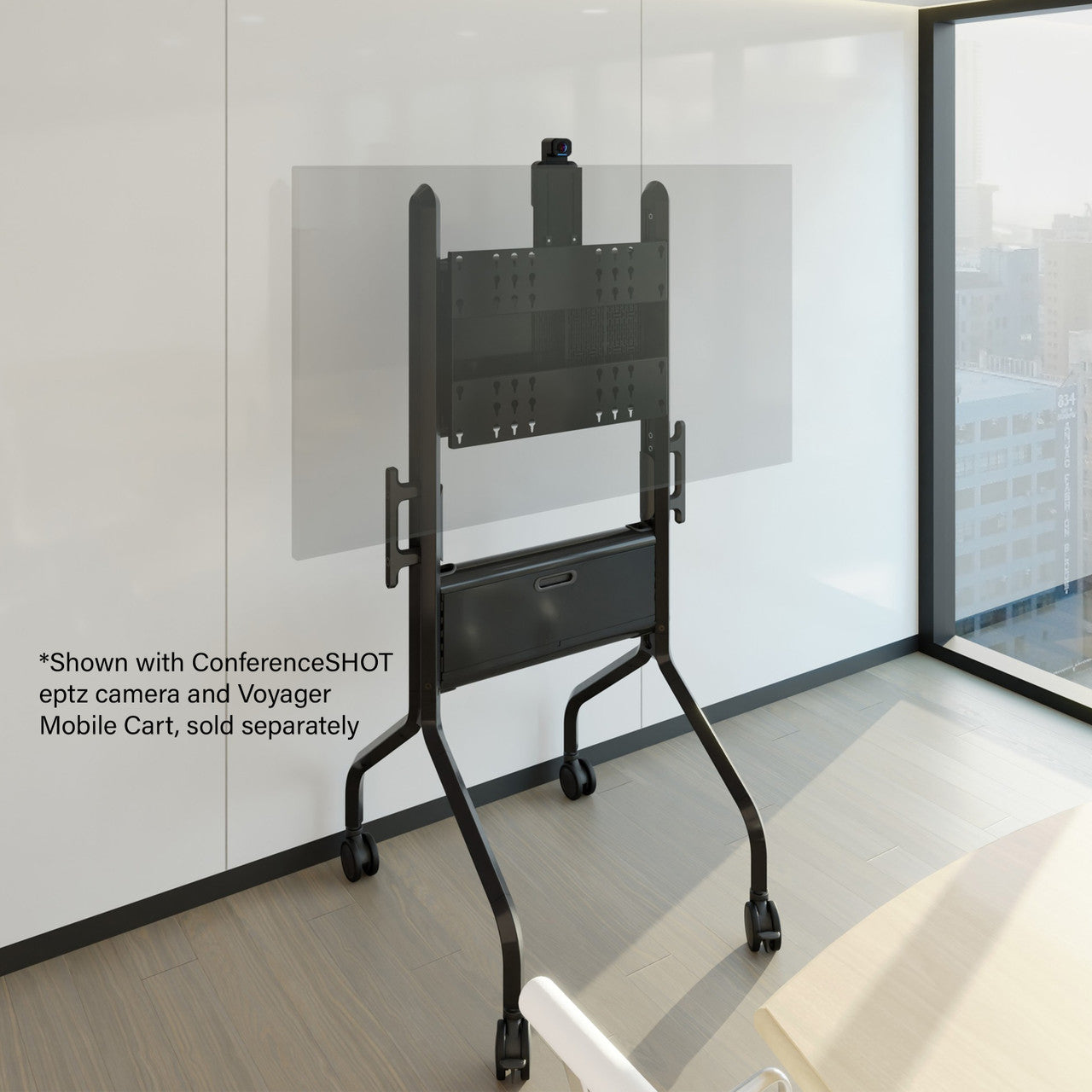

The PAC800K supports the Vaddio ConferenceSHOT ePTZ Camera above or below for Large displays.

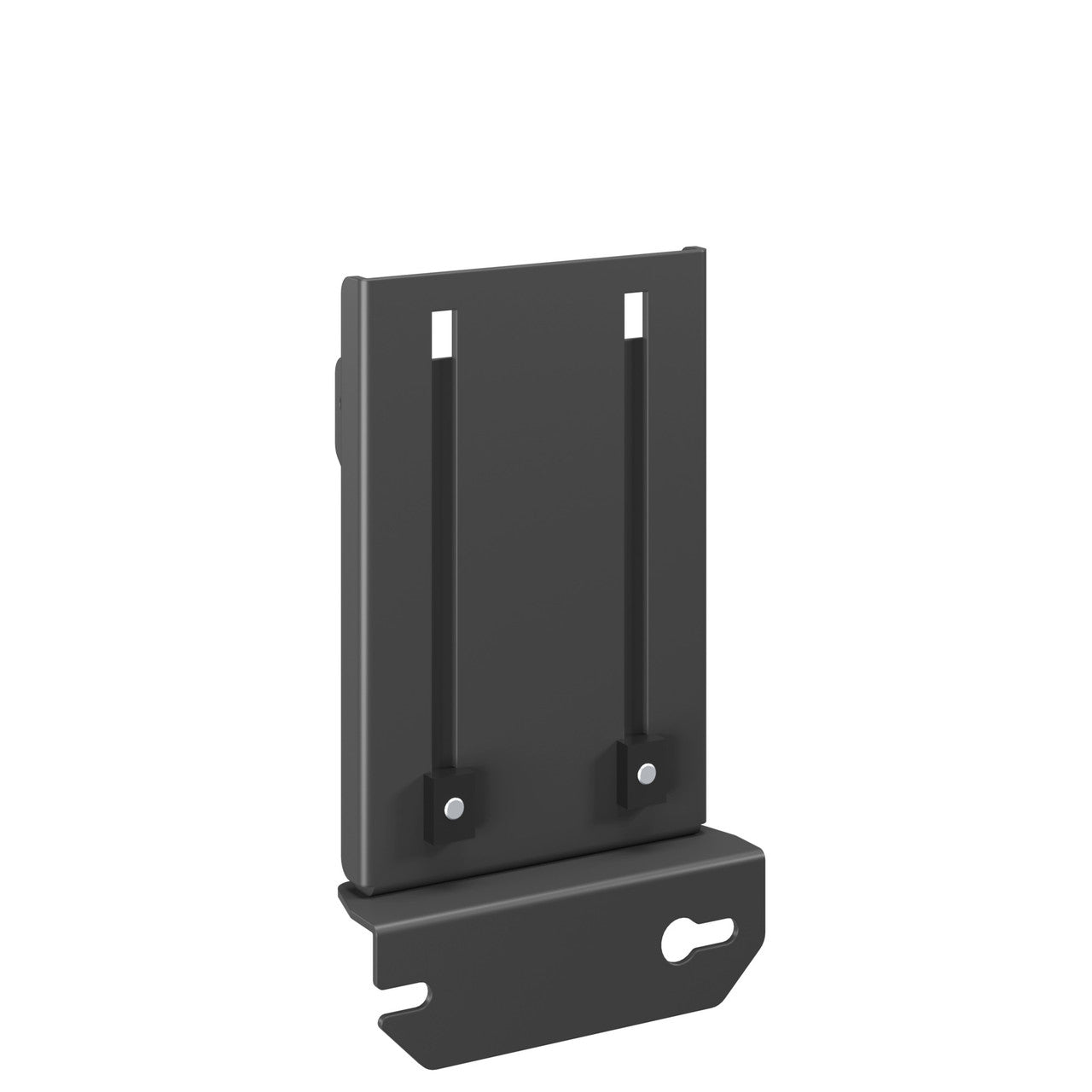

Camera shelf provides support for the PAC using the 14 x 14" (P-series) Q-Latch system.
Dimensions and specifications dependent on application type.
- Great for video conferencing applications

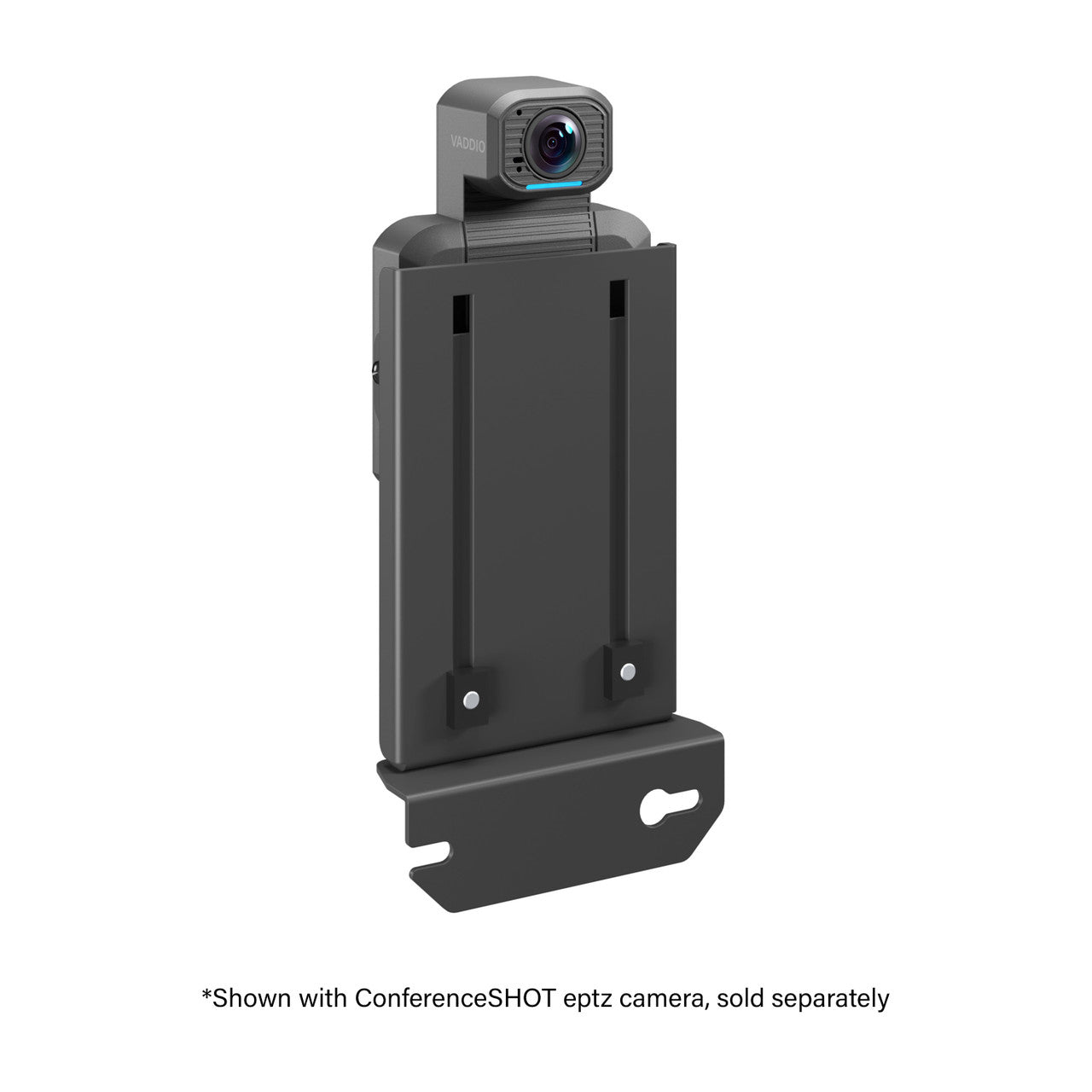

- Sits above or below display to support ConferenceSHOT ePTZ Camera
- Typical display sizes 50" to 75"
- 21.36” Maximum Extension range (from center of display)
- Display height ranges: 28" to 42.5"
- Compatible with all Chief carts and stands, swing arm mounts and ceiling mounts that use a 14 x 14" (P-series) Q-Latch system
Specification
Dimensions & Measurements
| Maximum Extension | 21.36" from center of display |
| TV Height Range | 28” – 42.5” (711mm - 1080mm) |
| Typical Screen Size | Large |
| Weight Capacity | 10 |
| Width | None |
Characteristics & Features
| Accessory Type | Camera Shelves |
| Application | ConferenceSHOT ePTZ Above, Below |
| Color | Black |
