Overview

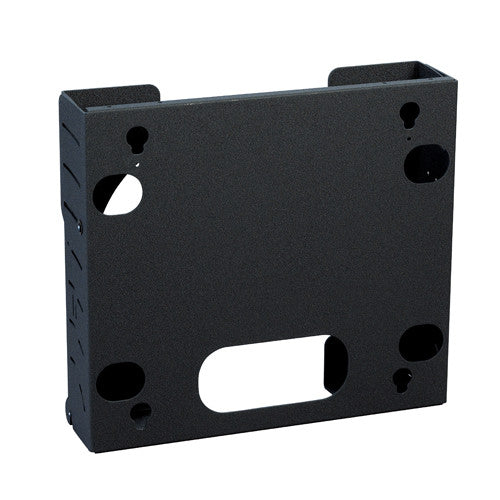

An all-in-one tilt wall mounting solution that's ideal for digital signage applications
- Complete solution designed to easily integrate a media player into a flat panel installation
- Provides lockable tilt at PTS2235, 5, 10 and 15º
- Q-Latch Mounting System provides lockable latch for increased security
- Integrated lateral shift up to 0.75" left or right of 16" center stud system
- Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
Specification
Dimensions & Measurements
| Lateral Shift | 1.5 in (3.8 cm) |
| Max Equipment Size | 20" x 18.79" x 3.79" (508 x 477 x 96 mm) |
| Maximum Screen Thickness | 6" (152mm) |
| Minimum Depth | 4.5 in (11.4 cm) |
| Shipping Weight | 22 lbs (10 kg) |
| Weight Capacity | 200 |
Characteristics & Features
| Adjustability | Tilt |
| Application |
|
| Color | Black |
| Interface Included | No |
| Number of Displays | 1 |
| Orientation |
|
| Solution Type | Universal |
| Tilt | +0° / -15° |
| VESA Mounting Pattern | 200 x 200mm - 862 x 517mm |
