Overview

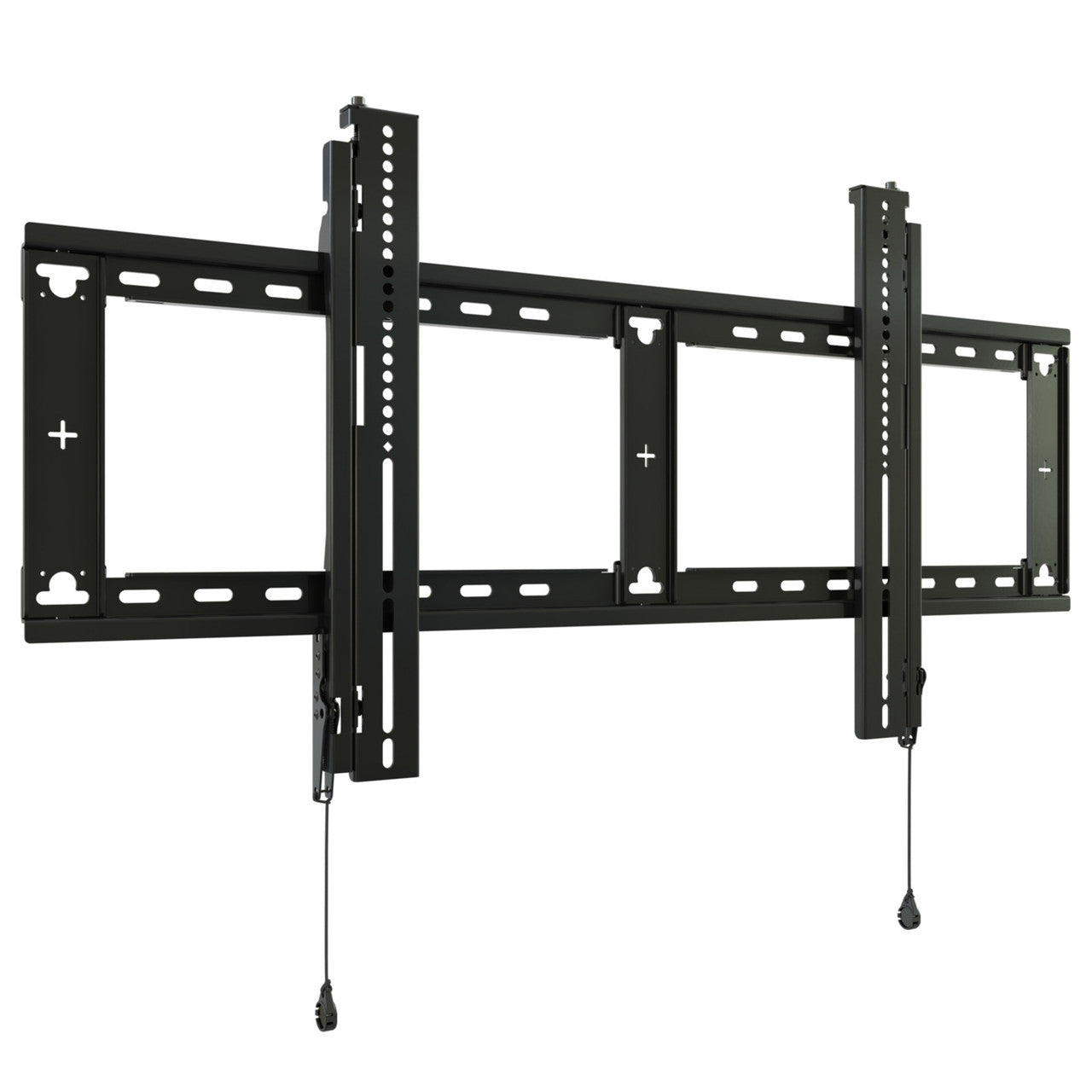

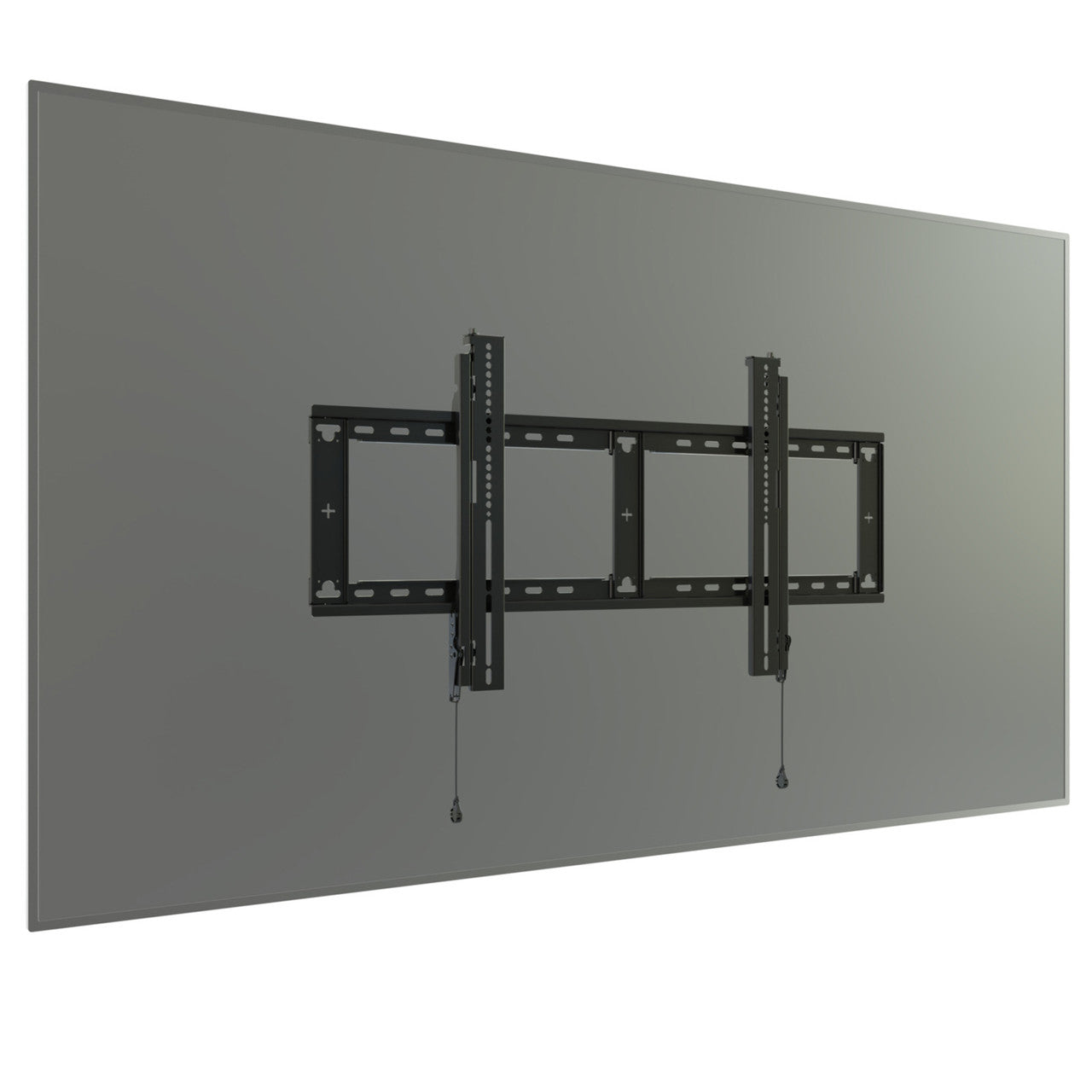

The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.
-
Low profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements
-
Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
-
Open wall plate allows for flexible positioning around power and data wall boxes
-
Supports display mounting patterns up to 960 x 450 mm
-
Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
-
Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
-
Easy access magnetic quick-store release pullcords
-
Kickstand for easy access to power and signal connections
-
Theft deterrent security options (not included)
-
UL and TUV safety standards compliant
Specification
| Depth | 1 in (2.5 cm) |
| Height | 19.19 in (48.7 cm) |
| Manual Height Adjustment | 0.75 in (19.1 mm) |
| Minimum Depth | 1 in (2.5 cm) |
| Overall Dimensions | 19.19" x 38" x 1" (559 x 965 x 25mm) |
| Shipping Weight | 14.88 lbs (6.8 kg) |
| Typical Screen Size | 43"- 86" (1092mm - 2184mm) |
| Wall Stud Compatibility In | Dual Stud |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 38 in (96.5 cm) |
| Adjustability | Fixed |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| VESA Mounting Pattern | up to 960 x 450 mm |
