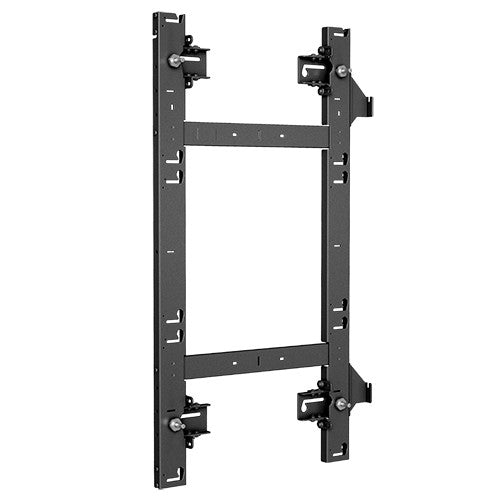

Overview
Built for the Unilumin® UpanelS™ and Barco XT Series. Mounts 3 LED displays. Connects to sides, top and bottom of other TiLED™ UU mounts to create endless video wall configurations. Off-the-shelf solution set means product is ready to ship – no custom lead time or project registration required.
- Modular design supports creative video wall design

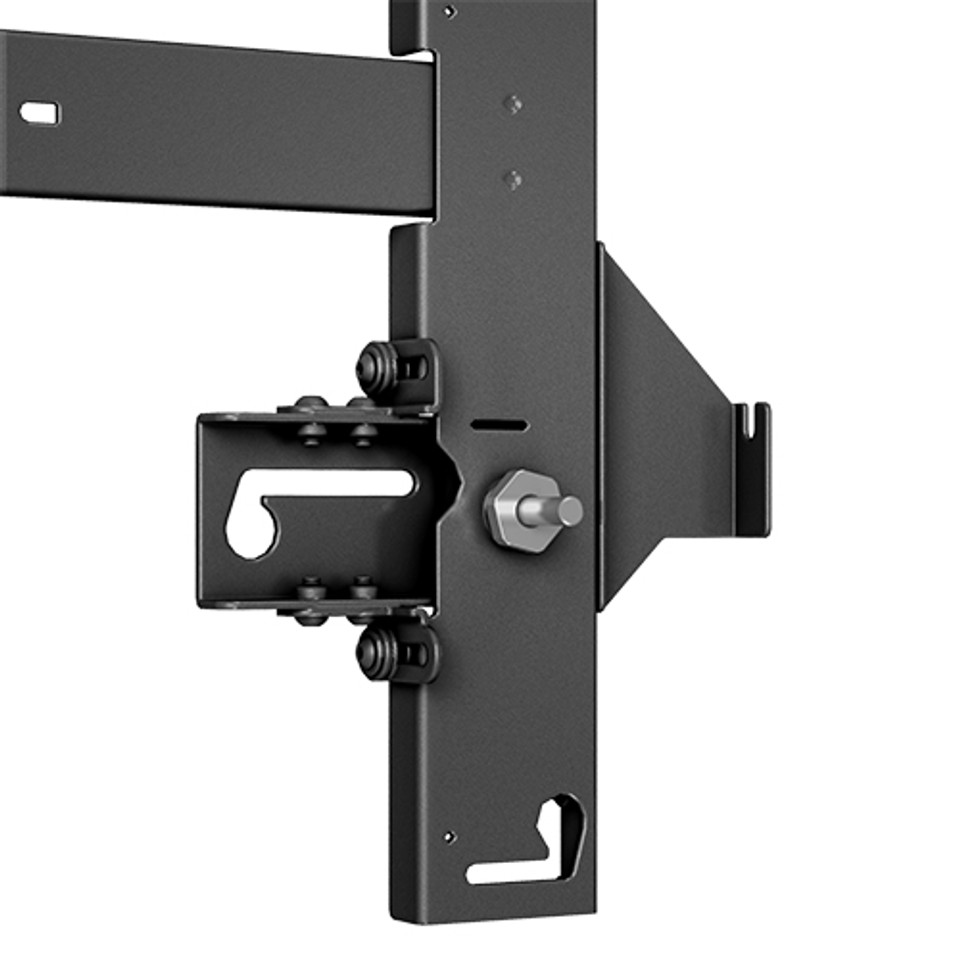

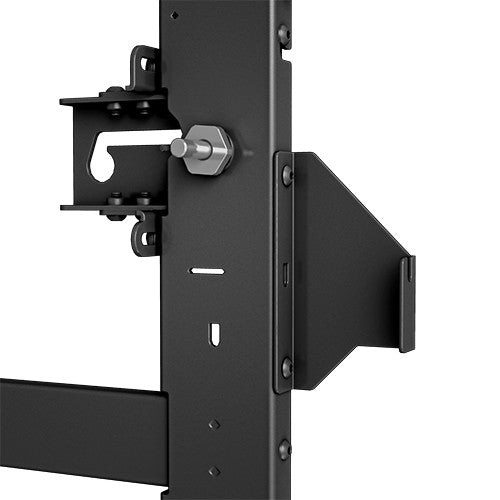

- Integrated plumb adjustment helps compensate for imperfections in the wall
- Keyhole slots allow for fast and easy mount installation
- Offset mounting slots for easy installation and to protect LED sides from damaging friction
- Depth range with display between 3.85-4.85” (98-123 mm) for low-profile result
- Standard, off-the-shelf solution set means product is stockable and ready to ship – no custom lead times
Specification
Dimensions & Measurements
| Depth | 0.98 in (2.5 cm) |
| Height | 40.08 in (101.8 cm) |
| Overall Dimensions | 40.08" x 21.25" x 0.98” (1018 x 540 x 25 mm) |
| Plumb Adjustment | 1” (25 mm) |
| Width | 21.25 in (54 cm) |
Characteristics & Features
| Accessory Type |
|
| Adjustability |
|
| Application | Wall |
| Base Series | XT Series |
| Manufacturer | Barco |
| Number of Displays | 3 |
| Orientation | Landscape |
| Special Features |
|
| VESA Mounting Pattern | Unilumin® UpanelS™ and Barco XT Series |
