Overview

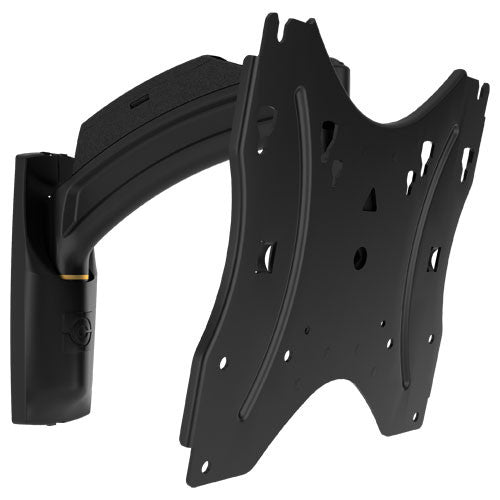

A lightweight, low-profile full-motion wall mount for TVs 10-40”.
- Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 10" (254 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
- Integrated Cable Management Enclosed, tool-free cable cover makes it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Arms can be positioned on the right or left when in the home position.
Specification
Dimensions & Measurements
| Depth | 1.5 in (3.8 cm) |
| Height | 9.3 in (23.6 cm) |
| Overall Dimensions | 9.3" x 14" x 1.5" (237 x 356 x 38mm) |
| Shipping Weight | 6.3 lbs (2.9 kg) |
| Typical Screen Size | 10" - 40" (254mm - 1016mm) |
| Weight Capacity | 35 lbs (15.9 kg) |
| Width | 14 in (35.6 cm) |
Characteristics & Features
| Adjustability | Extension, Swivel, Tilt |
| Application | Wall |
| Color | Black |
| Orientation |
|
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | +0° to -12° |
