Overview

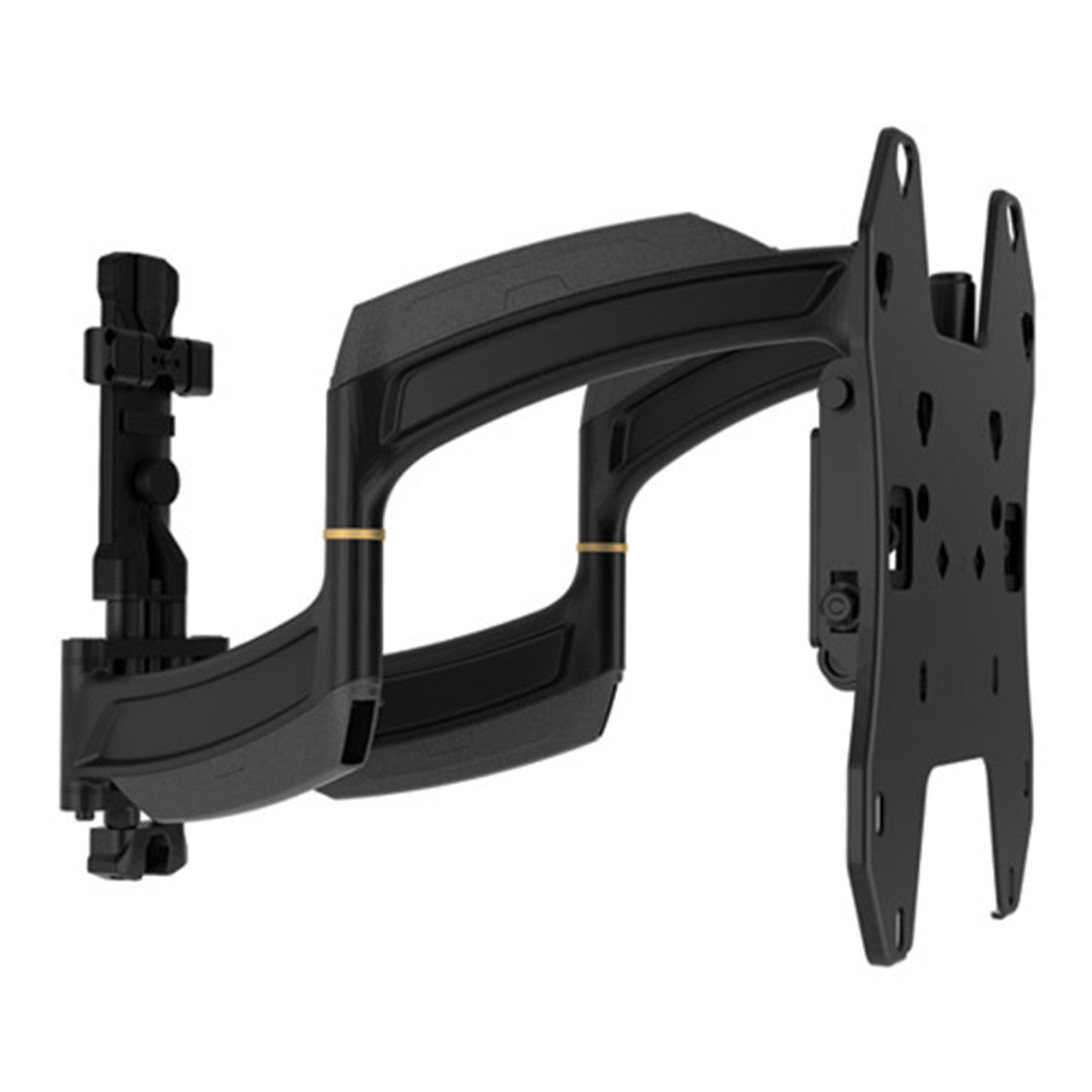

A lightweight, low-profile full-motion wall display mount for TVs 32-65".
Specification
Dimensions & Measurements
| Depth | 1.8 in (4.6 cm) |
| Height | 13.5 in (34.3 cm) |
| Maximum Extension | 18 in (45.7 cm) |
| Minimum Depth | 1.8 in (4.6 cm) |
| Overall Dimensions | 13.5" x 22.6" x 1.8" (343 x 574 x 46mm) |
| Shipping Weight | 23 lbs (10.4 kg) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility In | Single Stud |
| Weight Capacity | 75 lbs (34 kg) |
| Width | 22.6 in (57.4 cm) |
Characteristics & Features
| Adjustability | Extension, Swivel, Tilt, Micro-Adjustable, Height Adjustable, Lateral Shift |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | +0° / -15° |
| VESA Mounting Pattern | 100 x 100mm - 600 x 400mm |
