Overview

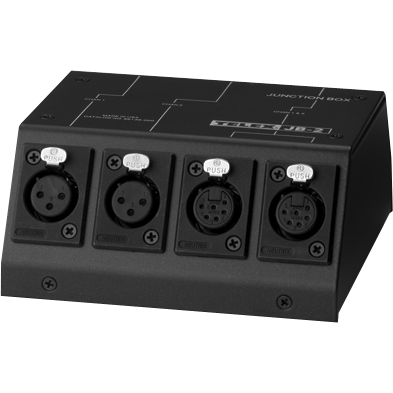

The JB-2 junction box is a breakout box that can take one two-channel cable and split it into two single-channel outputs, or it can take two single-channel cables and combine them to form one single two-channel cable. It includes one male and one female XLR-3 type connector for each channel, and one male and two female XLR-6 type connectors for channels one and two combined.
Specifications
| Color | Black |
| Depth | 5.04" (128 mm) |
| Height | 2.44" (62 mm) |
| Weight | 15.68 oz (444.52 g) |
| Width | 4.88" (124 mm) |
