Overview

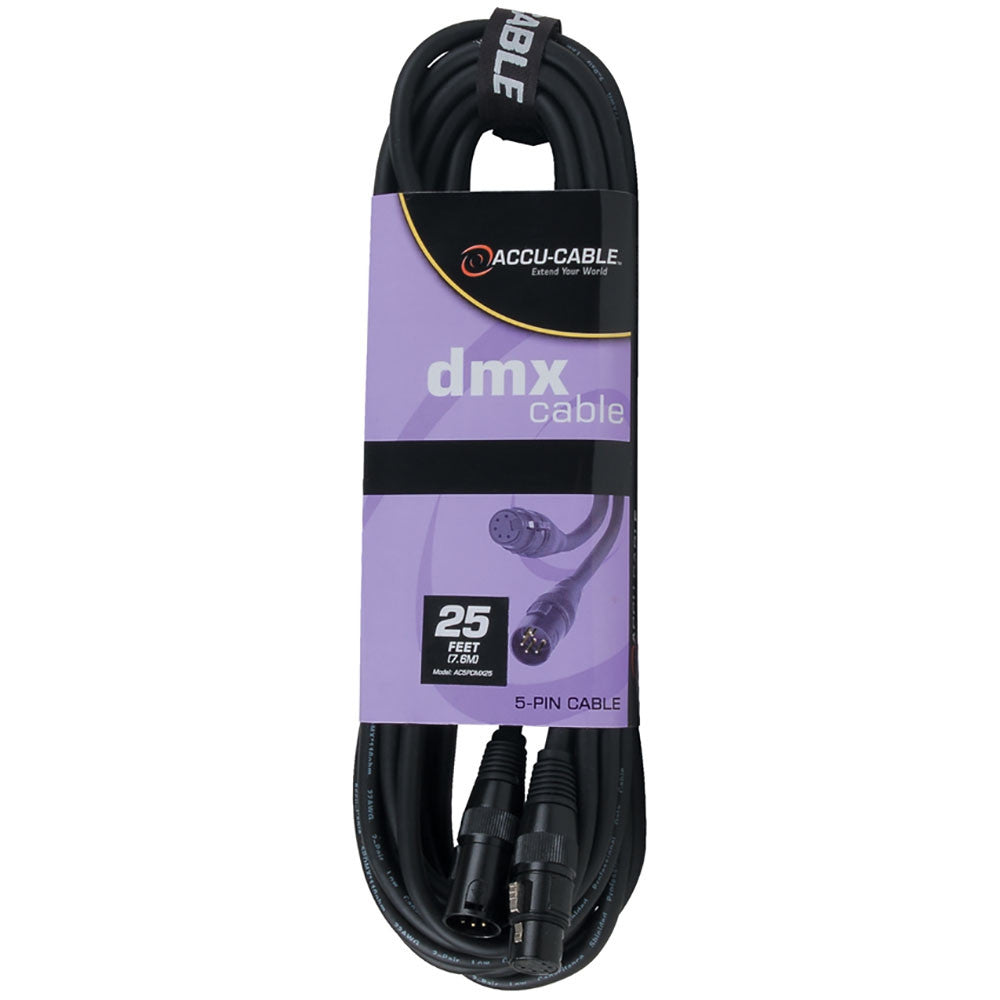

ACCU CABLE™ 5pin DMX cable with 22 AWG stranded (0.15 x 19) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket. Available in 25. ( 82 meter) lengths.
Features
-
AC5PDMX25 - 25 ft (82m) 5pin DMX Cable
-
Nominal Characteristic Impedance: 110 Ohms
-
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t
-
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
-
Nominal Velocity of Propagation: 76%
-
Nominal Delay: 1.6 Nanoseconds per foot
-
Nominal Conductor DC Resistance @ 20°C: 24 Ohms/1000 ft
-
Individual Pair Nominal Shield DC Resistance @ 20°C: 15 Ohms/1000 ft
-
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MHz) dB/100 ft.
-
Maximum Recommended Current: 2.1 amps per conductor @ 25°C
Specifications
| Number of Pairs | 2 |
| Total Number of Conductors | 4 |
| AWG | 22 |
| Stranding | 0.15 x 19 |
| Diameter | .0354" |
| Material | TC-Tinned Copper |
| Trade Name | Duofoil® |
| Type | Tape/Braid |
| Material | PE Polyethylene |
| Diameter | .055" |
| Pair Color Code | Green/Black/Red/White |
