Overview

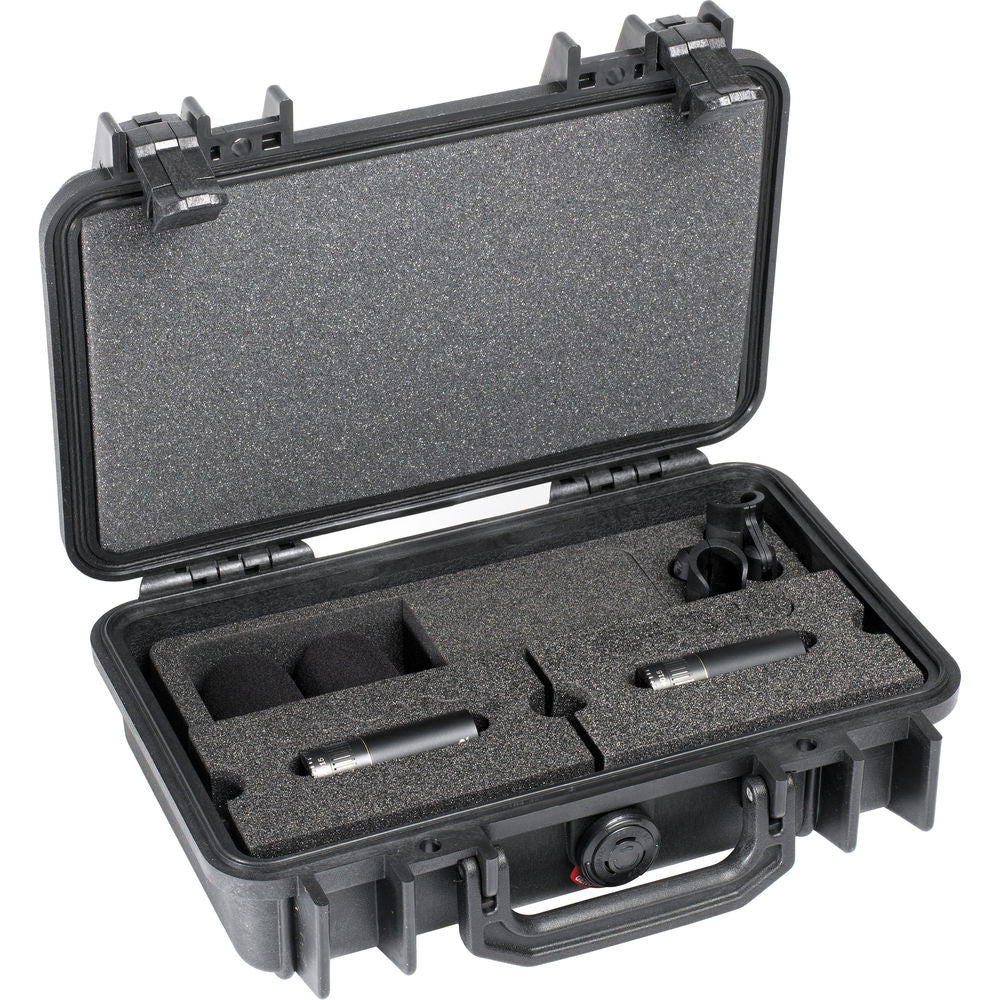

The ST4015C Stereo Pair with 4015C Compact Wide Cardioid Microphones from DPA consists of two matched 4015C Wide Cardioid Microphones, two holders, two windscreens, and a Peli Carrying Case. The microphones are matched within ±1 dB on both frequency response and sensitivity to provide accurate sonic reproduction.
Specifications
- Directional pattern: Cardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Frequency range, ± 2 dB, at 30 cm: 40 Hz - 20 kHz
- Sensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
- Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
- Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
- Dynamic range: Typ. 121 dB
- Max. SPL, peak before clipping: 152 dB
- Output impedance: < 200 ohm
- Minimum load impedance: 2 kohm
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common Mode Rejection Ratio (CMRR): > 50 dB
- Power supply (for full specifications): 48 V Phantom power (± 4 V)
- Current consumption: 2.8 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Color: Matte black
