EAW 2048841-90
  • EAW 2048841-90
EAW 2048841-90

EAW 2048841-90

MSRP: $3,100.00
MAP: $0.00

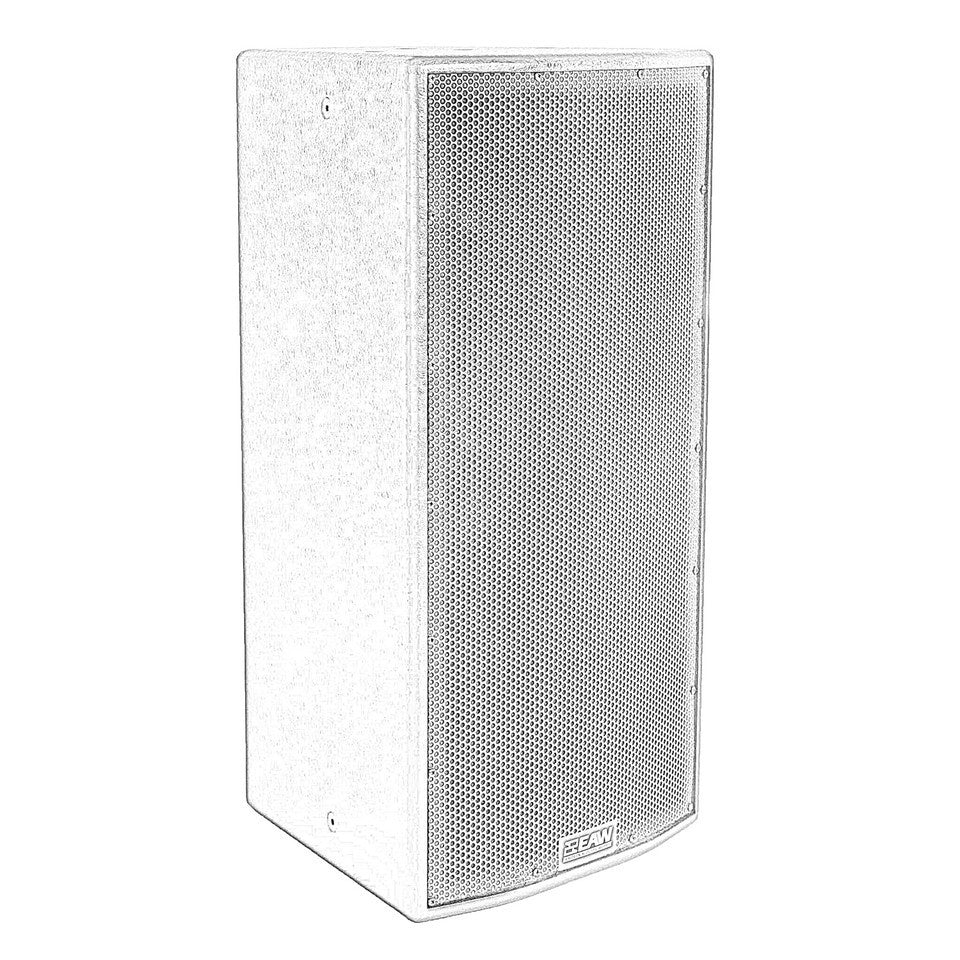

Passive 12" 2-Way Bi-Ampable Speaker. 1 x 12" LF and 1 x 1.4" Exit 3" Voice Coil HF. Horz: 90˚ Vert: 60˚. White. Weather Protected

SKU: EAW-2048841-90

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Specifications

  • Frequency Response: 65hz – 20khz
  • Max SPL: 138 dB
  • Operating Mode
    • Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
    • External Signal Processing: High pass filter; DSP w/2-way filters
  • Subsystem
    • LF – 1x 12 in. cone
    • HF – 1x 1.4 in. exit, 3 in. voice coil compression driver
  • Nominal Beamwidth
    • Horizontal: 90
    • Vertical: 60
  • Power Handling
    • Full Range: 600W @ 8ohms
    • LF: 600W @ 8ohms
    • HF: 150W @ 8ohms
  • Connections: Barrier Strip
  • Dimensions
    • Height: 30 in (762 mm)
    • Width: 15.54 in (394.7 mm)
    • Depth: 14.75 in (374.7 mm)
  • Weight: 60 lbs (27.2 kg)
