EAW 2071736
  • EAW 2071736
EAW 2071736

EAW 2071736

MSRP: $6,338.00
MAP: $0.00

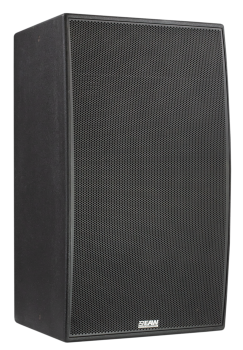

Passive 15" 3-Way Bi-Amp Speaker. 2 x 15" 4" Voice Coil LF, 1 x 2" Exit 4" Voice Coil MF and 1 x 2" Exit 2.5" Voice Coil HF. Horz: 60˚ Vert: 45˚. Black

SKU: EAW-2071736

Only Approved Dealers can purchase.
Please Sign In.

or Become A Dealer to gain access today.

Overview

Nominal beamwidth 60° x 45°

Features include:

  • High output bi-amplified two-way performance
  • High performance coaxial compression driver with extended bandwidth
  • Precision EAW signature broadband pattern control
  • Flexible mounting, weather protection color options

Specifications

  • Frequency Response: 45Hz – 18kHz
  • Max SPL: 145dB
  • Operating Mode: Bi-Amp
  • Subsystem
    • LF Transducer, Loading 2 x 15in Cone, 4in Voice Coil
    • MF Transducer, Loading 1 x 2in Exit, 4in Voice Coil, Compression Midrange, Horn Loaded
    • HF Transducer, Loading 1 x 2in Exit, 2.5in Voice Coil, Compression driver, Horn Loaded
  • Nominal Beamwidth: 60° Horizontal x 45° Vertical
  • Power Handling
    • LF – 1600W @ 4ohms
    • MF/HF – 250W @ 8ohms
  • Connections: Terminal block
  • Dimensions: 37H x 23W x 24D (935mm x 580mm x 600mm)
  • Weight: 130lbs (59kg)
