Overview

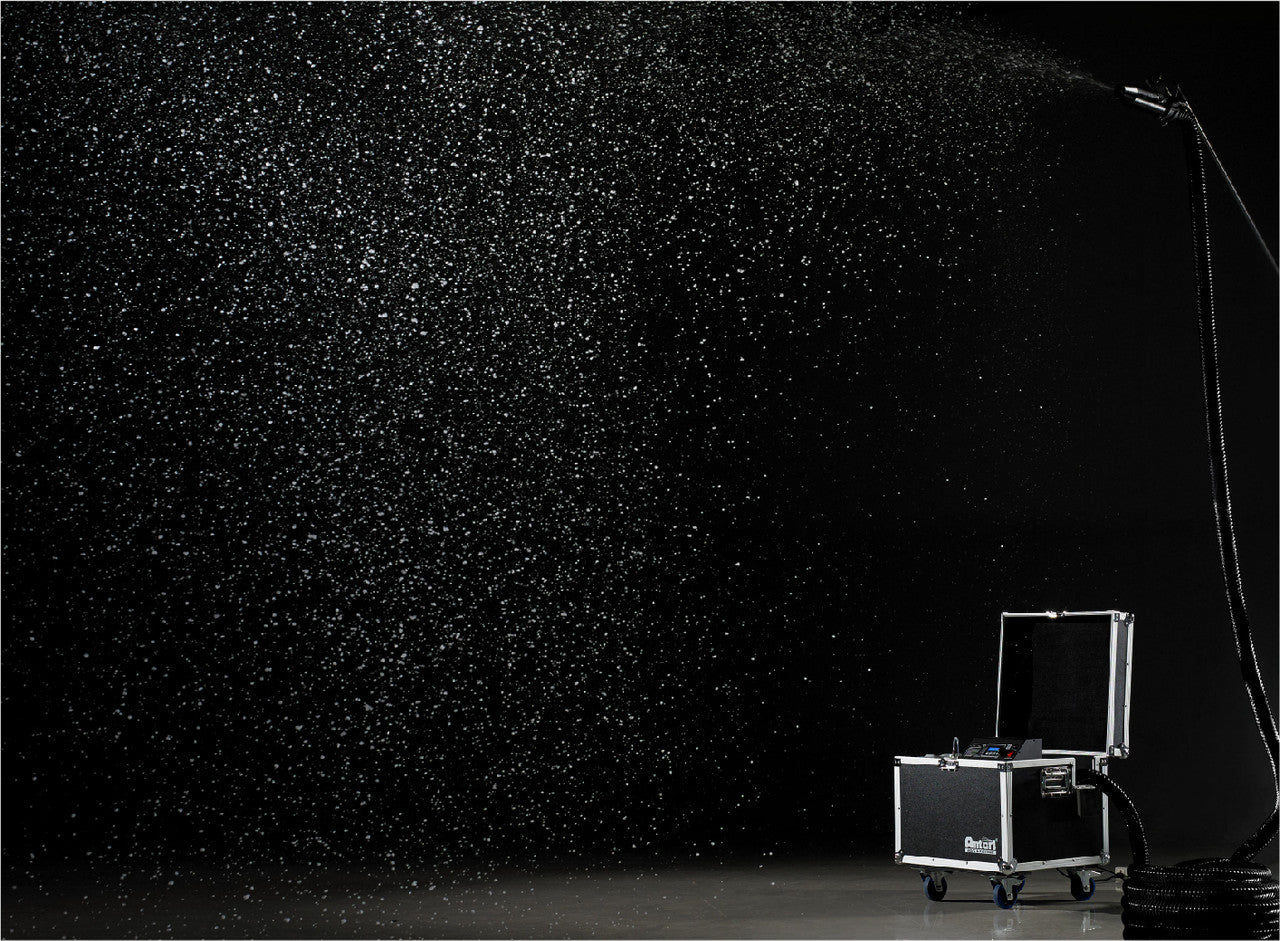

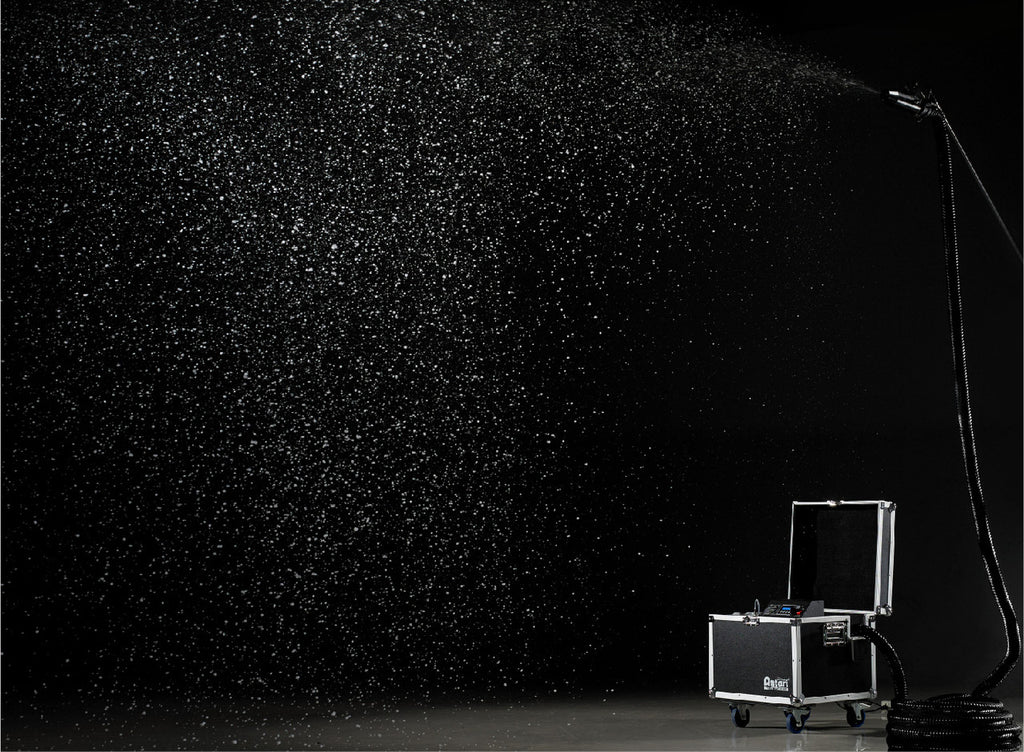

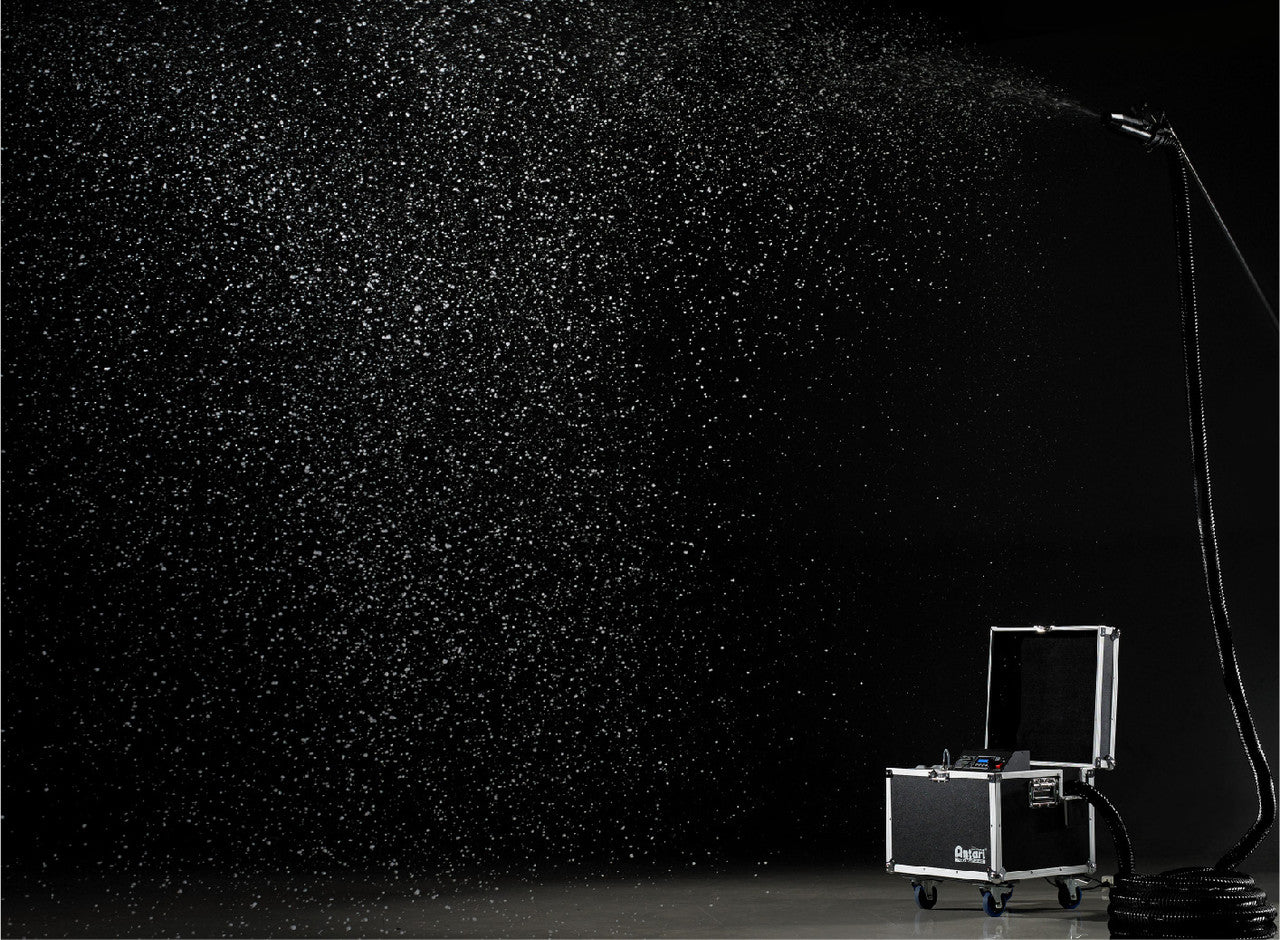

Meet Antari’s latest snow machine: The S-500.

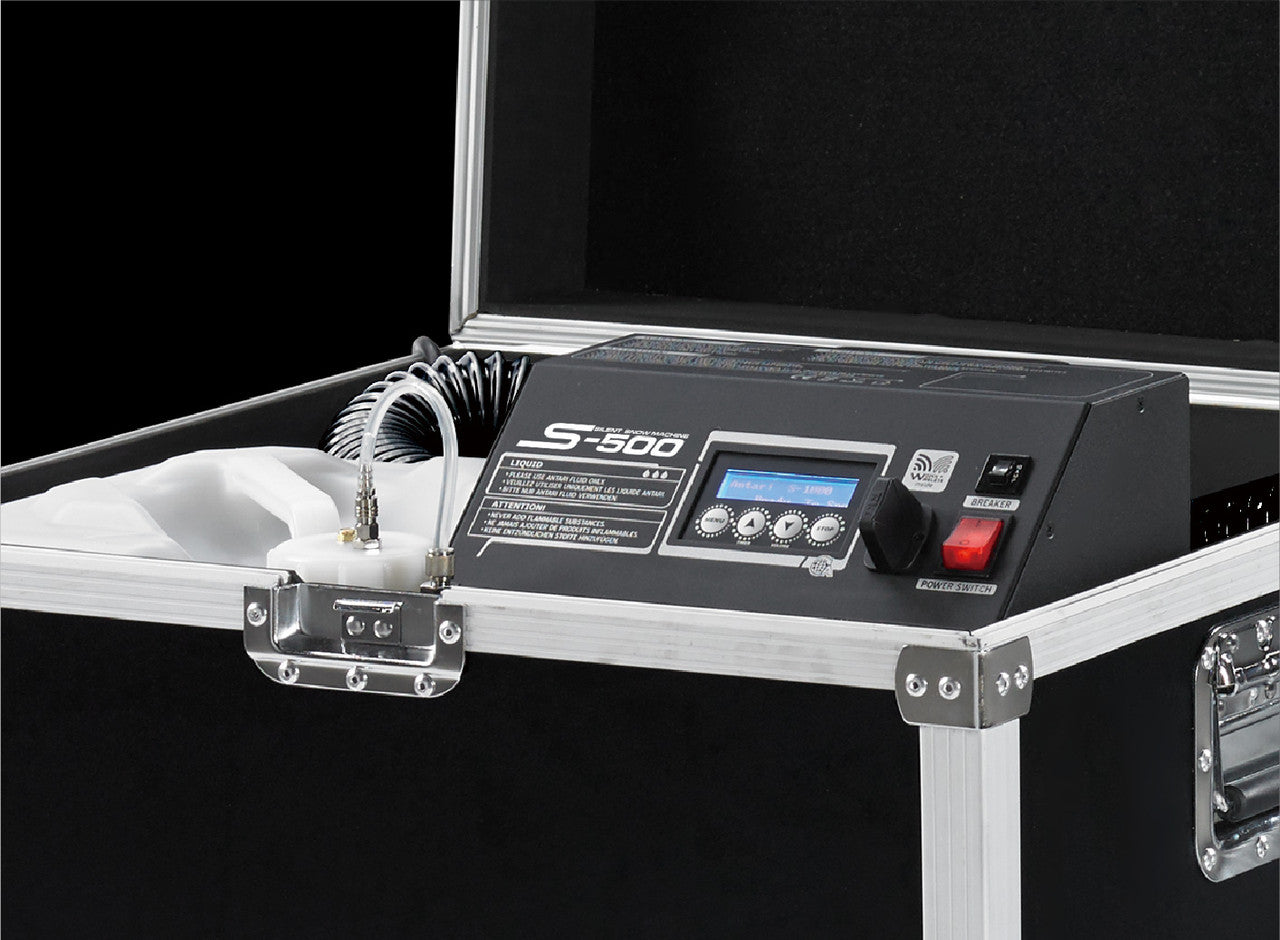

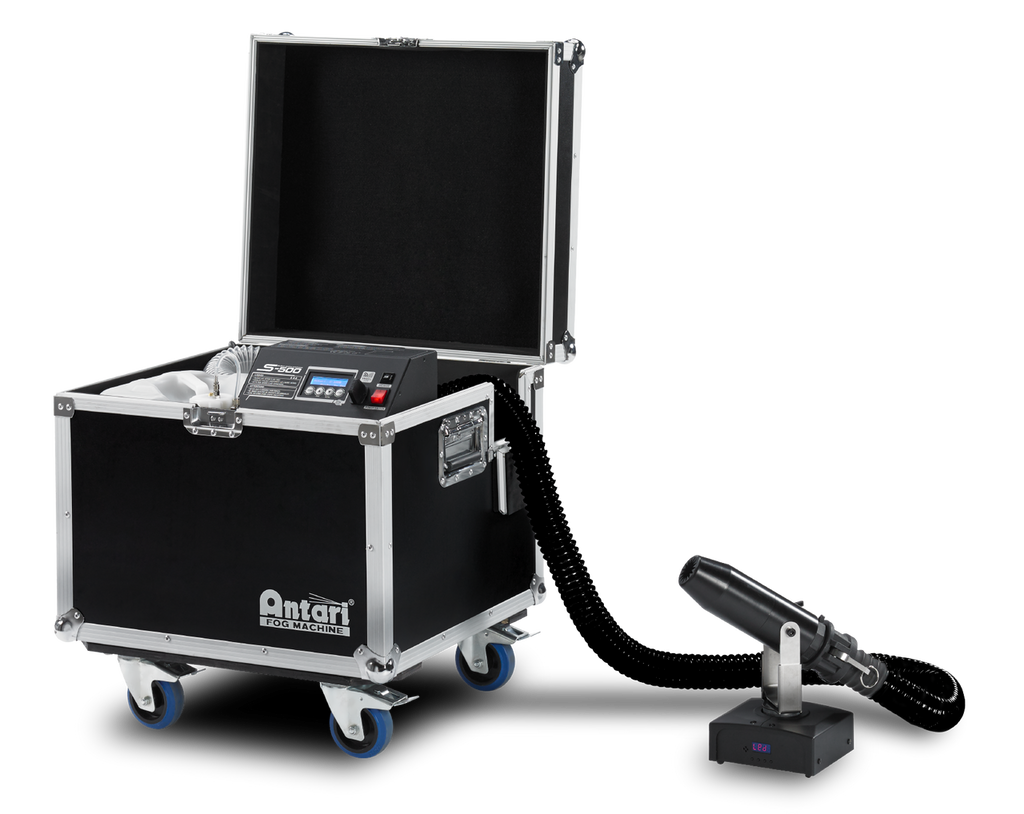

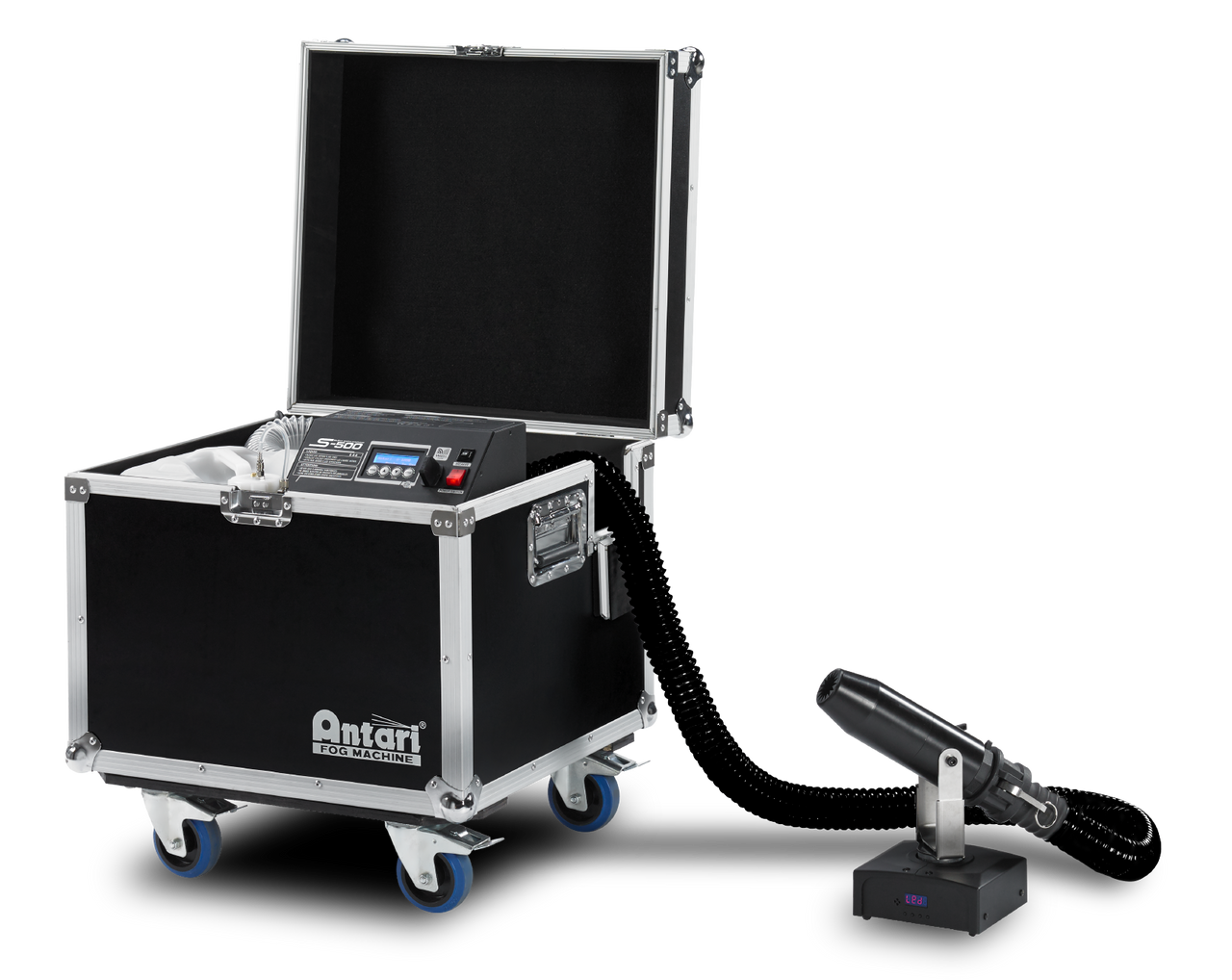

Its main body and 20-Liter fluid tank are placed inside a road case with wheels.

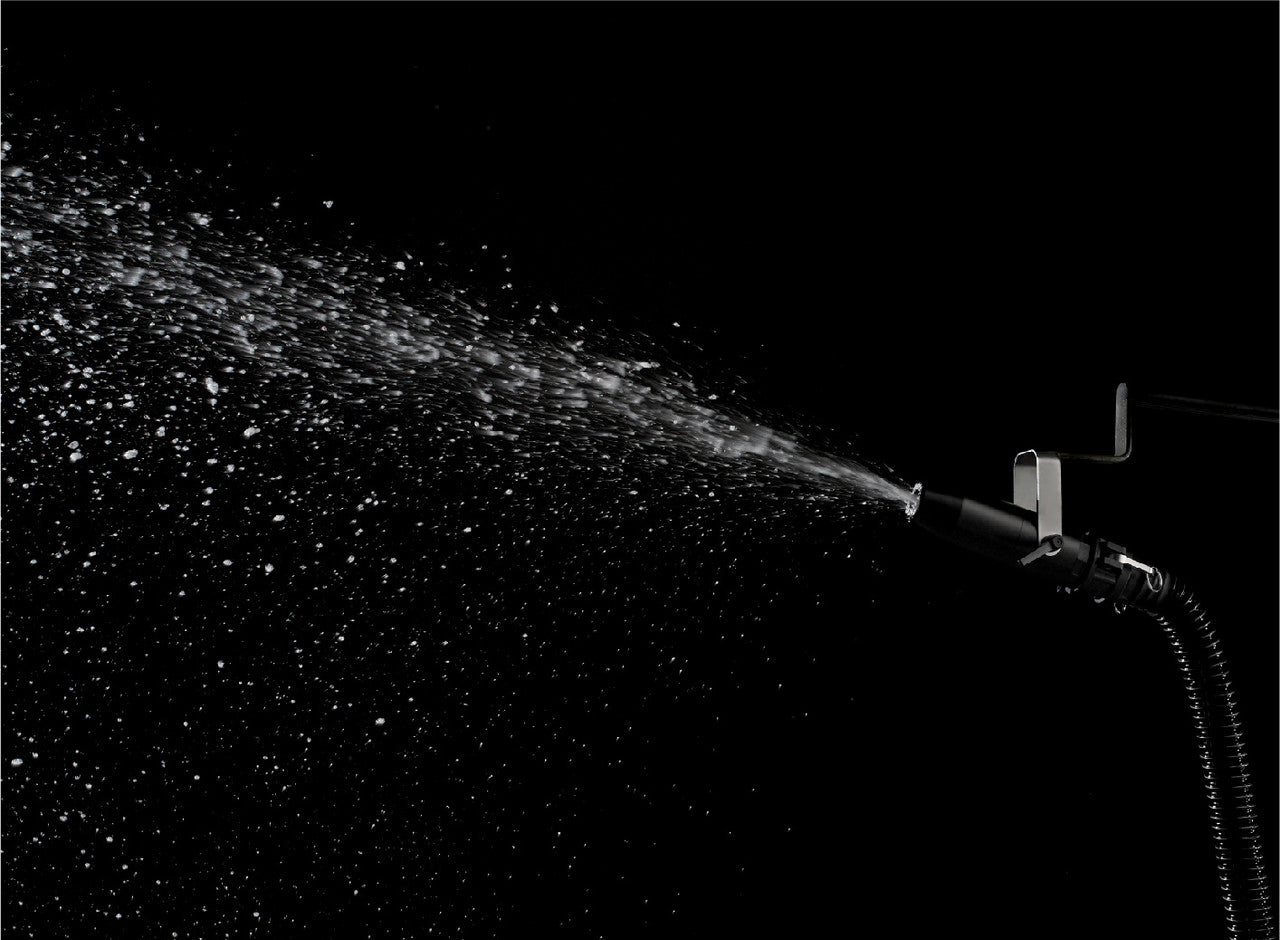

The nozzle is connected by a 10-Meter long hose and it can be easily rigged on a standard truss or tripod stand. Air and snow fluids are delivered to nozzle via the 10-Meter hose. Users can adjust the air volume and fluid flow rate to get the right snow effects needed, from fine snow to blizzards.
The functions of S-500L are exactly same as S-500. The only two differences between S-500L and S-500 are S-500L comes with 20-Meter hose in a larger case. The “L” of S-500L stands for “Large”.
‧Optional PM-1 pan motor with 120 degrees pan to increase coverage area
‧Blower built into flight case keep noise level at minimum
‧Extreme high output
‧Adjustable snowflake size
‧Road case for outdoor operation and provide extra protectione
SPECIFICATION
| Rated voltage |
US model : AC 100-120V, 50/60Hz 7.5A EU model : AC 220-240V, 50/60Hz 3.8A |
| Rated power |
120V 900W 240V 880W |
| Fluid consumption | 400 ml/min |
| Fluid tank capacity | 20 Liters (5.28 gallon) |
| Compatible fluid |
Antari SL-20N Snow & Foam Fluid (New Formula) Antari SL-20AN Premium Snow Fluid (New Formula) Antari SL-20H Super Dry Snow Fluid Antari SL-20C Anti-Freezing Snow Fluid Antari SL-20UV UV Snow Fluid |
| Ambient temp/ range | 5°C – 40°C (41°F – 104°F) |
| Control |
Manual、Timer、DMX 512 Wireless (Optional)、Wireless DMX (Optional) |
| DMX channels | 2 channels |
| Connection |
Neutrik Powercon (Power) XLR 3-pin and 5-pin (DMX) |
| Included accessories |
S-500 : ST-500-HOSE 10 Meter Extension Hose S-500L : ST-500-HOSE + ST-10 10 Meter Extension Hose |
| Optional accessories |
TIMO-W-DMX-PCBR Wireless DMX 512 WTR-20 Wireless Remote WTR-70 Wireless DMX 512 and Remote SC-3 Cable Remote ST-10 10 Meter Extension Hose PM-1 Pan Motor |
| Dimension |
S-500 : L 592 W 551 H 651 mm (L 23.31 W 21.69 H 25.63 inch) S-500L : L 803 W 603 H 651 mm (L 31.61 W 23.74 H 25.63 inch) |
| Weight |
S-500 : 37.2 kg ( 82.01 lbs ) S-500L : 46.4 kg ( 102.29 lbs ) |
