Overview

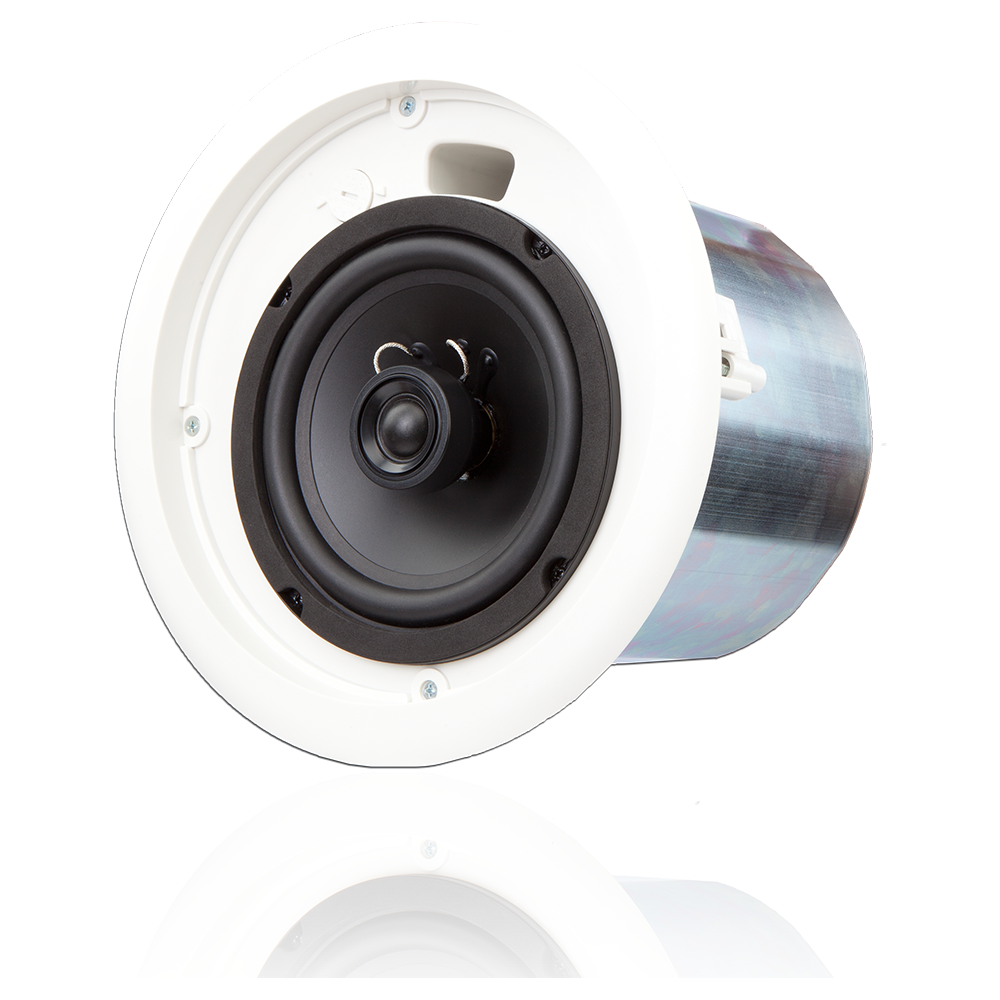

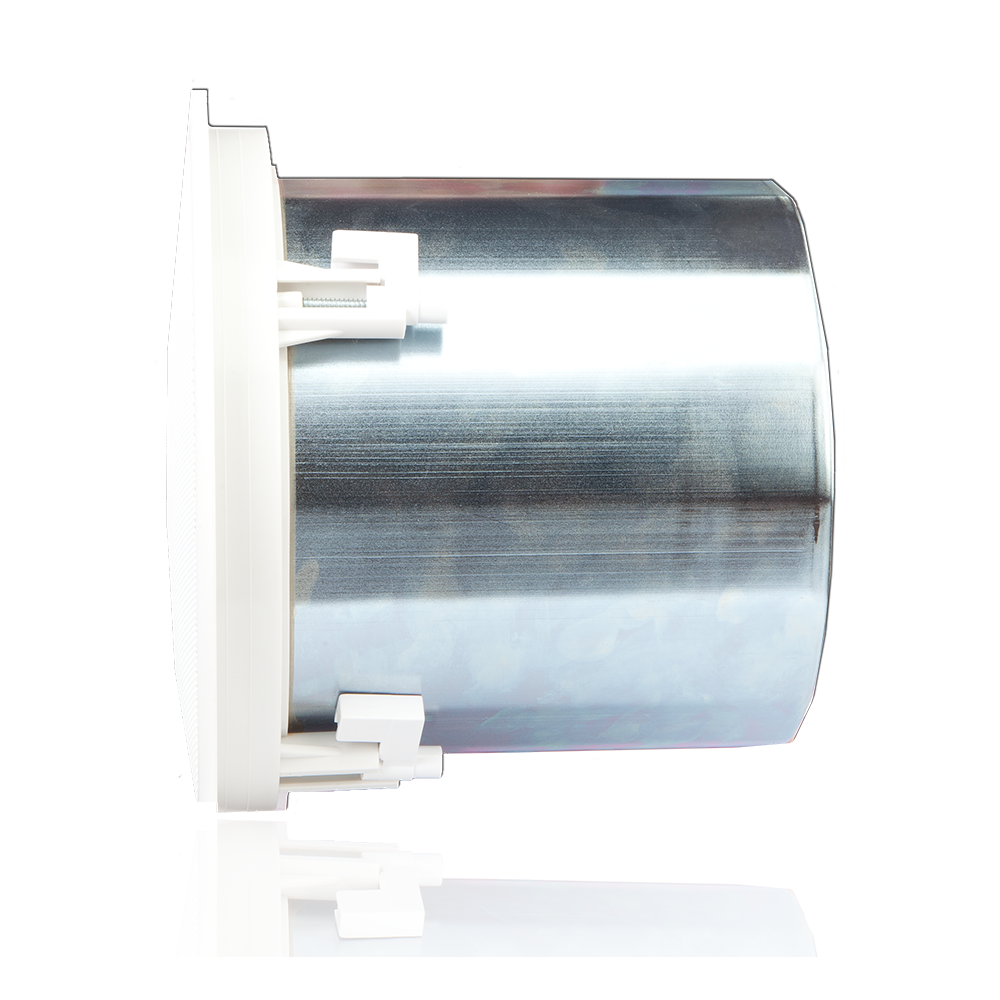

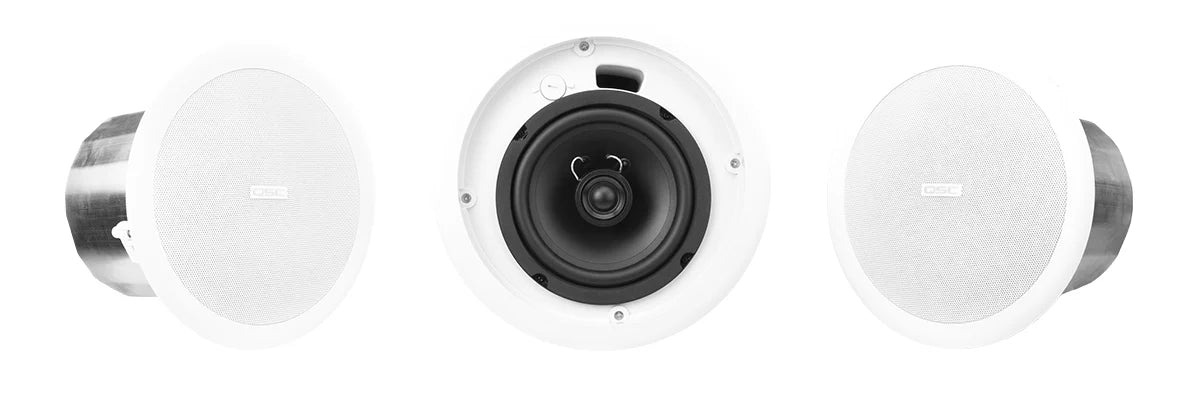

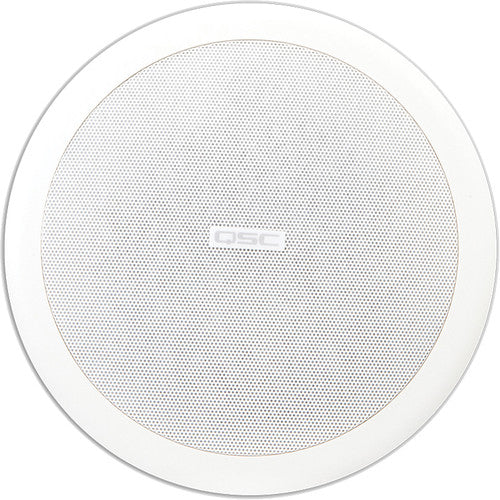

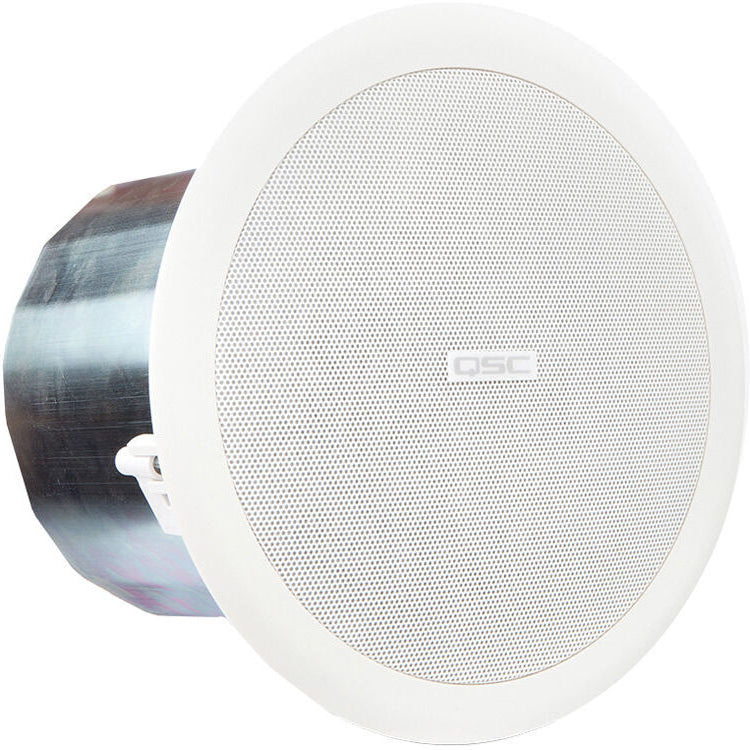

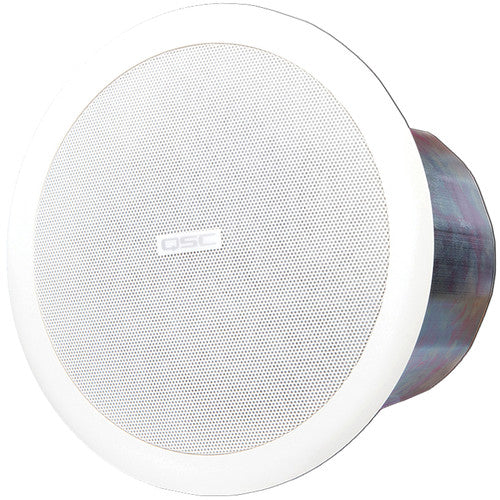

QSC AC-C6T 6.5-inch 2-way, 110° conical
Features
- High quality 6.5-inch 2-way system provides exceptional clarity through the critical voice range.
- Low-saturation 70V/100V transformers with 8-ohm bypass.

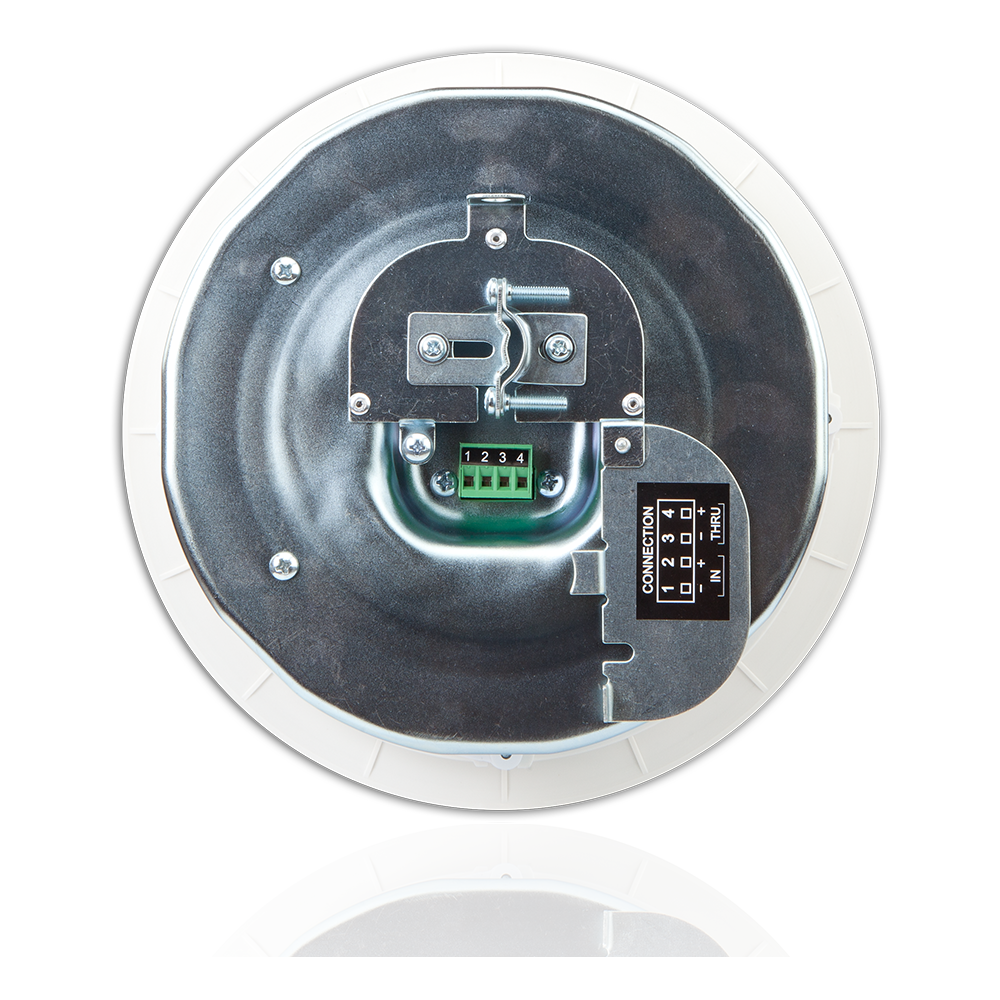

- 4-pole Euroblock connector for easy system wiring.
- Intrinsic Correction™ voicings available via Q-SYS Platform.
- White (RAL 9010).
- Complete EASE, CAD, and BIM information available online.
Specifications
- Effective frequency range: 65 Hz to 20 kHz
- Rated noise power / voltage: 30 watts / 15.5 volts (rms)
- Broad-band sensitivity: 89 dB SPL
- Coverage angle (-6 dB): 110° (500 Hz to 5 kHz)
- Maximum continuous SPL: 104 dB
- Maximum peak SPL: 110 dB
- Rated impedance: 8 ohms
-
Transformer taps:
- 70 V: 30, 15, 7.5, 3.7, 1.9 watts and 8-ohm bypass
- 100 V: 30, 15, 7.5, 3.8 watts and 8-ohm bypass
- HF Transducer: 0.86-inch silk dome tweeter, coaxially mounted
- LF Transducer: 6.5-inch polypropylene cone with butyl rubber surround
- Input connector type: Euroblock connector with parallel output terminals
- Baffle material: Painted ABS polymer
- Grille material: Powder coated steel
- Back can material: Galvanized steel
- Testing: Listed UL1480, UL2043 safe for use in air handling space
- Net weight: 7.6 lb / 3.5 kg
- Product dimensions: 10.24-inch × 8.4-inch (260 × 213 mm)
- Cut-out dimensions: 9-inch (229 mm)
- Ceiling capture thickness: 0.25-inch to 1.5-inch (6.35 to 38.1 mm)
- Shipping weight: 21 lb / 9.5 kg pair packed
- Shipping dimensions: 24.5-inch × 12.5-inch × 12.8-inch (622 × 318 × 324 mm)
- Included accessories: Rails and C-ring for ceiling tile installation
- Optional accessories: AC-MR6 mud ring for sheet rock installation
