Overview

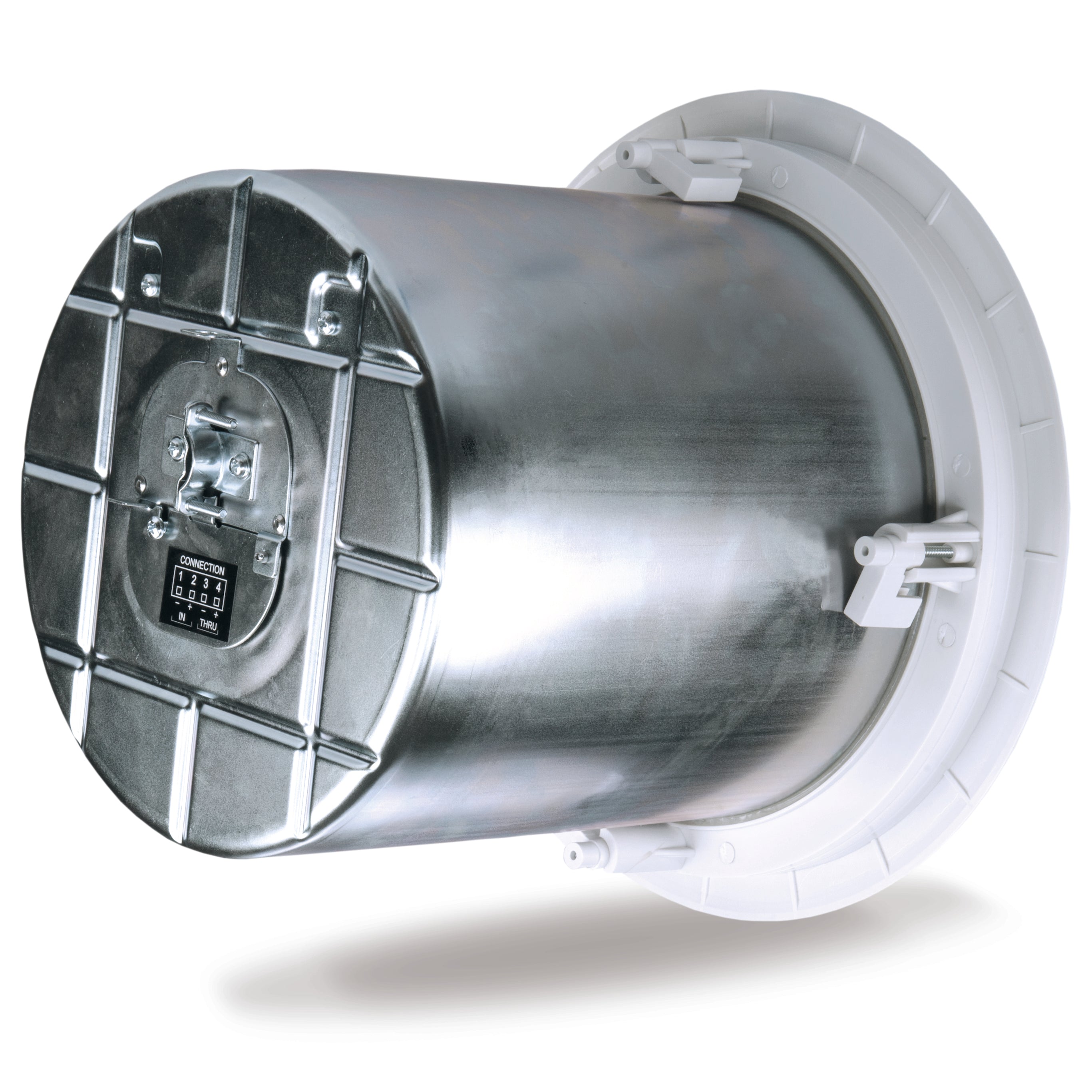

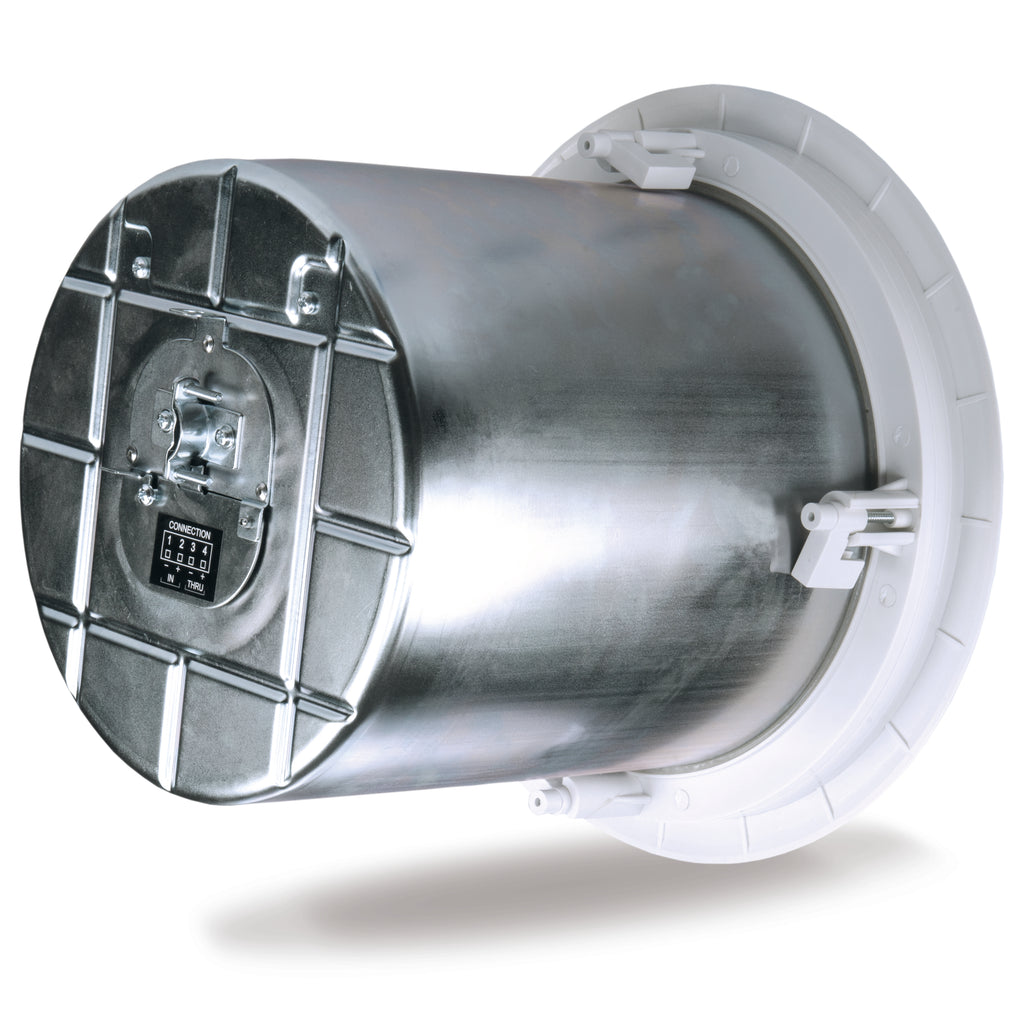

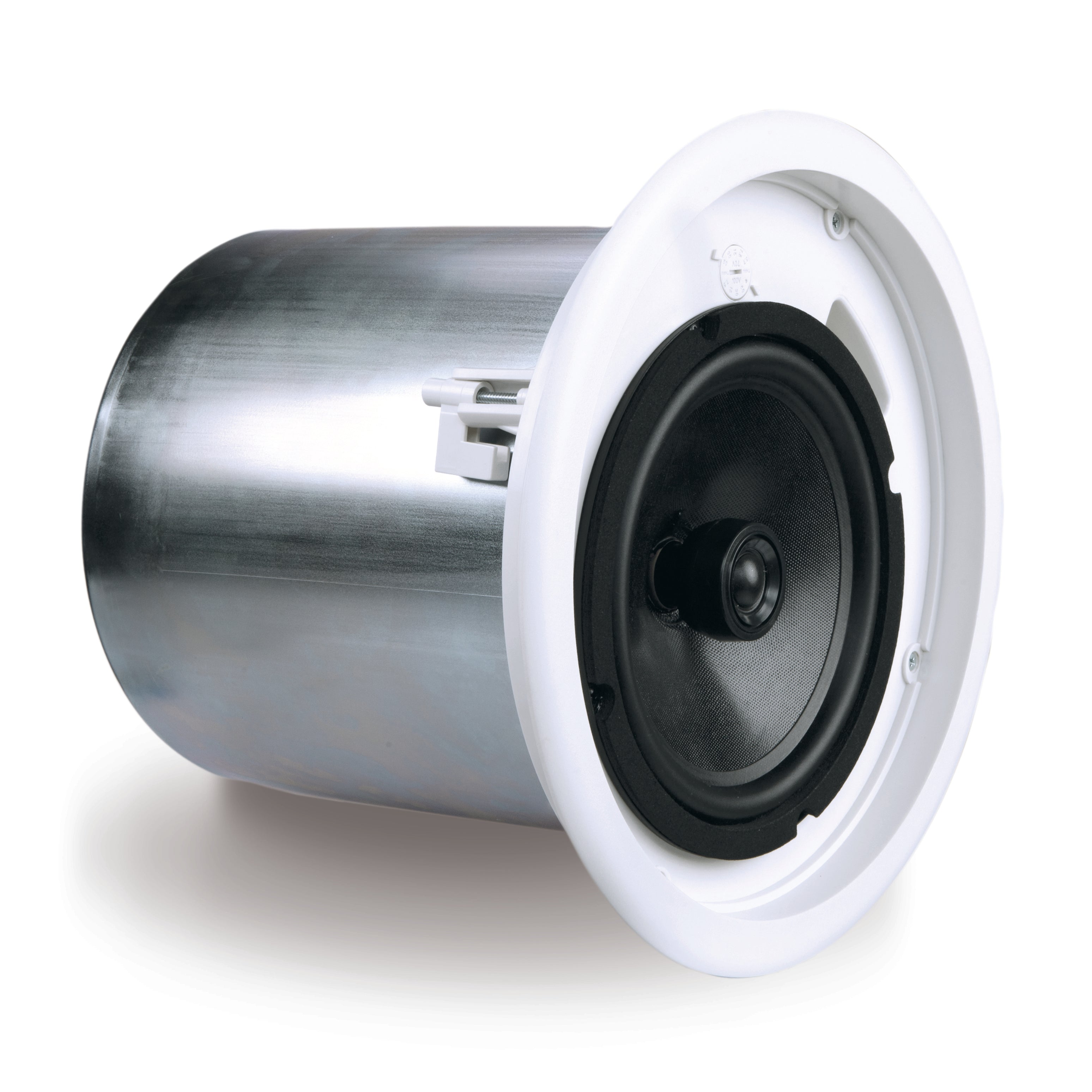

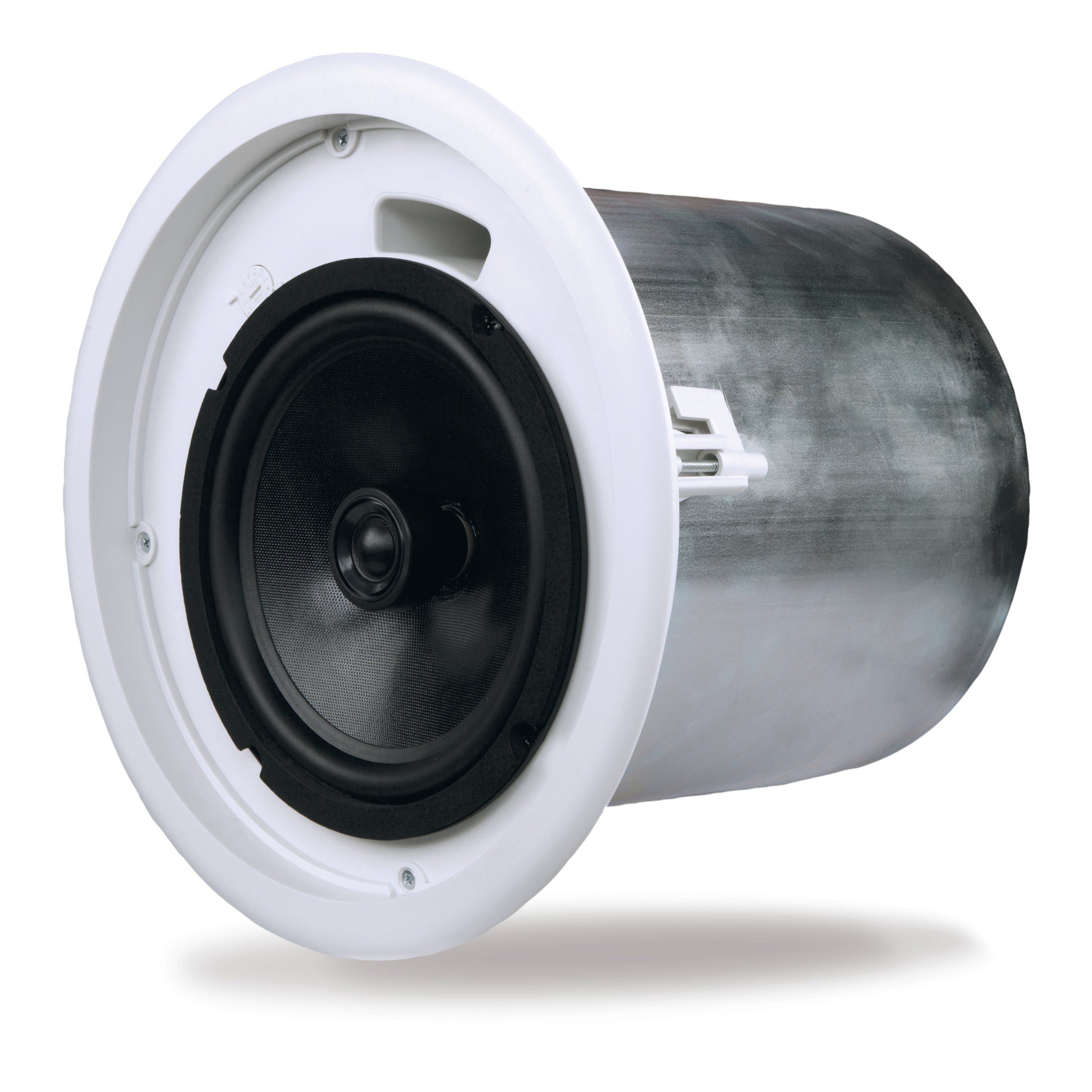

QSC AC-C8T 8-inch 2-way, 100° conical
Features
- High quality transducers provide exceptional clarity through the critical voice range.
- Improved musicality often not seen in typical BGM class products.
- Ported baffle for increased low frequency extension down to 52 Hz.
- Low saturation 70/100V transformers with 8 ohm bypass.
- 4-pole Euroblock connector eases system wiring.
- Intrinsic Correction™ voicings available via Q-SYS Platform.
- White (RAL 9010).
- Complete EASE, CF2, CAD, & BIM information available online
Specifications
- Effective frequency range: 52 Hz – 20 kHz
- Rated noise power / voltage: 80 watts / 25.3 volts (rms)
- Broad-band sensitivity: 89 dB SPL
- Coverage angle (-6 dB): 100° (500 Hz to 5 kHz)
- Maximum continuous SPL: 108 dB
- Maximum peak SPL: 114 dB
- Rated impedance: 8 ohms
- Transformer taps:
- 70 V: 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass
- 100V: 60, 30, 15, 7.5 watts and 8-ohm bypass

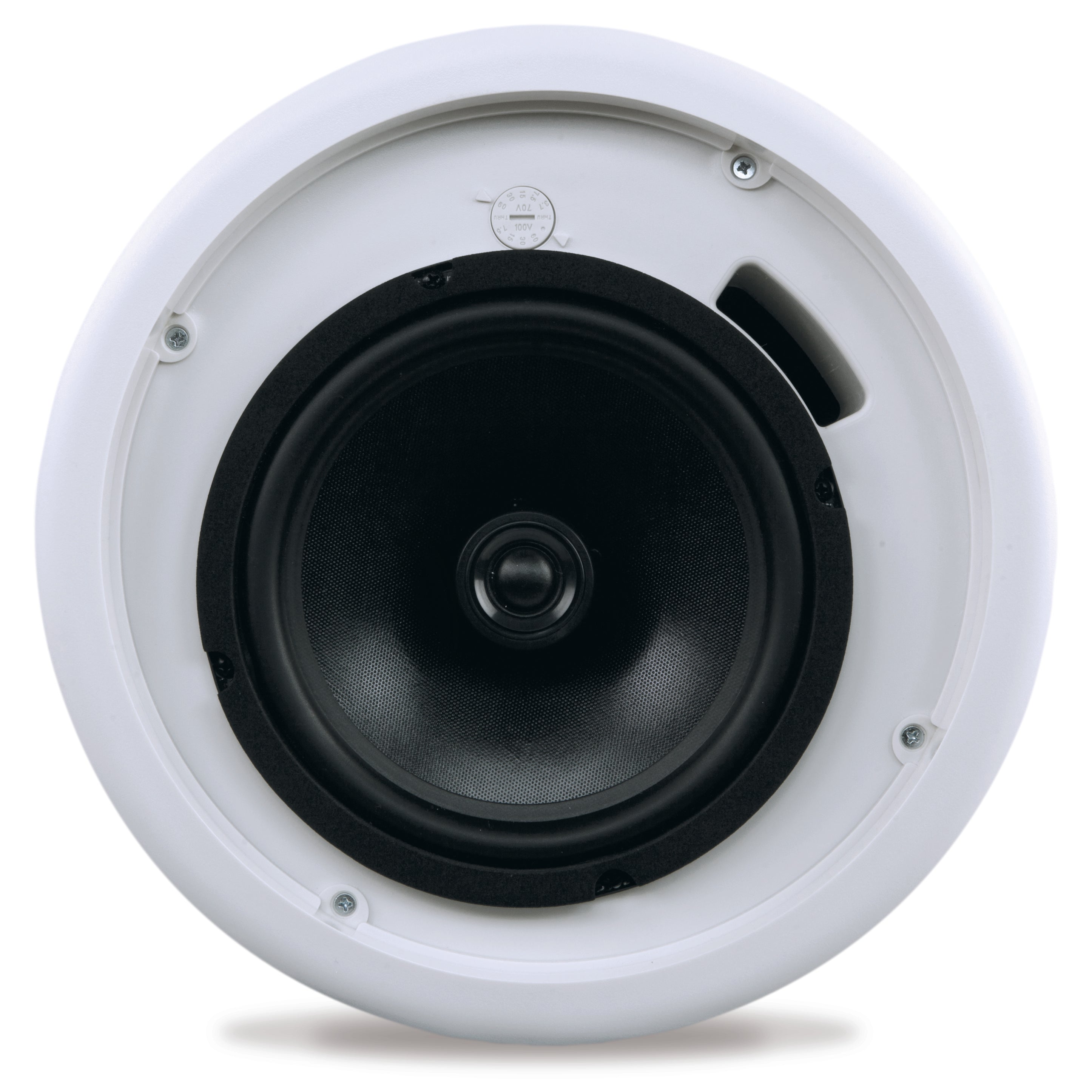

- HF Transducer: 22 mm (.86 in) silk dome tweeter,coaxially mounted
- LF Transducer: 210 mm (8 in) Polypropylene cone withbutyl rubber surround

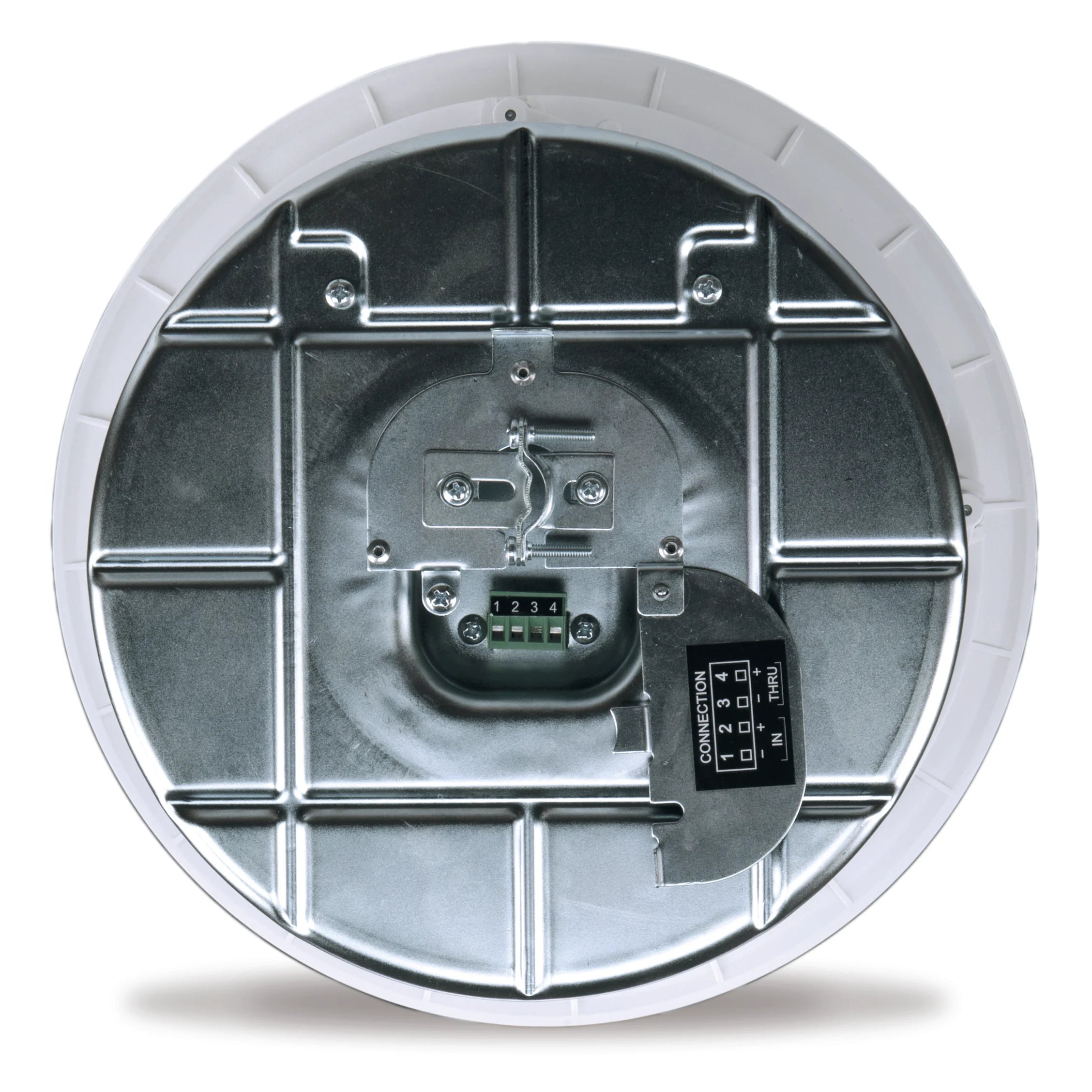

- Input connector type: Euroblock connector withparallel output terminals
- Baffle material: Painted ABS polymer

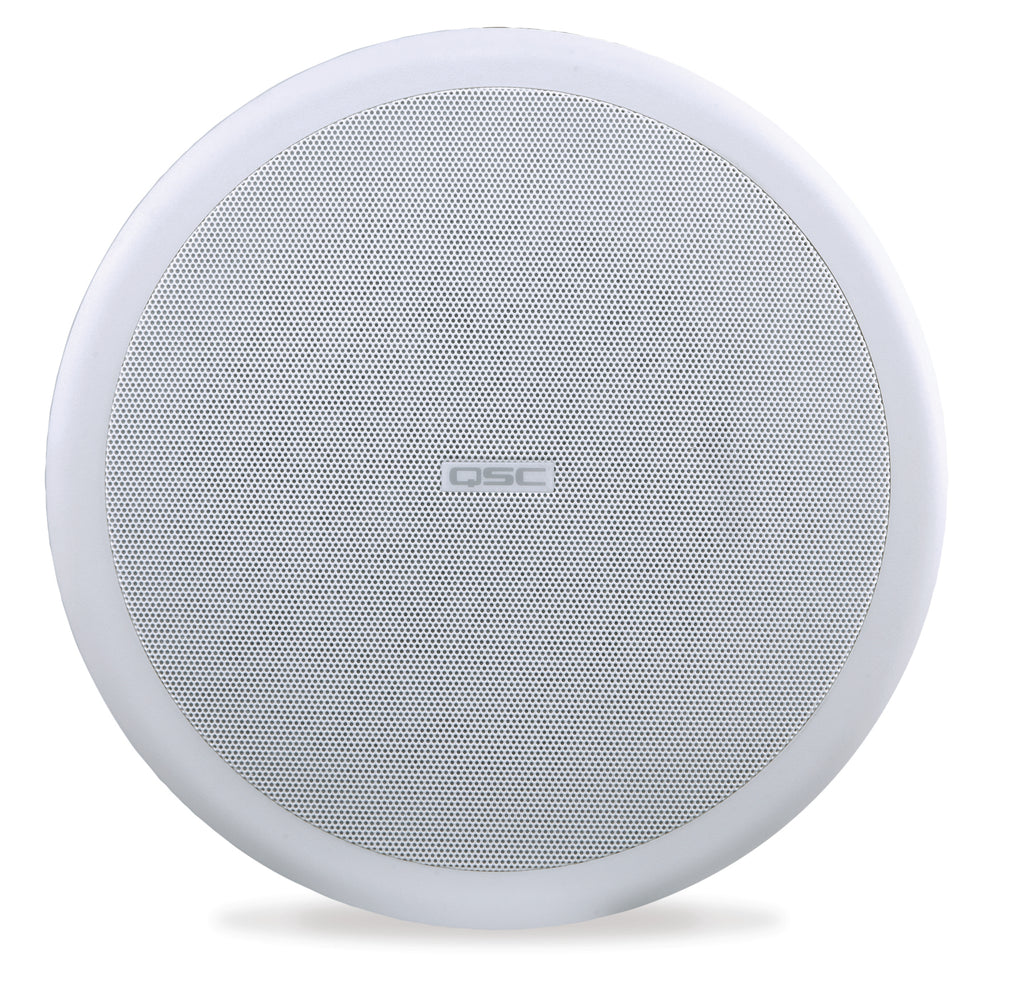

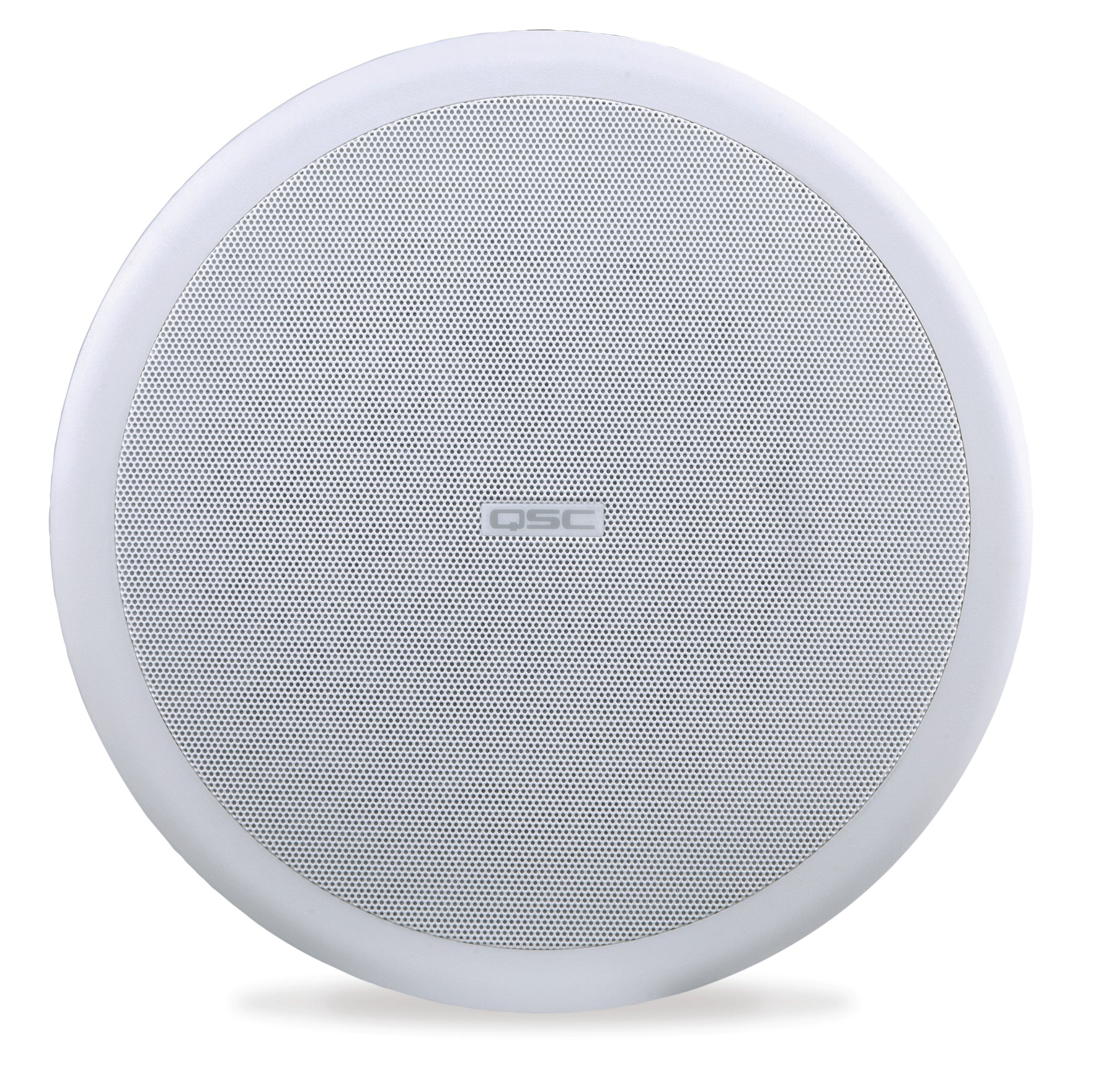

- Grille material: Painted steel

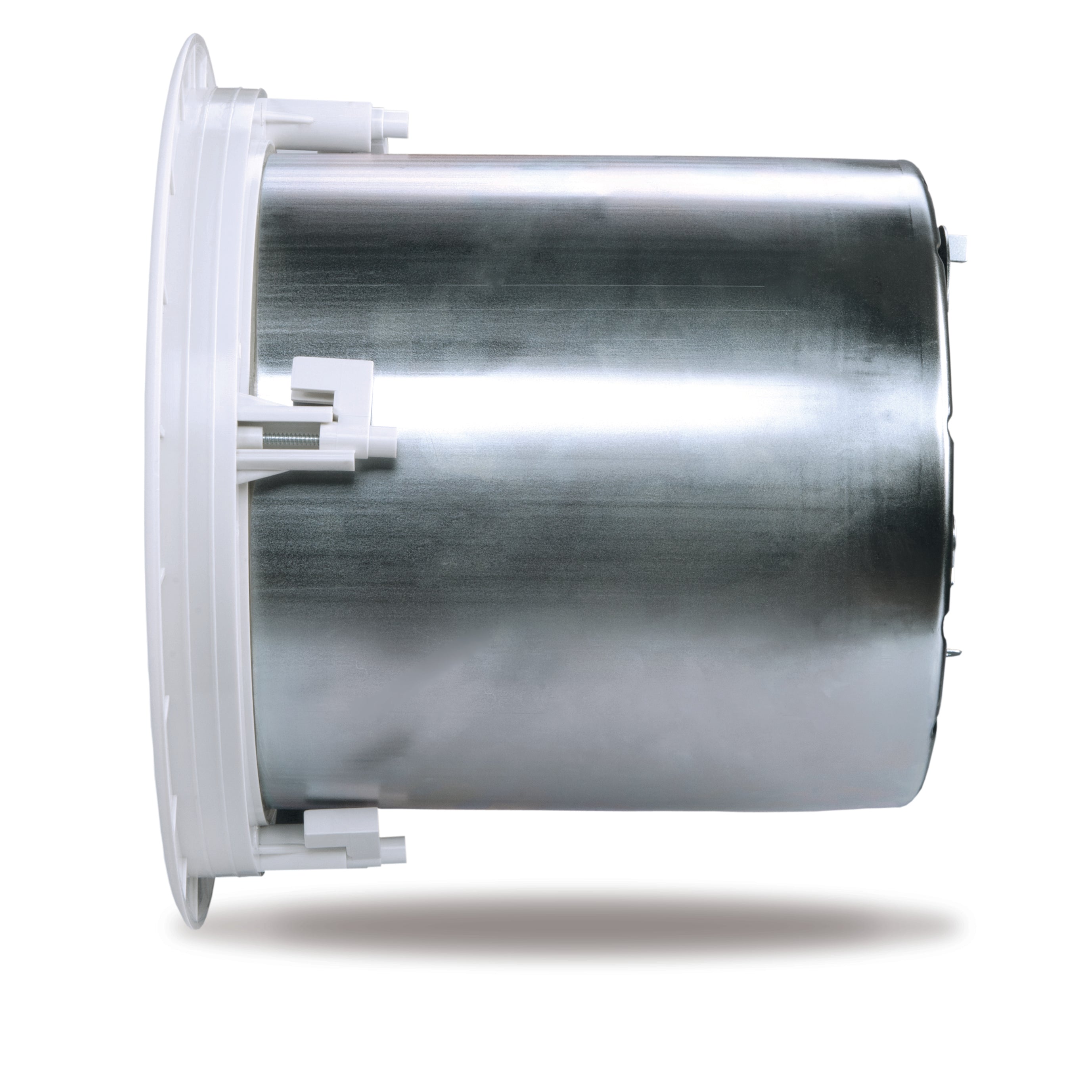

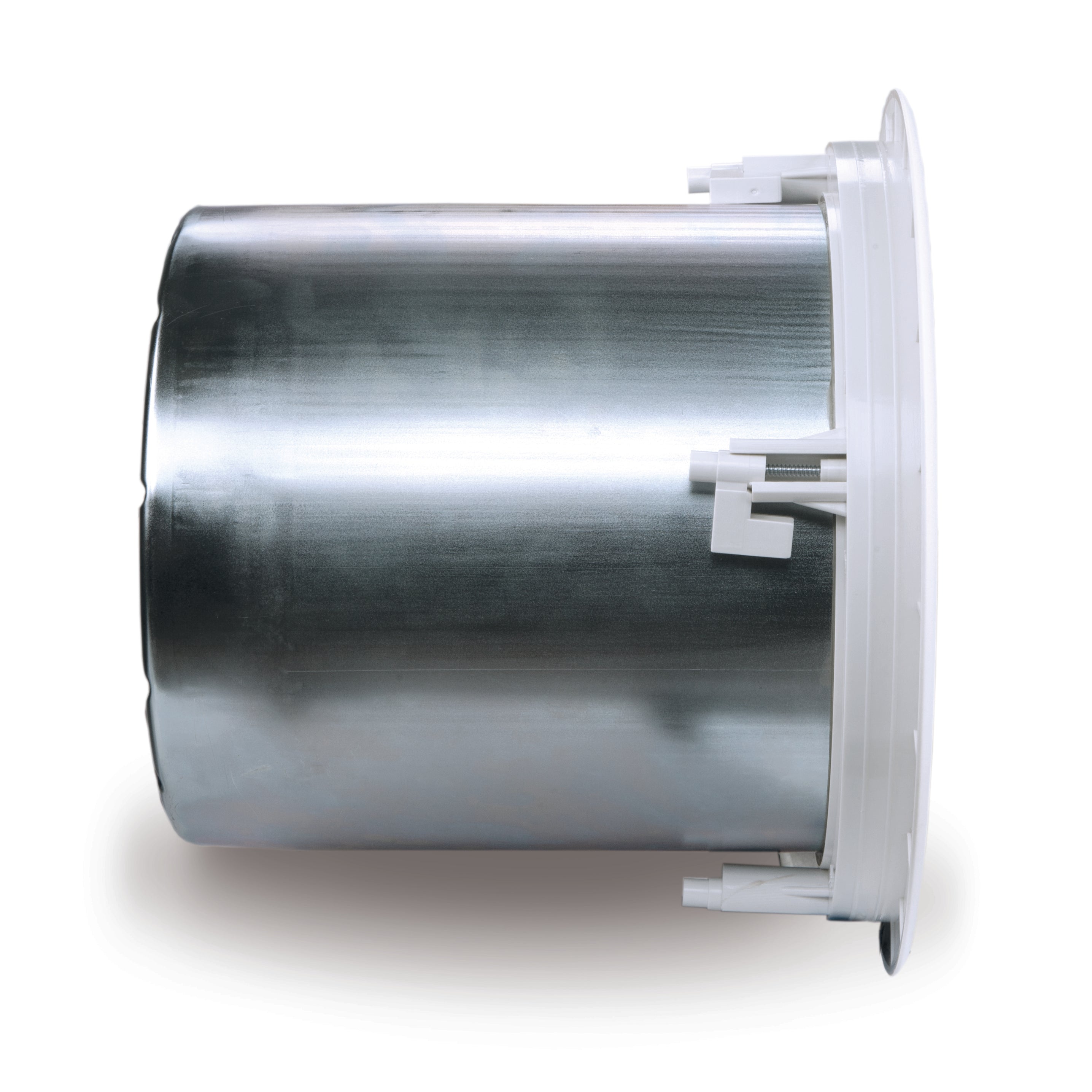

- Back can material: Plated steel
- Testing: Listed UL1480, UL2043 safe for use in airhandling space
- Net weight: 5.2 kg (11.5 lb)
- Product dimensions: 316 x 288 mm (12.4 x 11.3 in
- Cut-out Dimensions: 285 mm (11.2 in)
- Ceiling Capture Thickness: 6 - 38 mm (0.25 - 1.5 in)
- Shipping weight: 13.3 kg (29.3 lb) (pair packed)
- Shipping dimensions: 743 x 381 x 381 mm (29.3 x15 x 15 in)
- Included accessories: Rails & C-ring for ceiling tile installation
