Overview

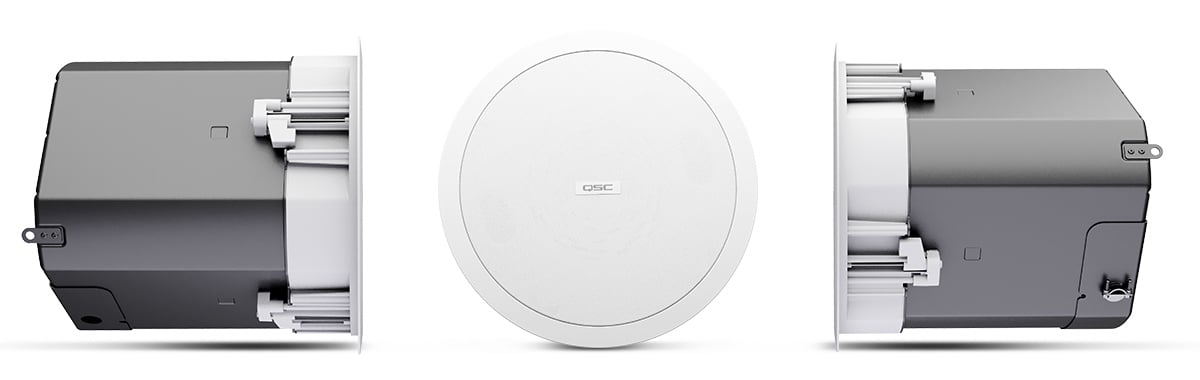

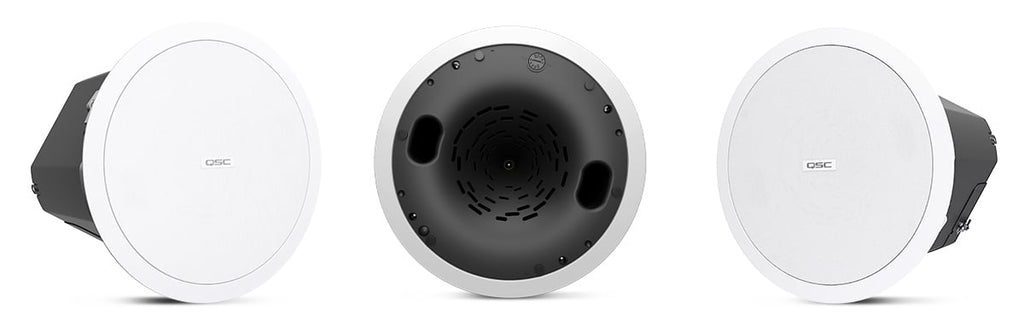

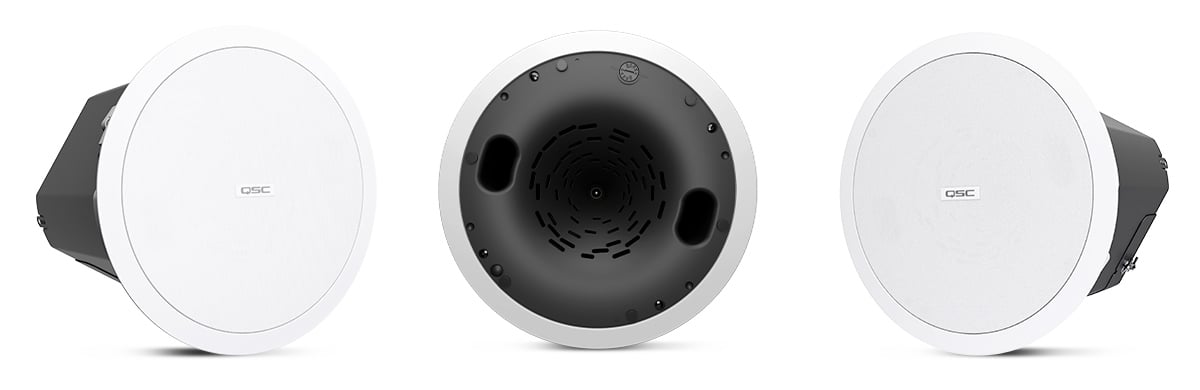

QSC AD-C6T-HC 6.5-inch, 2-way ceiling-mount loudspeaker with 75° coverage.
Features
- Higher power handling and tighter coverage area enable venues with high ceilings or reverberant spaces.
- Consistent tonal characteristics across the entire AcousticDesign Series allow you to mix and match form factors across your venue.
- Snap-fit magnetic grille.
- 3× double-stepped, long-travel dog-ear blind mount system.
- Advanced Intrinsic Correction™ voicings available via Q-SYS™.
- 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems.
- 75° coverage pattern.
- Available in White (RAL 9010).
Specifications
- Description: 6.5-inch, two-way ceiling-mount loudspeaker with transformer.
-
Transducers:
- 6.5-inch (165 mm) paper cone woofer with 1.75-inch (44.5 mm) voice coil and ferrite magnet.
- 1.4-inch (35.6 mm) Kapton dome compression tweeter.
- Sensitivity: 90 dB @ 1 W, 1 m
- Frequency range (-10 dB): 45 Hz – 20 kHz
- Rated noise power (@16 Ω bypass): 120 W
- Coverage (-6 dB): 75°
- Directivity factor: 10
- Directivity index: 10 dB
- Maximum SPL (continuous/peak): 110 dB / 116 dB @ 1 m
- Transformer taps (70 V / 100 V): 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W
- Bypass impedance: 16 Ω
- Minimum impedance: 14.97 Ω @ 208 Hz
- Crossover frequency: 2.5 kHz
- Input: 4-pin Euroblock connector with parallel output
- Net weight: 19 lb (8.58 kg)
- Product dimensions (H × W × D): 12 × 13.4 × 13.4 in (313 × 340 × 340 mm)
-
Optional accessories:
- AD-MR8 (pre-install mud ring), 305 mm cutout size
- AD-C305C (collar adapter), 305 mm cutout size
