Overview

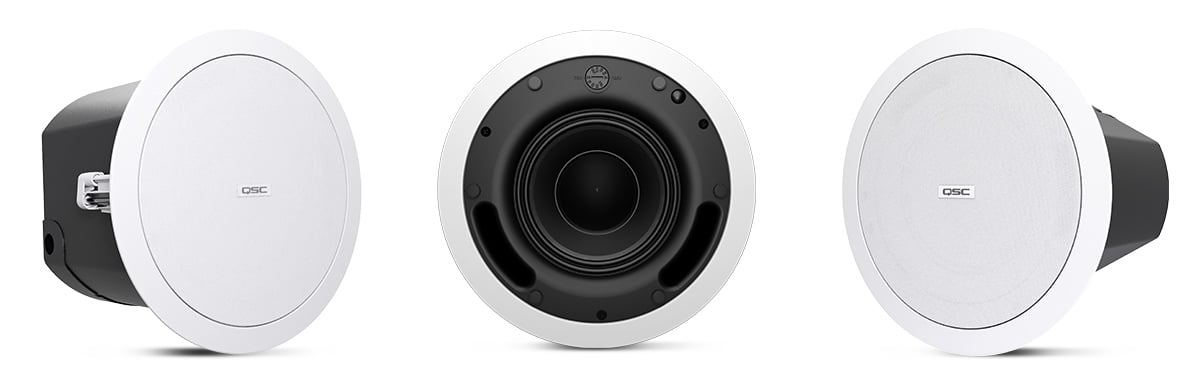

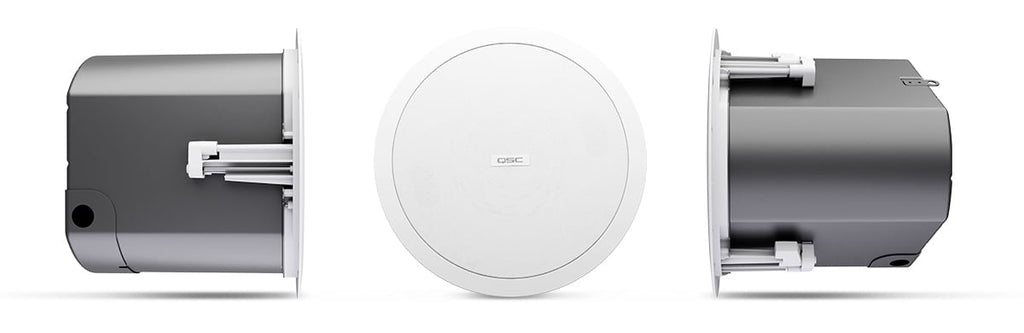

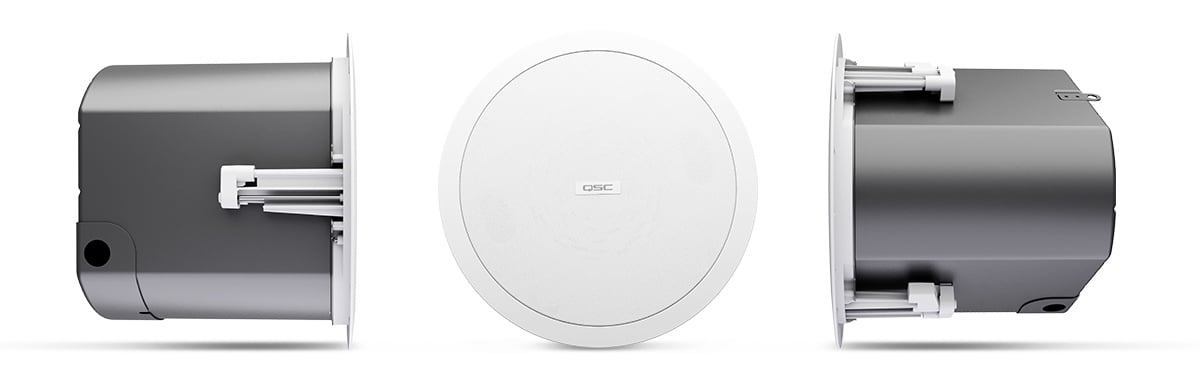

6.5-inch, 2-way ceiling-mount loudspeaker with 120° coverage.
Features
- Higher power handling at standard ceiling heights to enable high-energy venues.
- Consistent tonal characteristics across the entire AcousticDesign Series allow you to mix and match form factors across your venue.
- Snap-fit magnetic grille.
- 3× double-stepped, long-travel dog-ear blind mount system.
- Advanced Intrinsic Correction™ voicings available via Q-SYS™.
- 16 Ω bypass with multiple transformer taps for 70/100 Vrms systems.
- 120° coverage pattern.
- Available in White (RAL 9010).
Specifications
- Description: 6.5-inch, two-way ceiling-mount loudspeaker with transformer.
-
Transducers:
- 6.5-inch (165 mm) paper cone woofer with 1.75-inch (44.5 mm) voice coil and ferrite magnet.
- 1.4-inch (35.6 mm) Kapton dome compression tweeter.
- Sensitivity: 89 dB @ 1 W, 1 m
- Frequency range (-10 dB): 58 Hz – 20 kHz
- Rated noise power (@16 Ω bypass): 120 W
- Coverage (-6 dB): 120°
- Directivity factor: 3.6
- Directivity index: 5.6 dB
- Maximum SPL (continuous/peak): 109 dB / 115 dB @ 1 m
- Transformer taps (70 V / 100 V): 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W
- Bypass impedance: 16 Ω
- Minimum impedance: 15.4 Ω @ 281 Hz
- Crossover frequency: 2.6 kHz
- Input: 4-pin Euroblock connector with parallel output
- Net weight: 13.39 lb (6.07 kg)
- Product dimensions (H × W × D): 9.3 × 11 × 11 in (235 × 280.5 × 280.5 mm)
-
Optional accessories:
- AD-MR6 (pre-install mud ring)
- AD-C245C (collar adapter)
