Overview

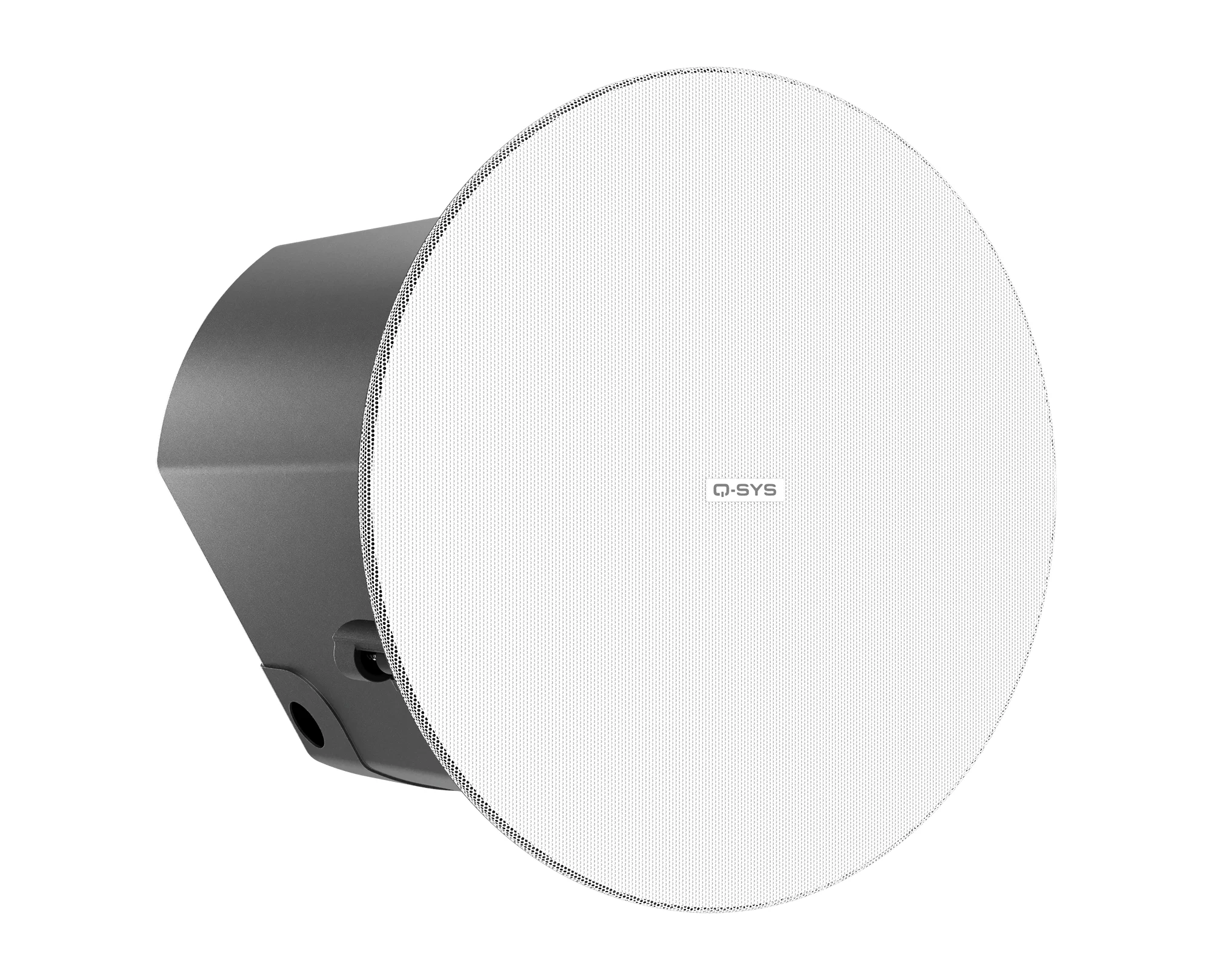

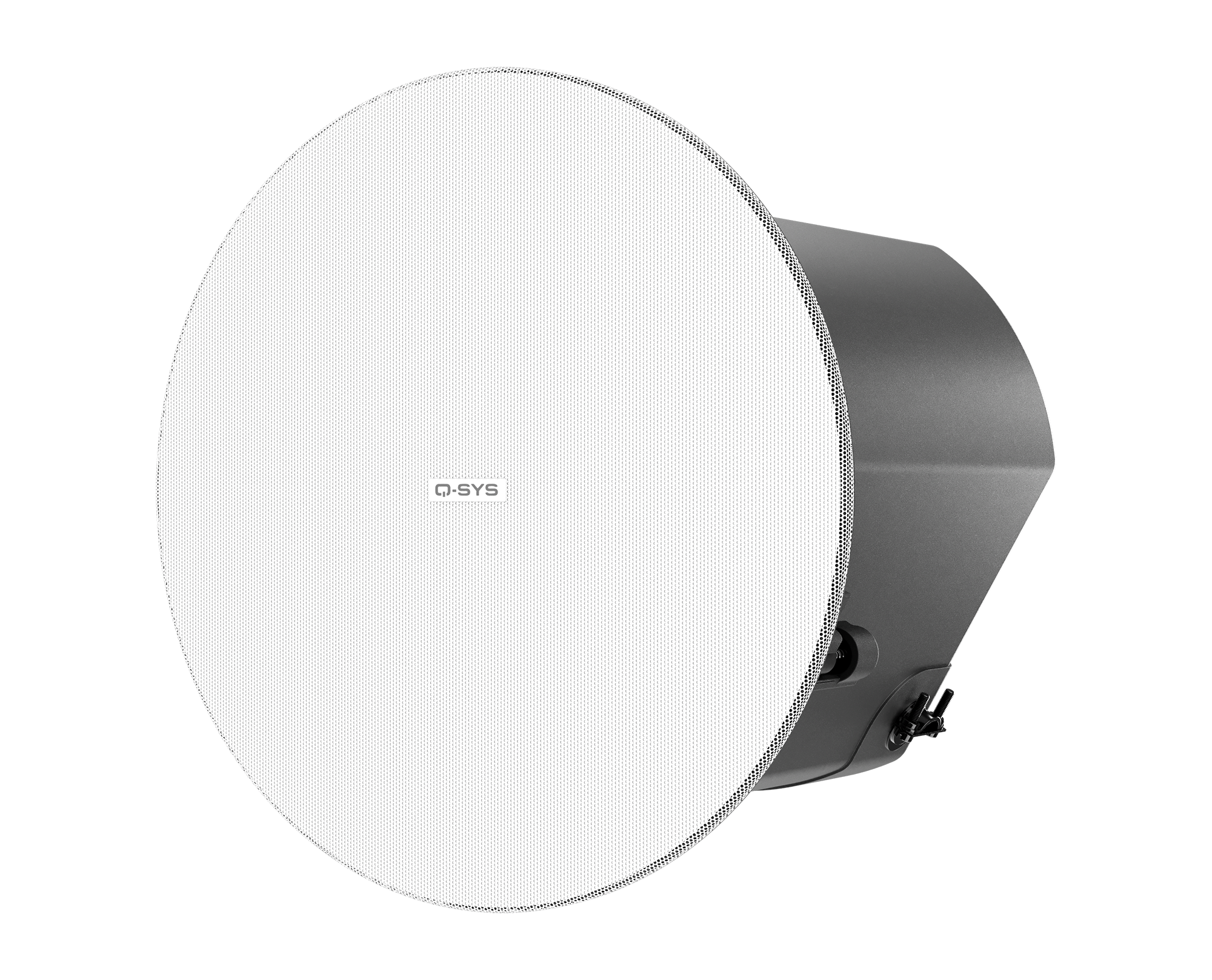

6.5" Two-way ceiling speaker, 70/100V transformer with 16Ω bypass, zero bezel design, 135° conical DMT™ coverage, includes C-ring and tile rails for blind mount installation.
Features
- Consistent tonal characteristics across the entire AcousticDesign™ family in both surface and ceiling applications.
- Sleek zero bezel design for modern architectural needs.
- Directivity Matched Transition® (DMT™) waveguide ensures smooth, uniform frequency response over the coverage area.

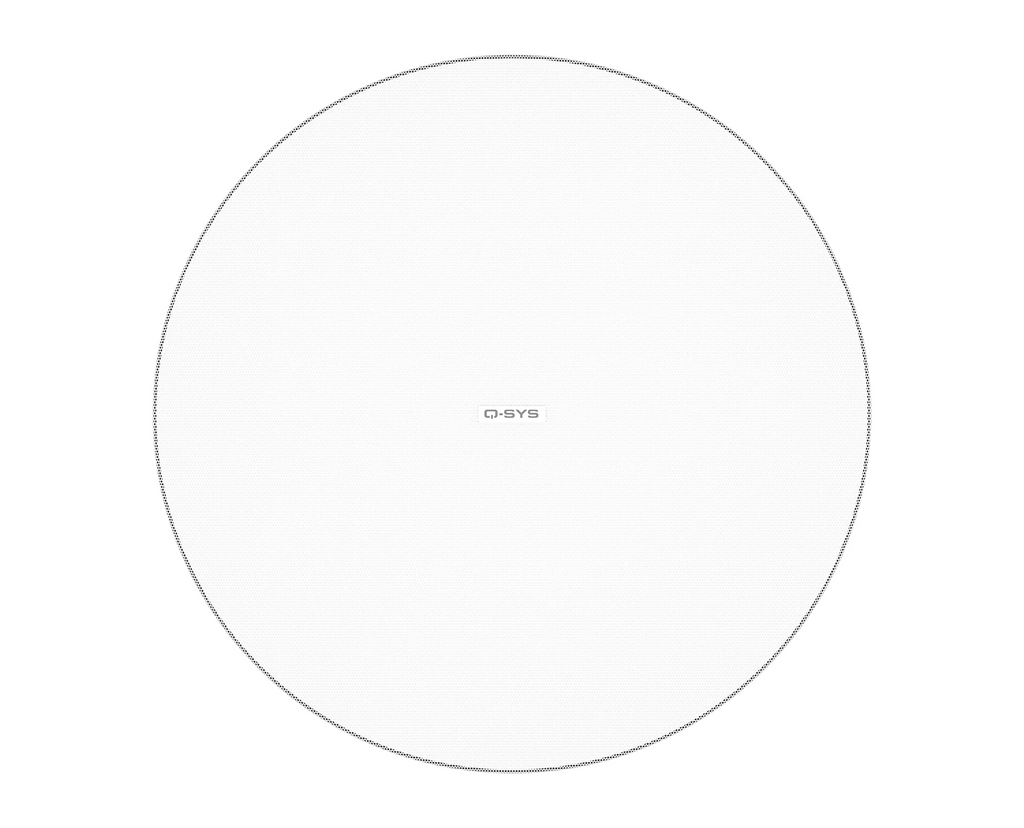

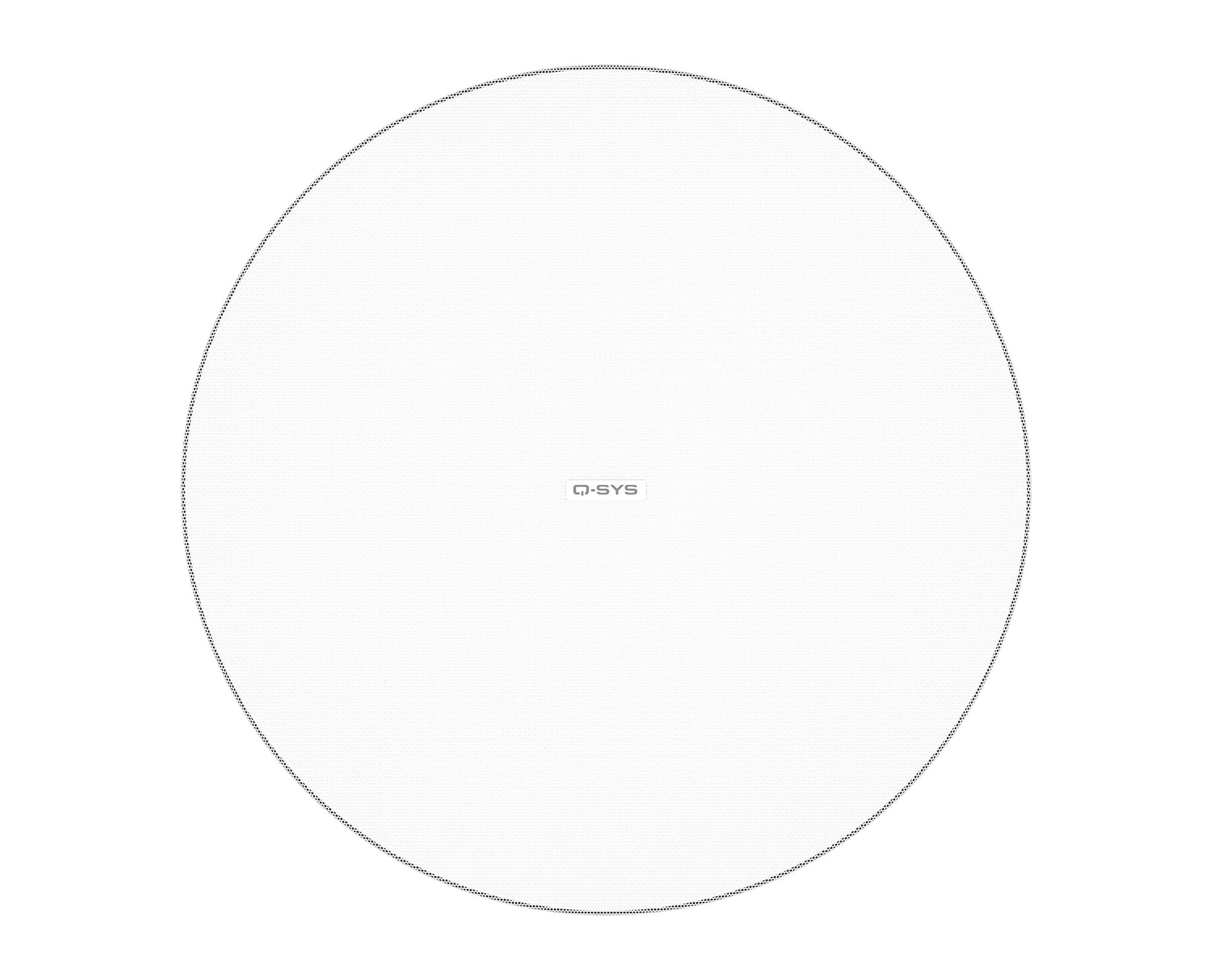

- Snap-fit magnetic grille.

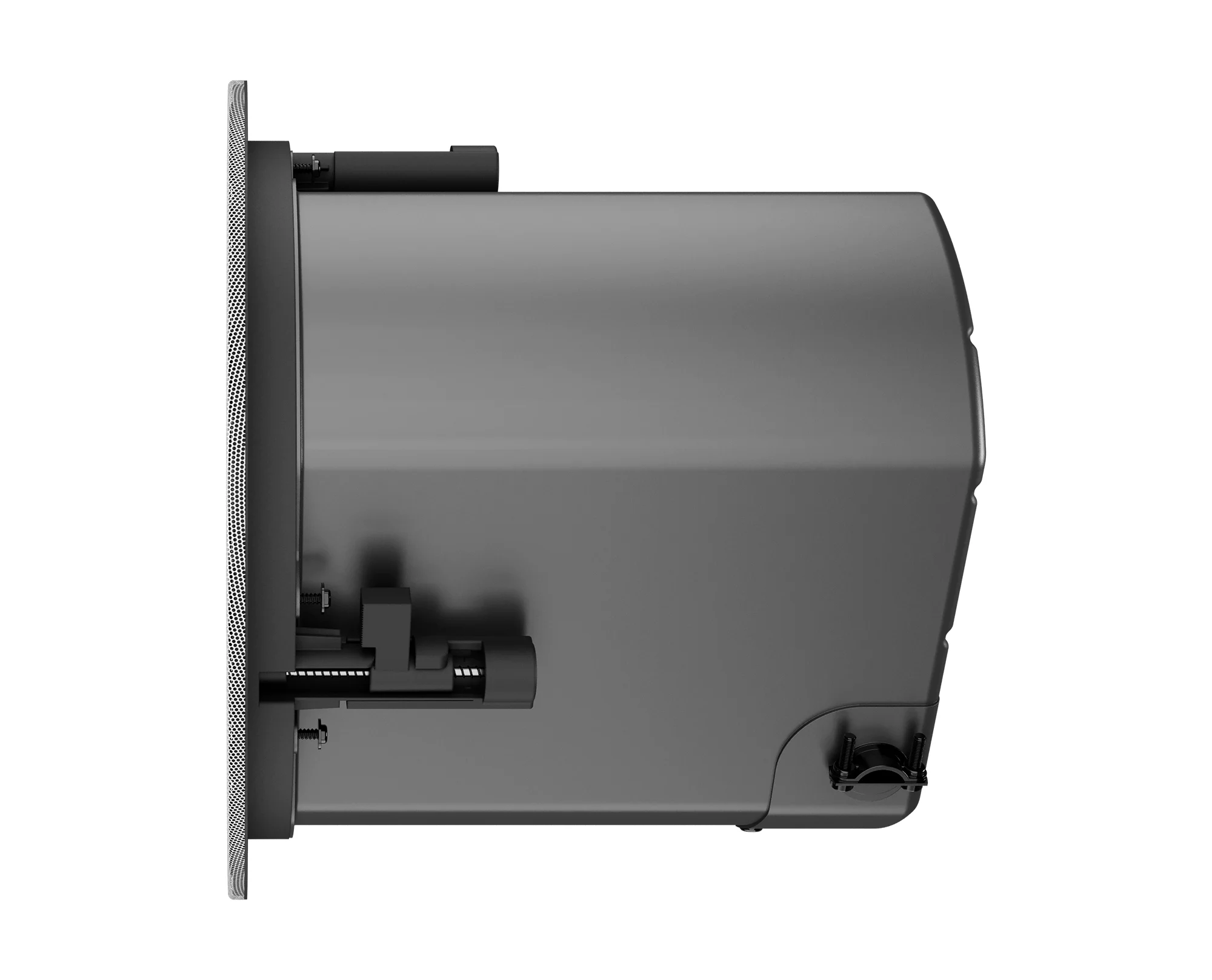

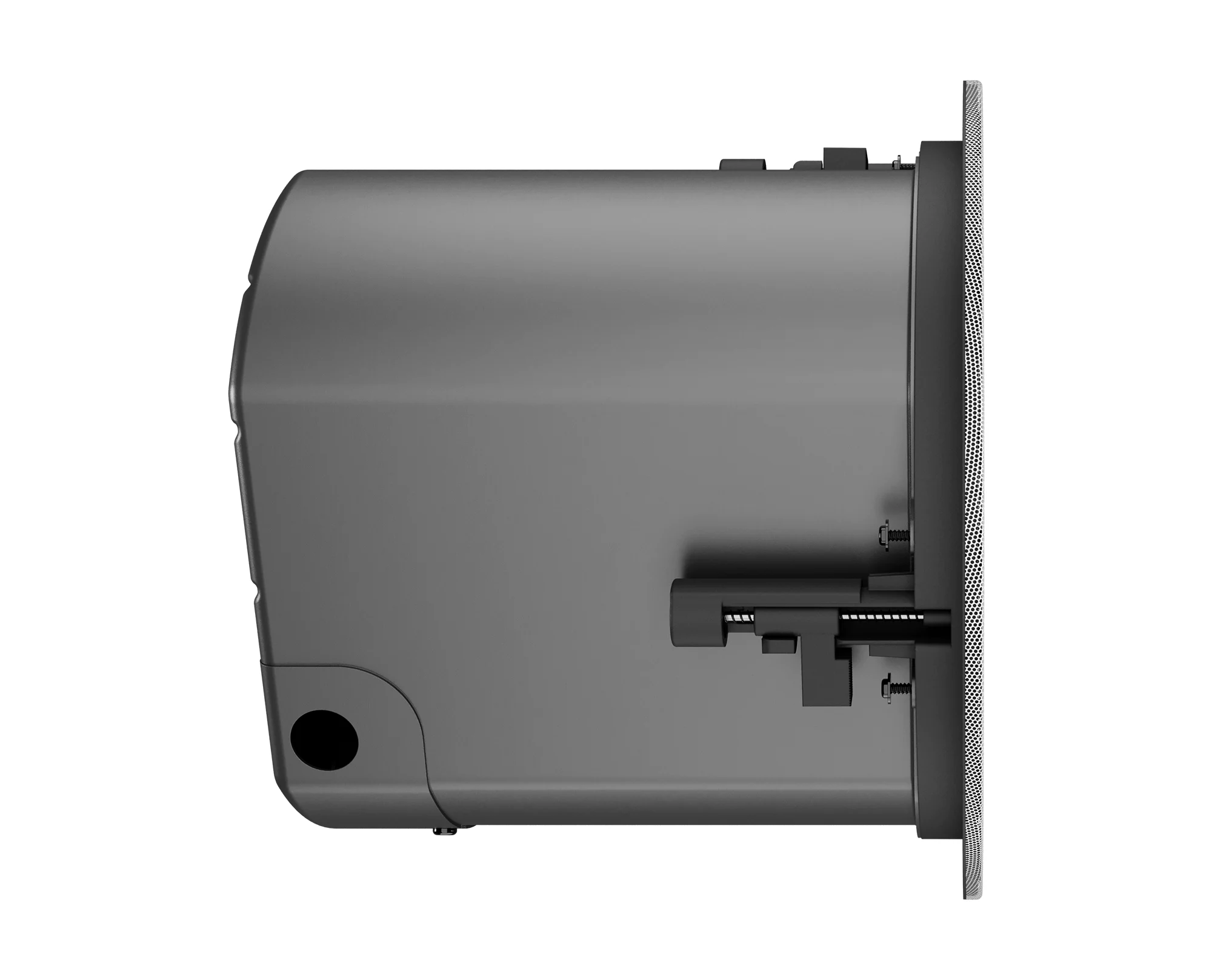

- 3× double-stepped, long-travel dog-ear blind mount system.
- Advanced Intrinsic Correction™ voicings available via Q-SYS™.
- Low-saturation and low-loss 70/100V transformers with 16Ω bypass.
- Blemish-free removable logo.
- Removable conduit cover plate; also available as an accessory for pre-install wiring.
- Available in Signal White (RAL 9003), with black grille accessory sold separately.
- Complete EASE, CAD, and BIM information available online.
Specifications
- Effective frequency range: 65 Hz – 20 kHz
- Rated noise power / voltage: 60 W / 31 Vrms
- Sensitivity: 88 dB (at 4 m, 100V maximum tap)
- Rated coverage (-6 dB): 135° conical DMT™
- Directivity factor (Q): 6.5
- Directivity index (DI): 8 dB
- Maximum continuous SPL: 106 dB
- Maximum peak SPL: 112 dB
- Nominal impedance: 16Ω
-
Transformer taps / impedance:
- 16Ω (bypass)
- 7.5 W (70V) / 15 W (100V): 667Ω
- 15 W (70V) / 30 W (100V): 333Ω
- 30 W (70V) / 60 W (100V): 167Ω
- 60 W (70V): 83Ω
- LF transducer: 165 mm (6.5") weather-resistant paper cone woofer
- HF transducer: 19 mm (0.75") aluminum dome tweeter
- Input connector: Euroblock connector with parallel output
- Enclosure material: ABS baffle with powder-coated steel back can
- Grille material: Powder-coated steel
- Ingress protection: IP34
- Operating environment: Indoor use
- Operating temperature: -20°C to 50°C (-4°F to 122°F)
- Cutout dimension: Ø245 mm (Ø9.65")
- Net weight: 4.3 kg (9.5 lb)
- Product dimensions (Ø × H): Ø280 × 237 mm (Ø11.02 × 9.32")
- Shipping weight: 12.6 kg (27.8 lb), pair packed
- Shipping dimensions (H × W × D): 330 × 737 × 381 mm (13 × 29 × 15 in.), pair packed
-
Included accessories:
- C-ring and tile rails
- Rail screws
- Euroblock connector
- Cutout template
- Tether grille
-
Optional accessories:
- AD-MR6 pre-install mud ring (245 mm cutout)
- AD-C245BG black ceiling grille (245 mm cutout)
- Safety Agency: UL1480, UL2043, NFPA 90, NFPA 70 suitable for use in air-handling spaces. Transformer UL registered per UL1876. RoHS, C-Tick X000, and CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability ratings and complies with IEC60849 / EN60849 system requirements.
