Overview
QSC AD-S5T 5.25-inch 2-way, 115° conical DMT™
Features
- 5.25 inch weather treated woofer; 1 inch silk dome tweeter
- 115° conical coverage
- 60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
- Maximum peak SPL 116 dB (8 ohm bypass)
- Directivity Matched Transition® (DMT) ensures smooth, uniform frequency response over the coverage area
- X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
- Advanced Intrinsic Correction™ voicings available via Q-SYS™
- Lightweight ABS enclosures offer long-term durability and lasting good looks
- Sealed input panel cover and powder coated aluminum grilles for added weather resistance
- Meets IEC60529 IP-54 for dust and splash resistance

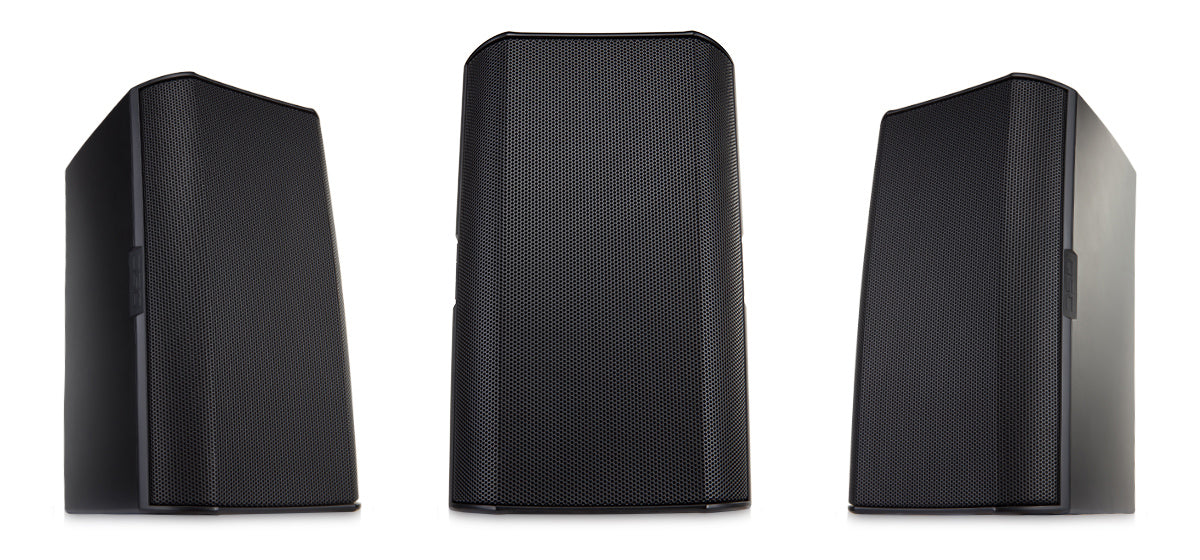

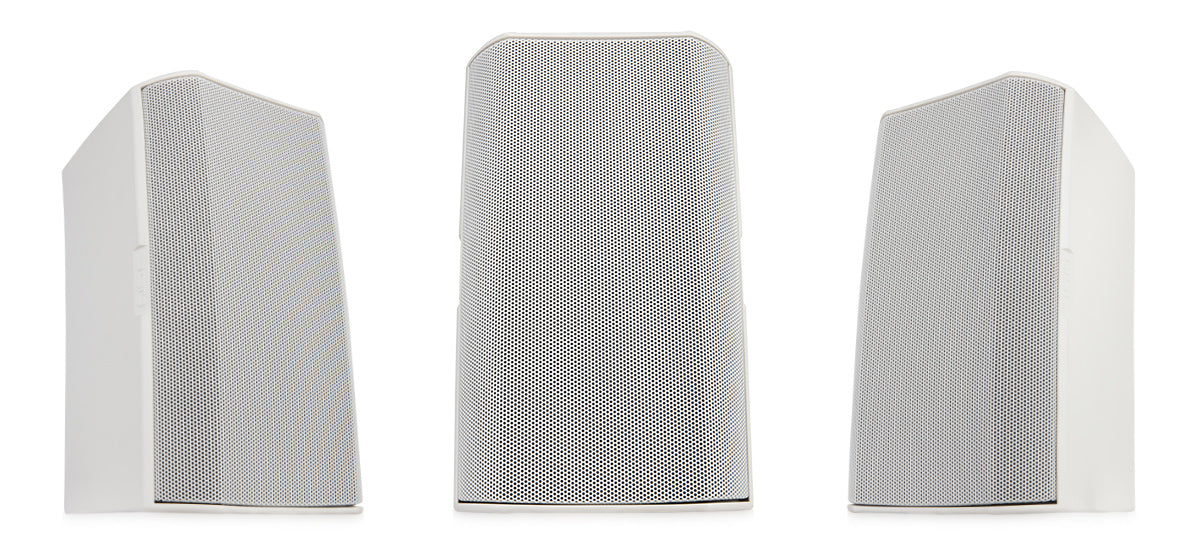

- Available in black (RAL 9011) or white (RAL 9010)
- Complete EASE, CF2, CAD, and BIM information available online
Specifications
- Effective frequency range: 60 Hz - 20 kHz
- Rated noise power / voltage: 100 W
- Broadband sensitivity: 86 dB SPL
- Coverage angle: 115° conical DMT®
- Directivity factor (Q): 6.9
- Directivity Index: 7 dB
- Maximum continuous SPL: 106 dB
- Maximum peak SPL: 112 dB
- Rated impedance: 8 ohms
-
Transformer taps:
- 70 V: 7.5, 15, 30, 60, bypass
- 100 V: n/a, 15, 30, 60, bypass
- HF transducer: 1-inch damped fabric dome tweeter, 1-inch voice coil
- LF transducer: 5.25-inch paper cone woofer, 1-inch voice coil
- Input connector type: Euroblock connector with parallel output terminals
- Enclosure material: Painted ABS polymer
- Grille material: Powder coated aluminum
- X-Mount material: Powder coated aluminum
- Ingress protection: IP-54
- Operating environment: Designed for indoor and outdoor use
- Product dimensions (HWD): 11.3 x 6.9 x 6.8 in (286 x 175 x 174 mm)
- Shipping weight: 20.2 lbs / 9.2 kg (pair packed)
- Shipping dimensions (HWD): 15.9 x 10.3 x 18.3 in (405 x 262 x 465 mm)
- Included accessories: X-Mount mounting system, Euroblock connector, input panel cover
