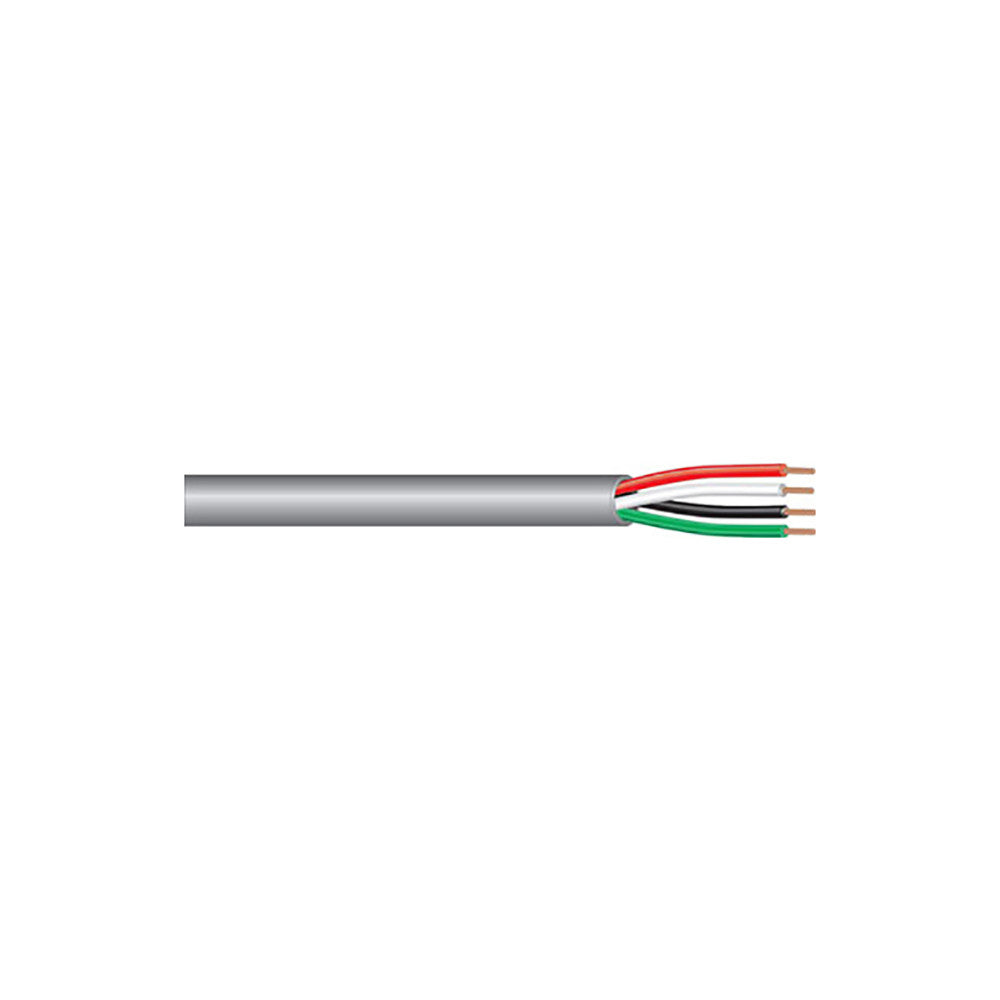

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 4 |
| AWG Size | 20 |
| Conductor Stranding | 7x28 |
| Conductor Type | Bare copper |
| Nominal DCR | 10.5 Ohm/1000ft |
| INSULATION PARAMETER | - |
| Insulation Type | Polypropylene - PP |
| Insulation Thickness | 0.008 in |
| Insulation Color Code | 1.Black,2.Red,3.White,4.Green |
| SHIELDING PARAMETER | - |
| Shield Type | None |
| ELECTRICAL CHARACTERISTICS | - |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | PVC |
| Jacket Thickness | 0.017 in |
| Nominal Cable O.D. | 0.159 in |
| Plenum | No |
| NEC UL Rating | CMR, CMG |
| RoHS Compliant | Yes |
| Pull Tension | 50 lbs |
| Bend Radius | 1.431 in |
| Cable Weight | 26 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| UL Flammability | UL1666 Vertical Shaft |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
