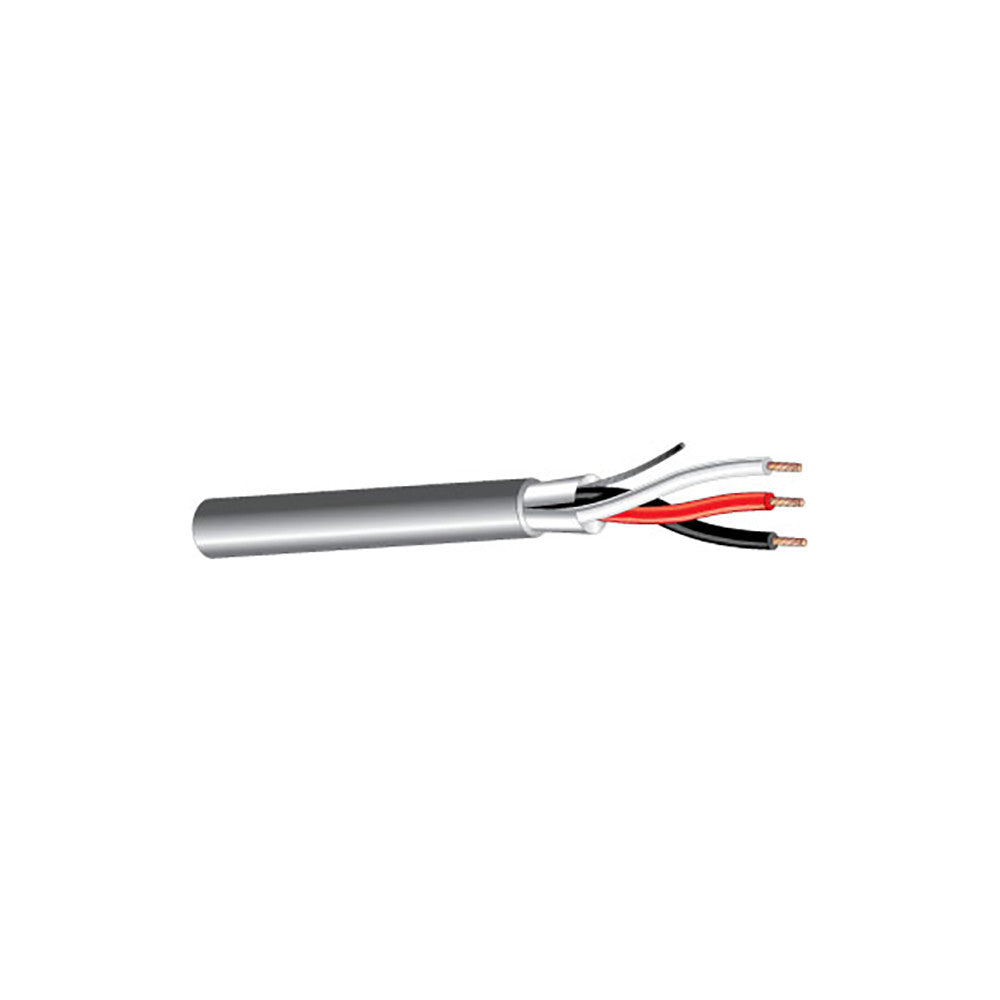

CONSTRUCTION & DIMENSIONS |
- |
CONDUCTOR PARAMETER |
- |
Number of Conductors |
3 |
AWG Size |
18 |
Conductor Stranding |
7x26 |
Conductor Type |
Bare copper |
Nominal DCR |
6.2 Ohm/1000ft |
INSULATION PARAMETER |
- |
Insulation Type |
Polypropylene - PP |
Insulation Thickness |
0.008 in |
Insulation Color Code |
1.Black,2.Red,3.White |
SHIELDING PARAMETER |
- |
Shield Type |
Overall 100% Aluminum Foil |
Drain Wire Type |
Tinned Copper |
Drain Wire AWG |
24 AWG |
ELECTRICAL CHARACTERISTICS |
- |
Nom. Cap. Between Conductors |
40 pF/ft |
Nom. Cap. Conductor to Shield |
79 pF/ft |
OVERALL CONSTRUCTION PARAMETERS |
- |
Jacket Type |
PVC |
Jacket Thickness |
0.017 in |
Nominal Cable O.D. |
0.174 in |
Plenum |
No |
NEC UL Rating |
CMR, CMG |
RoHS Compliant |
Yes |
Pull Tension |
66 lbs |
Bend Radius |
1.566 in |
Cable Weight |
31 lbs |
OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS |
- |
UL Flammability |
UL1666 Vertical Shaft |
CSA Flammability |
FT4 |
Operating Range |
-20 to 60 Deg C |
UL Voltage Rating |
300 |
