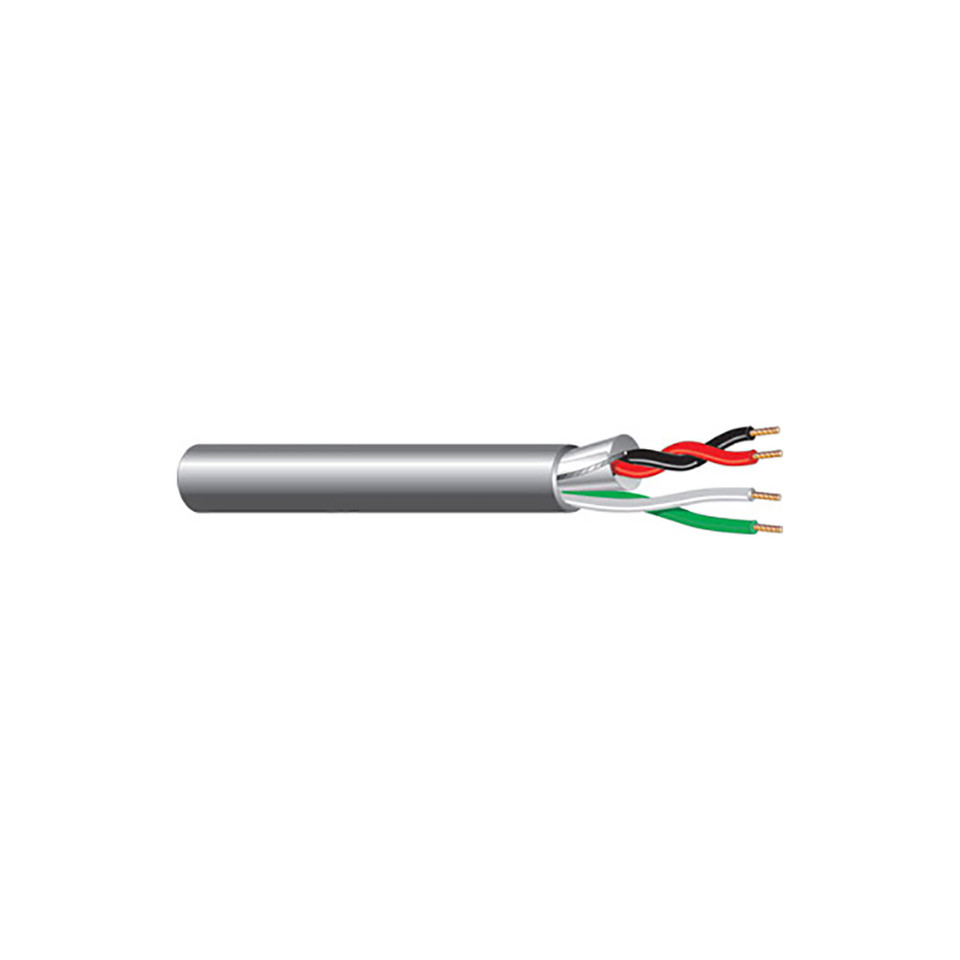

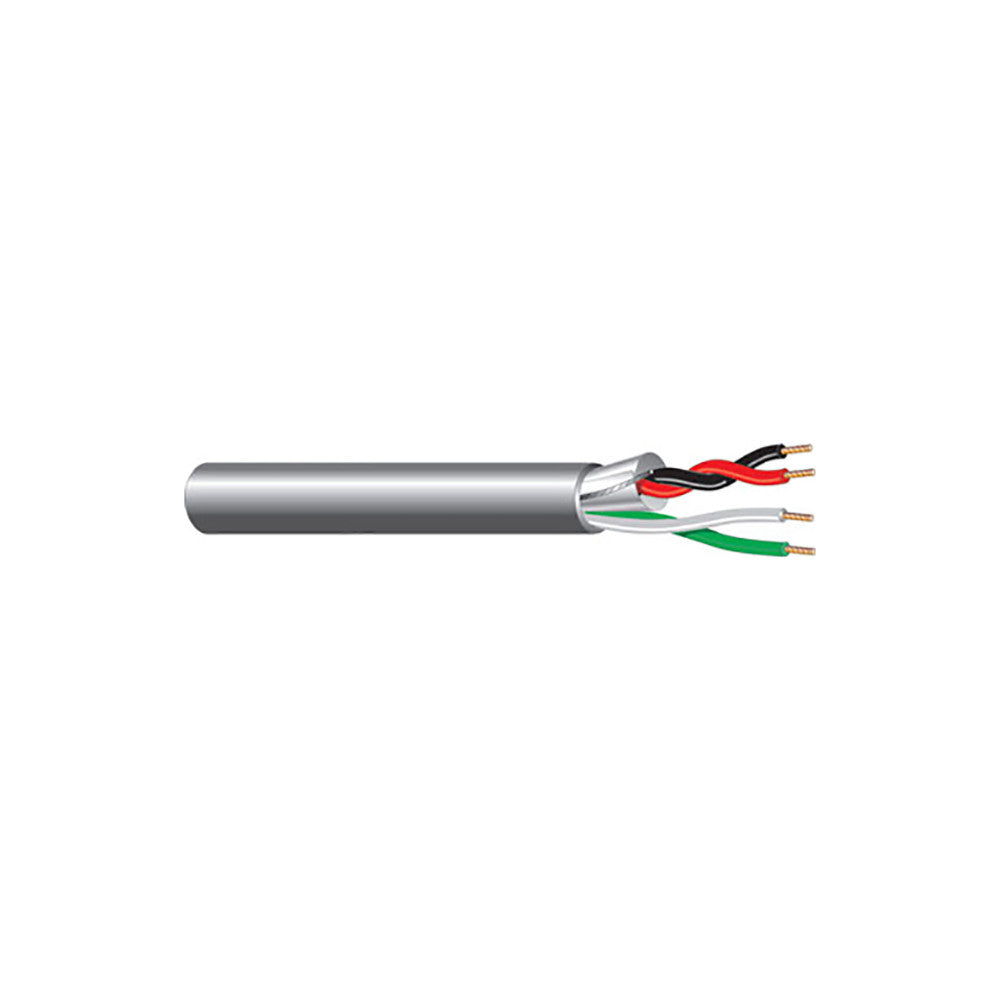

| CONSTRUCTION & DIMENSIONS | - | |
| Component | Shielded | Unshielded |
| CONDUCTOR PARAMETER | - | |
| Number of Conductors | 2 | 2 |
| AWG Size | 20 | 18 |
| Conductor Stranding | 7x28 | 7x26 |
| Conductor Type | Bare Copper | Bare Copper |
| Nominal DCR | 10.1 Ohm/1000ft | 6.2 Ohm/1000ft |
| INSULATION PARAMETER | - | |
| Insulation Type | Polypropylene - PP | Polypropylene - PP |
| Insulation Thickness | 0.008 in | 0.008 in |
| Insulation Color Code | 1. Black 2.Red | 1. White 2.Green |
| SHIELDING PARAMETER | - | |
| Shield Type | Overall 100% Aluminum Foil | None |
| Drain Wire Type | Tinned Copper | |
| Drain Wire AWG | 22 AWG | |
| ELECTRICAL CHARACTERISTICS | - | |
| Nom. Cap. Between Conductors | 34 pF/ft | |
| Nom. Cap. Conductor to Shield | 67 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Total Number of Conductors | 4 |
| Jacket Type | PVC |
| Jacket Thickness | 0.017 in |
| Nominal Cable O.D. | 0.15 in |
| Plenum | No |
| NEC UL Rating | CMR, CMG |
| RoHS Compliant | Yes |
| Pull Tension | 42 lbs |
| Bend Radius | 1.349 in |
| Cable Weight | 34 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| UL Flammability | UL1666 Vertical Shaft |
| CSA Flammability | FT4 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
