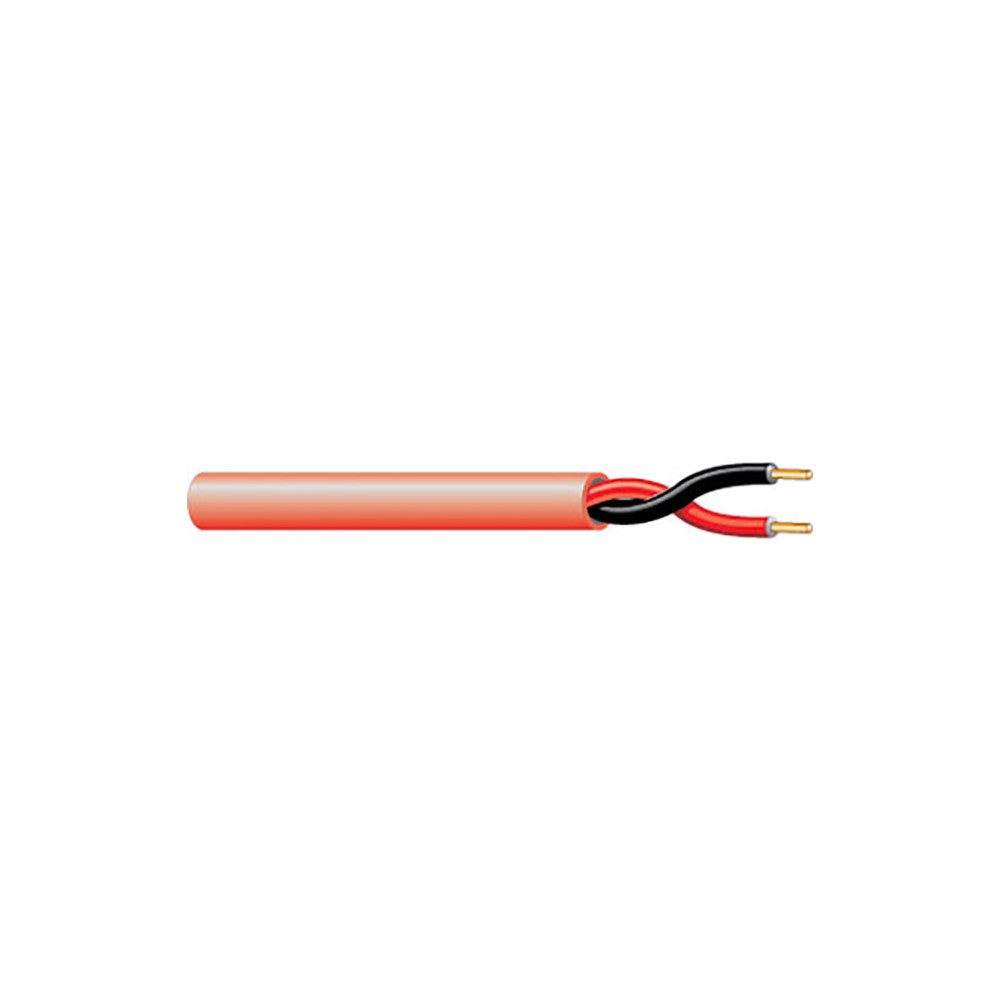

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 2 |
| AWG Size | 14 |
| Conductor Stranding | Stranded |
| Conductor Type | Bare Copper |
| Nominal DCR | 2.6 Ohm/1000ft |
| Cabling Lay Length | 3.25 in |
| Twists/Foot | 3.7 twist/ft |
| INSULATION PARAMETER | - |
| Insulation Type | Plenum PVC |
| Insulation Thickness | 0.09 in |
| Insulation Color Code | 1. Black 2.Red |
| SHIELDING PARAMETER | - |
| Shield Type | None |
| ELECTRICAL CHARACTERISTICS | - |
| Nom. Cap. Between Conductors | 34 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | Flexible Plenum |
| Jacket Thickness | 0.015 in |
| Nominal Cable O.D. | 0.198 in |
| Plenum | Yes |
| NEC UL Rating | FPLP |
| RoHS Compliant | Yes |
| Pull Tension | 99 lbs |
| Bend Radius | 1.782 in |
| Cable Weight | 36 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| UL Flammability | NFPA 262 Plenum |
| Operating Range | -0 to 60 Deg C |
| UL Voltage Rating | 300 |
