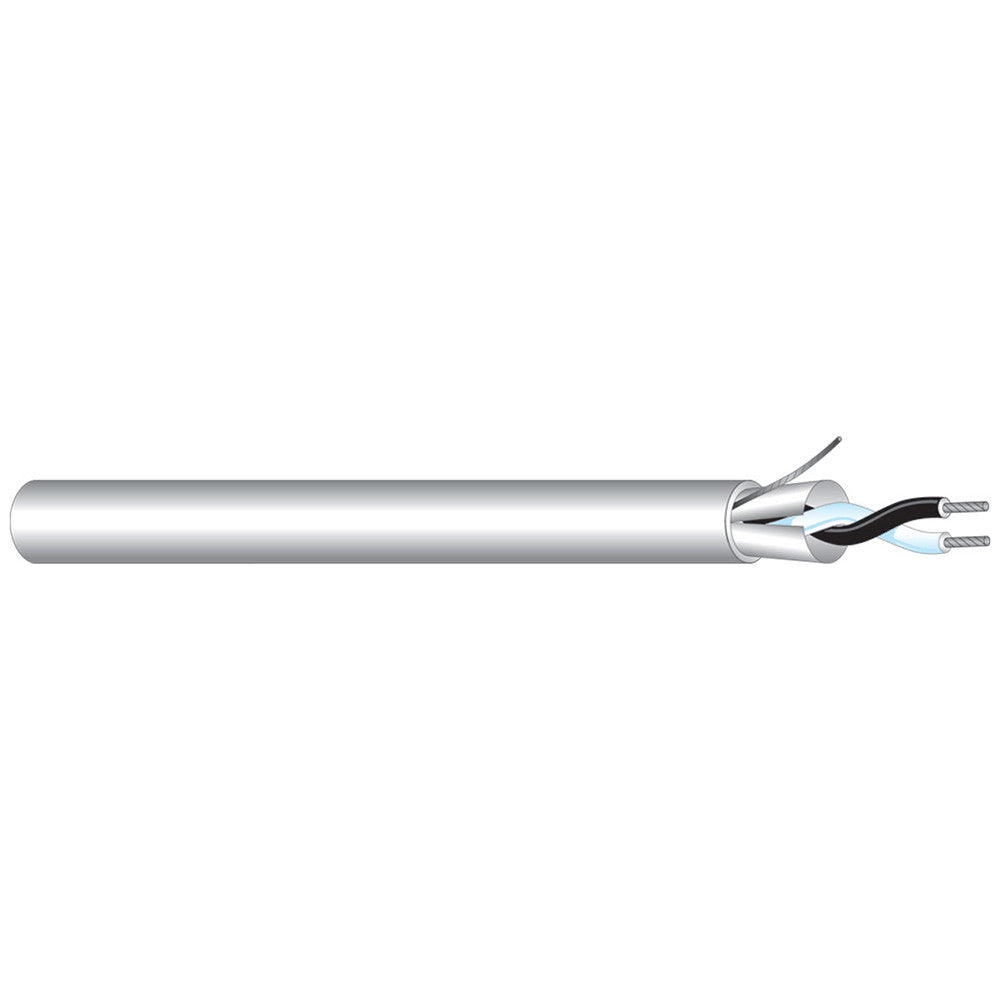

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Pairs | 1 |
| AWG Size | 18 |
| Conductor Stranding | 7x26 |
| Conductor Type | Tinned Copper |
| Nominal DCR | 6.5 Ohm/1000ft |
| INSULATION PARAMETER | |
| Insulation Type | Polyethylene - PE |
| Insulation Thickness | 0.018 in |
| Insulation Color Code | 1.Black,2.Clear |
| SHIELDING PARAMETER | |
| Shield Type | Overall 100% Aluminum Foil |
| Drain Wire Type | Tinned Copper |
| Drain Wire AWG | 20 AWG |
| ELECTRICAL CHARACTERISTICS | |
| Nom. Cap. Between Conductors | 24 pF/ft |
| Nom. Cap. Conductor to Shield | 47 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Jacket Type | PVC |
| Jacket Thickness | 0.025 in |
| Nominal Cable O.D. | 0.222 in |
| Plenum | No |
| NEC UL Rating | CM |
| RoHS Compliant | Yes |
| Pull Tension | 57 lbs |
| Bend Radius | 1.998 in |
| Cable Weight | 27 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | UL1685 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
