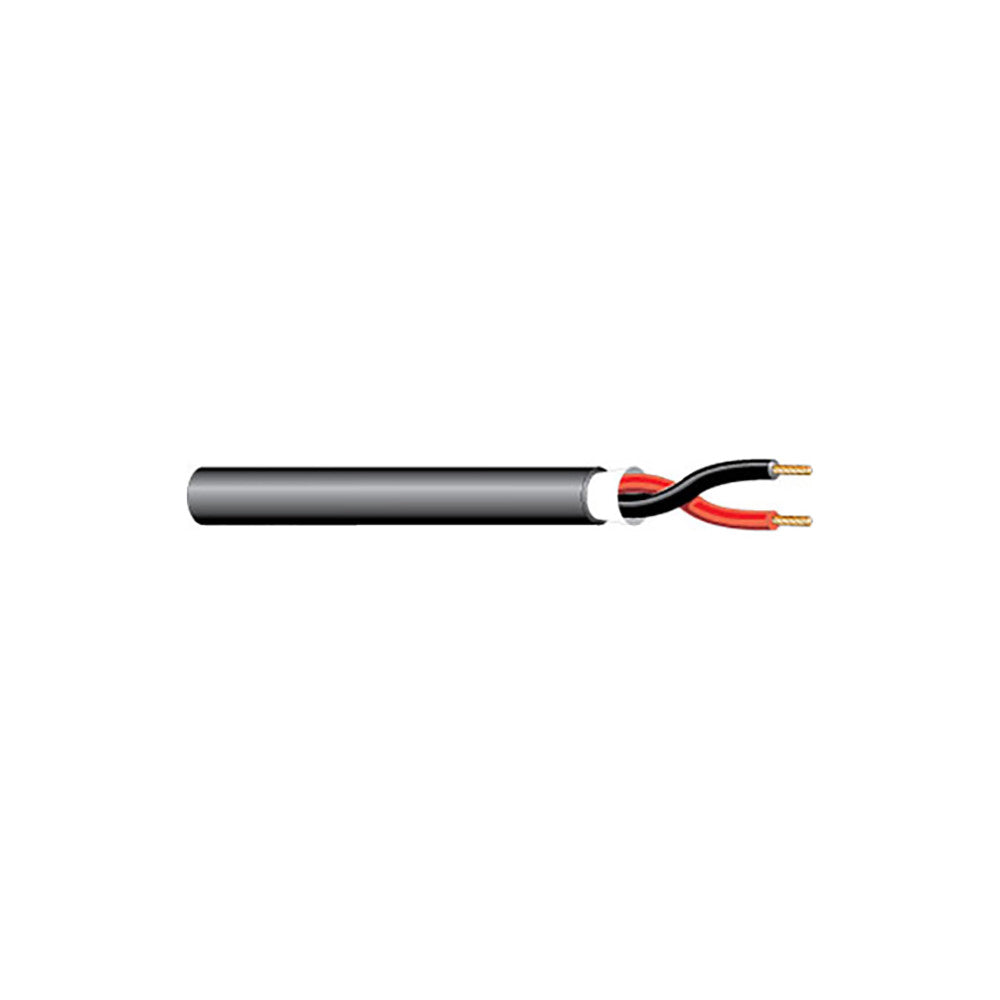

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Conductors | 2 |
| AWG Size | 14 |
| Conductor Stranding | 19x27 |
| Conductor Type | Bare Copper |
| Nominal DCR | 2.7 Ohm/1000ft |
| INSULATION PARAMETER | |
| Insulation Type | PVC |
| Insulation Thickness | 0.015 in |
| Insulation Color Code | 1. Black 2.Red |
| SHIELDING PARAMETER | - |
| Shield Type | Aquaseal Water Blocking Tape |
| ELECTRICAL CHARACTERISTICS | |
| Nom. Cap. Between Conductors | 34 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Jacket Type | UV Resistant PVC |
| Jacket Thickness | 0.025 in |
| Nominal Cable O.D. | 0.294 in |
| Plenum | No |
| NEC UL Rating | CL3, FPL |
| RoHS Compliant | Yes |
| TIA Test | TIA455-82 Water Penetration Test |
| Pull Tension | 82 lbs |
| Bend Radius | 2.646 in |
| Cable Weight | 48 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | UL1685 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
