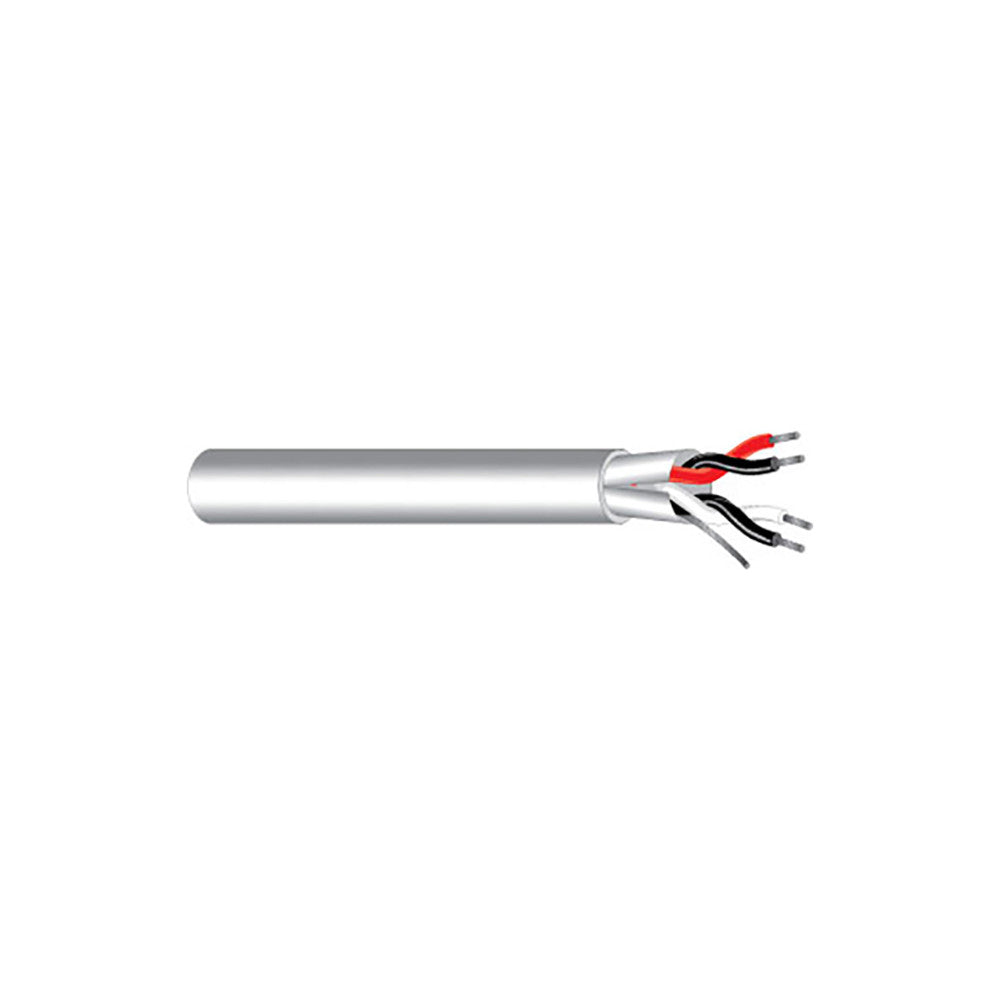

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Pairs | 2 |
| AWG Size | 22 |
| Conductor Stranding | 7x30 |
| Conductor Type | Tinned Copper |
| Nominal DCR | 17 Ohm/1000ft |
| INSULATION PARAMETER | |
| Insulation Type | Polyolefin |
| Insulation Thickness | 0.01 in |
| Insulation Color Code | 1. Black-Red 2. Black-White |
| SHIELDING PARAMETER | |
| Shield Type | Overall 100% Aluminum Foil |
| Drain Wire Type | Tinned Copper |
| Drain Wire AWG | 24 AWG |
| ELECTRICAL CHARACTERISTICS | |
| Nominal Impedance | 55 Ohm |
| Nom. Cap. Between Conductors | 26 pF/ft |
| Nom. Cap. Conductor to Shield | 47 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Total Number of Conductors | 4 |
| Jacket Type | PVC |
| Jacket Thickness | 0.030 in |
| Nominal Cable O.D. | 0.235 in |
| Plenum | No |
| NEC UL Rating | CM |
| RoHS Compliant | Yes |
| Bend Radius | 2.115 in |
| Cable Weight | 27 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | UL1685 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
