Overview

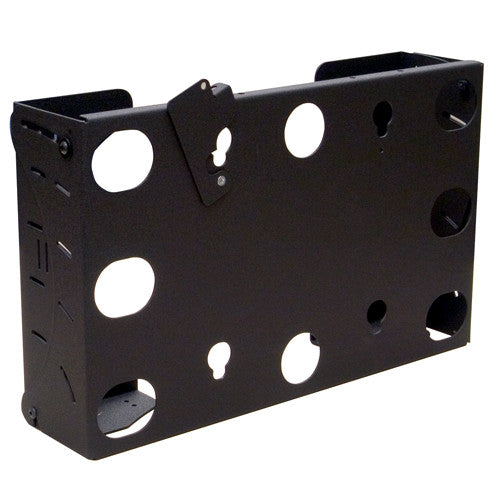

Provides an all-in-one tilt wall mount solution for both a medium-sized flat panel display and CPU or receiver.
- An ideal solution for digital signage applications
- Complete solution designed to easily integrate a media player into a flat panel installation
- Provides lockable tilt at 0, 5, 10 and 15º
- Integrated lateral shift up .75" left or right of 16" center stud system
- 200 mm Q-Latch installation
- Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
Specification
Dimensions & Measurements
| Lateral Shift | 1.5 in (3.8 cm) |
| Max Equipment Size | 14" x 18.82" x 3.82" (356 x 478 x 97 mm) |
| Maximum Screen Thickness | 6" (152mm) |
| Minimum Depth | 4.5 in (11.4 cm) |
| Shipping Weight | 26 lbs (11.8 kg) |
| Typical Screen Size | 26" - 55" (660mm - 1397mm) |
| Weight Capacity | 100 |
Characteristics & Features
| Adjustability | Tilt |
| Application | Wall |
| Color | Black |
| Interface Included | Yes |
| Number of Displays | 1 |
| Orientation |
|
| Solution Type | Universal |
| Tilt | +0° / -15° |
| VESA Mounting Pattern | 100 x 100mm up to 709 X 431mm |
