Overview

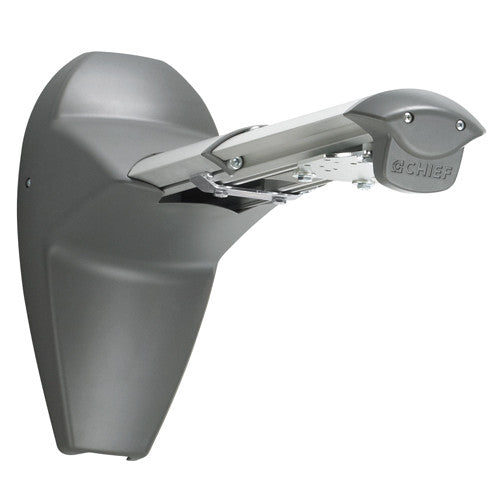

The WM110S provides ideal placement and alignment for short throw and ultra short throw projector mounting on a single stud.
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately)
- Also supports wall-mounted long-throw projectors
- Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- Extension from wall, 11.25-18.00" (285.75-457 mm)
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
- Includes short throw arm only, projector mount must be ordered separately
- Includes hardware for wood stud, steel stud and concrete wall construction
- Also supports long-throw projectors
Specification
Dimensions & Measurements
| Depth | 21.7 |
| Extension | 11.3" - 18" (28.70cm - 45.72cm) |
| Height | 14.2 |
| Overall Dimensions | 14.2" x 7.3" x 21.7" (360 x 185 x 551 mm) |
| Shipping Weight | 18 lbs (8.2 kg) |
| Weight Capacity | 50 |
| Width | 7.3 |
Characteristics & Features
| Adjustability | No |
| Adjustments |
|
| Application | Wall |
| Color | Silver |
| Interface Type | None |
| Solution Type | Universal |
