Overview

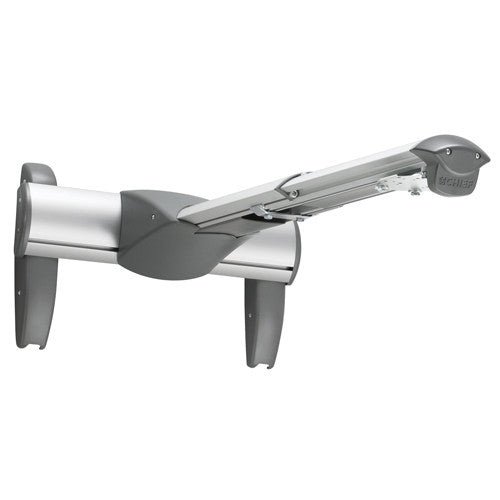

The WM220S provides ideal placement and alignment for short throw projector mounting on dual studs.
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately)
- Also supports wall-mounted long-throw projectors.
- Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- Integrated lateral shift
- Telescoping extension, 1.5'-2.5' (457-762 mm)
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
- Includes short throw arm only, projector mount must be ordered separately
- Includes hardware for wood stud, steel stud and concrete wall construction
Specification
Dimensions & Measurements
| Depth | 35.6 in (90.4 cm) |
| Extension | 17.5" - 30" (44.45cm - 76.20cm) |
| Height | 11.5 in (29.2 cm) |
| Lateral Shift | 10" (254 mm) |
| Shipping Weight | 21.6 lbs (9.8 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 19.6 in (49.8 cm) |
Characteristics & Features
| Adjustability | No |
| Adjustments | Pitch: 3° |
| Application | Wall |
| Color | Silver |
| Interface Type | None |
| Mount Type | None |
| Projector Size | Medium |
| Solution Type | Universal |
