Overview

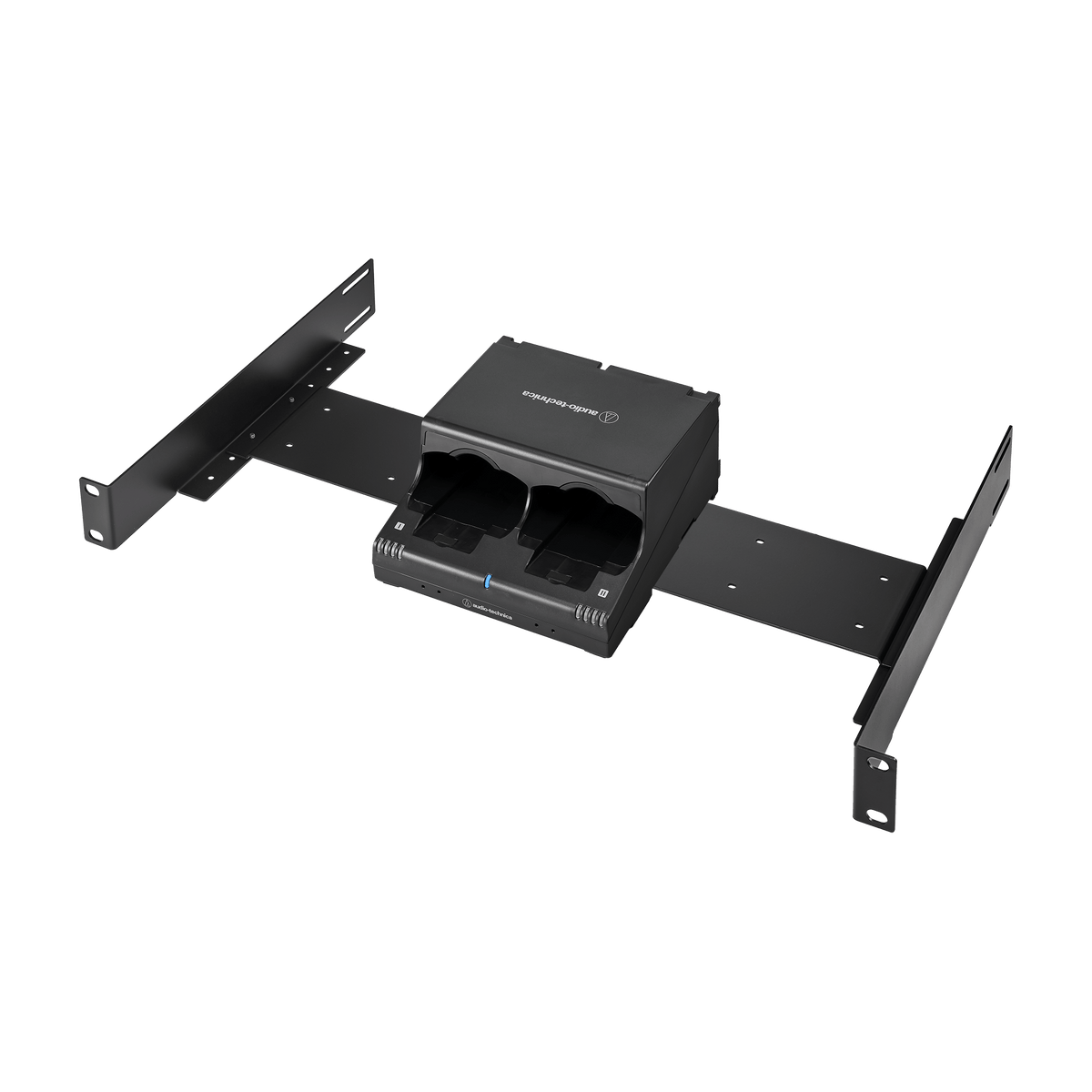

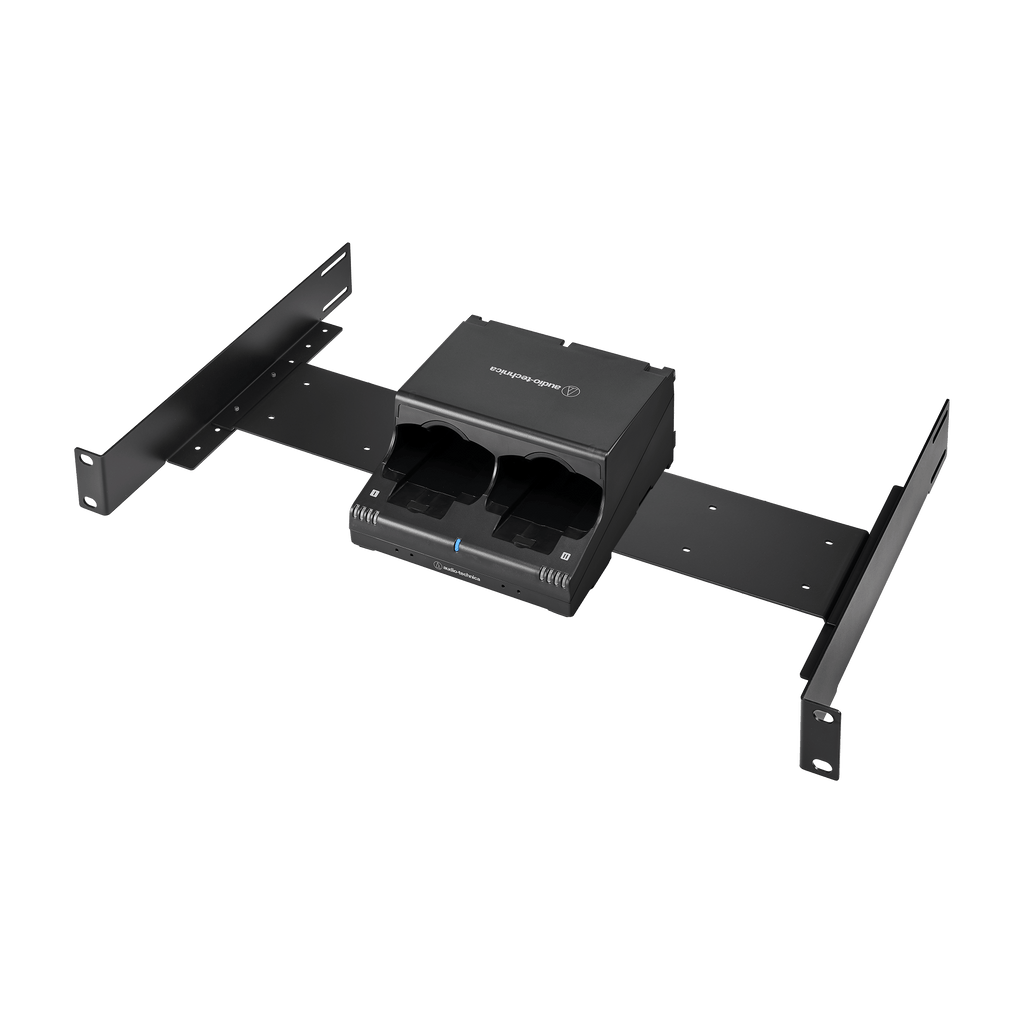

The ATW-CHG6 two-bay charging station is used to charge D50 wireless system body-pack (ATW-DT3201) and handheld (ATW-DT3202) transmitters. The charger can also accept the ATW-CHGA6 single battery charger. Up to three ATW-CHG6 charging stations can be installed in a single 2U rack space by using the included AT8620 rack-mount tray. Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+.
Indicator lamps on the front of the station allow users to easily monitor charging status and battery level, which can also be viewed in the Wireless Manager software. Transmitter firmware can be updated while transmitters are docked in the charging station.
Features
- Two-bay charging station for charging D50 wireless system body-pack and handheld transmitters

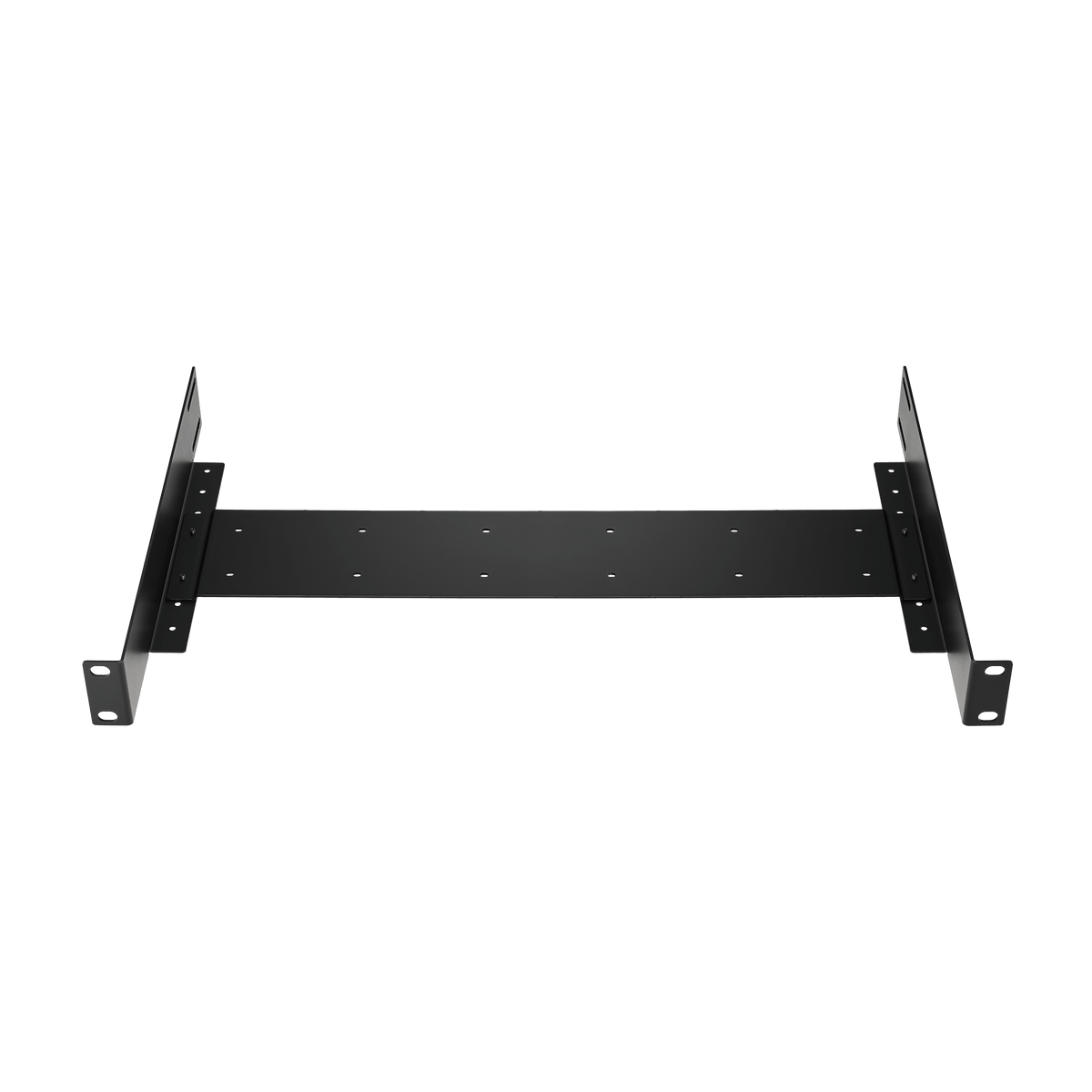

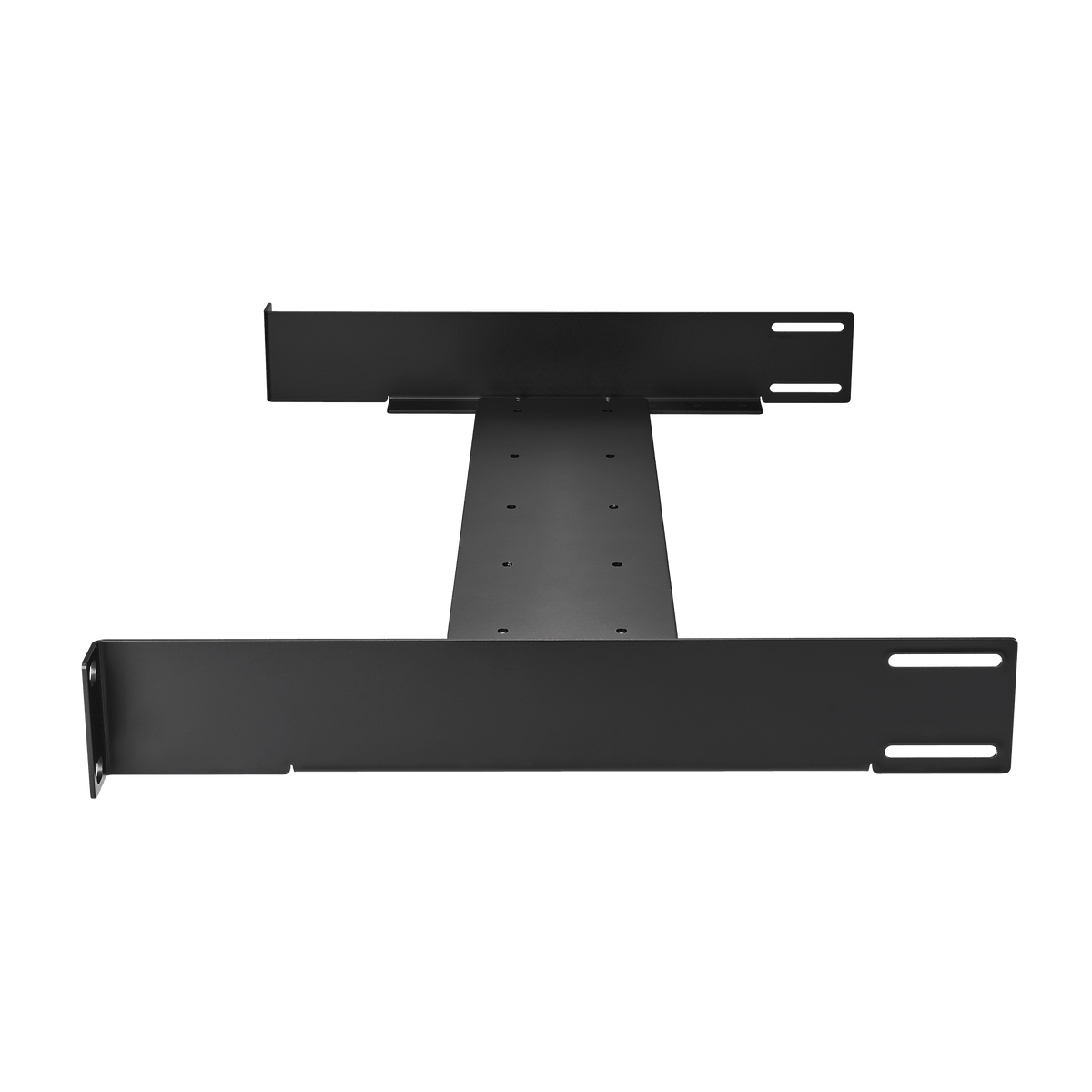

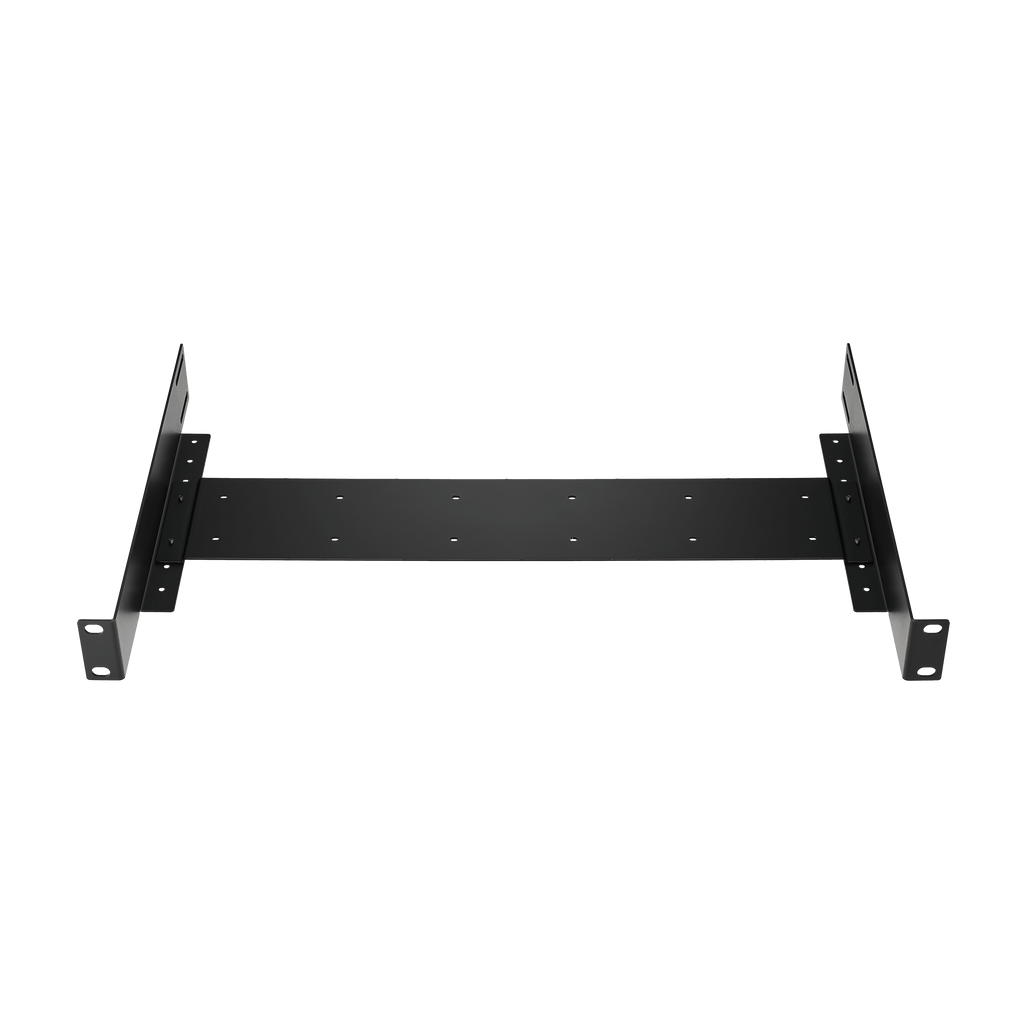

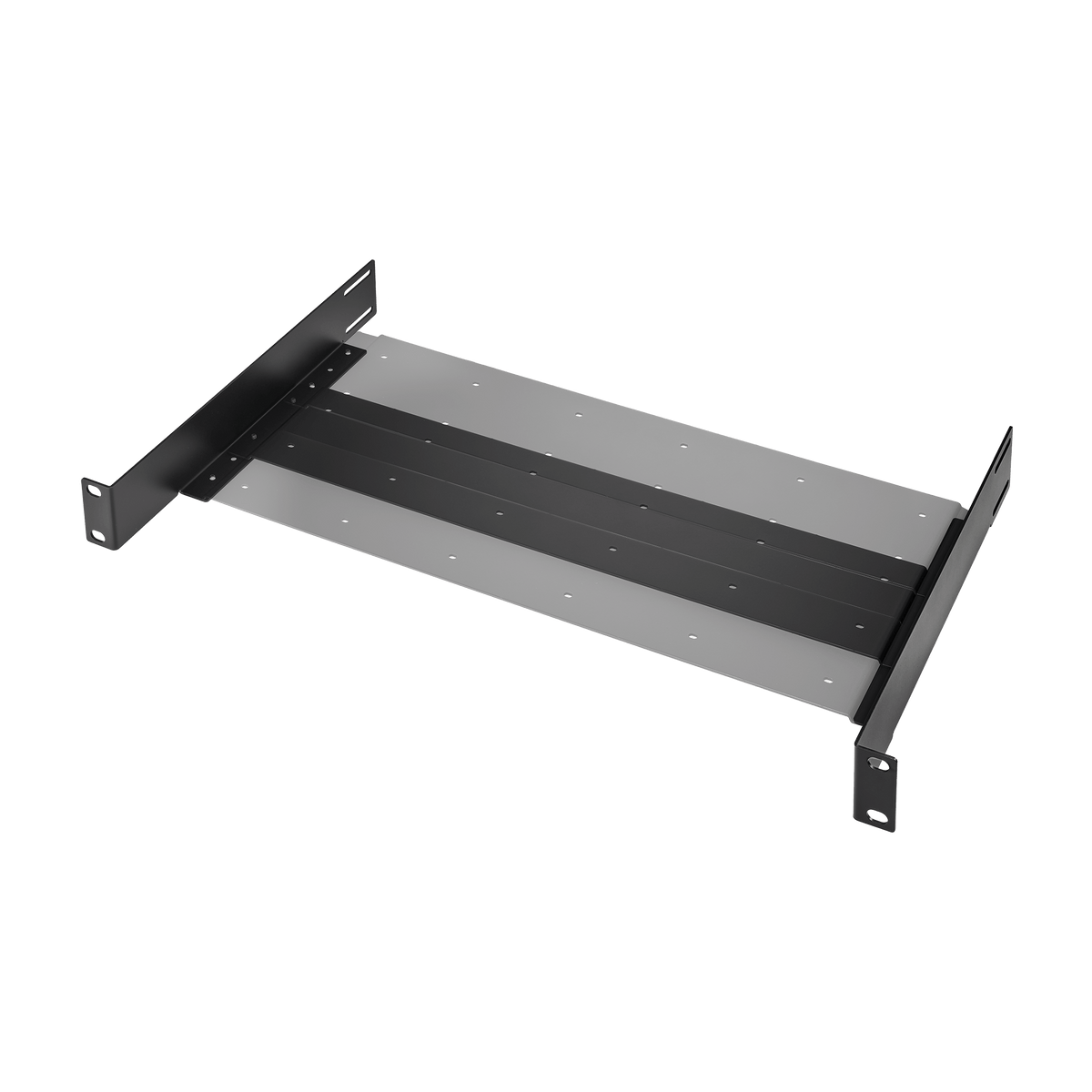

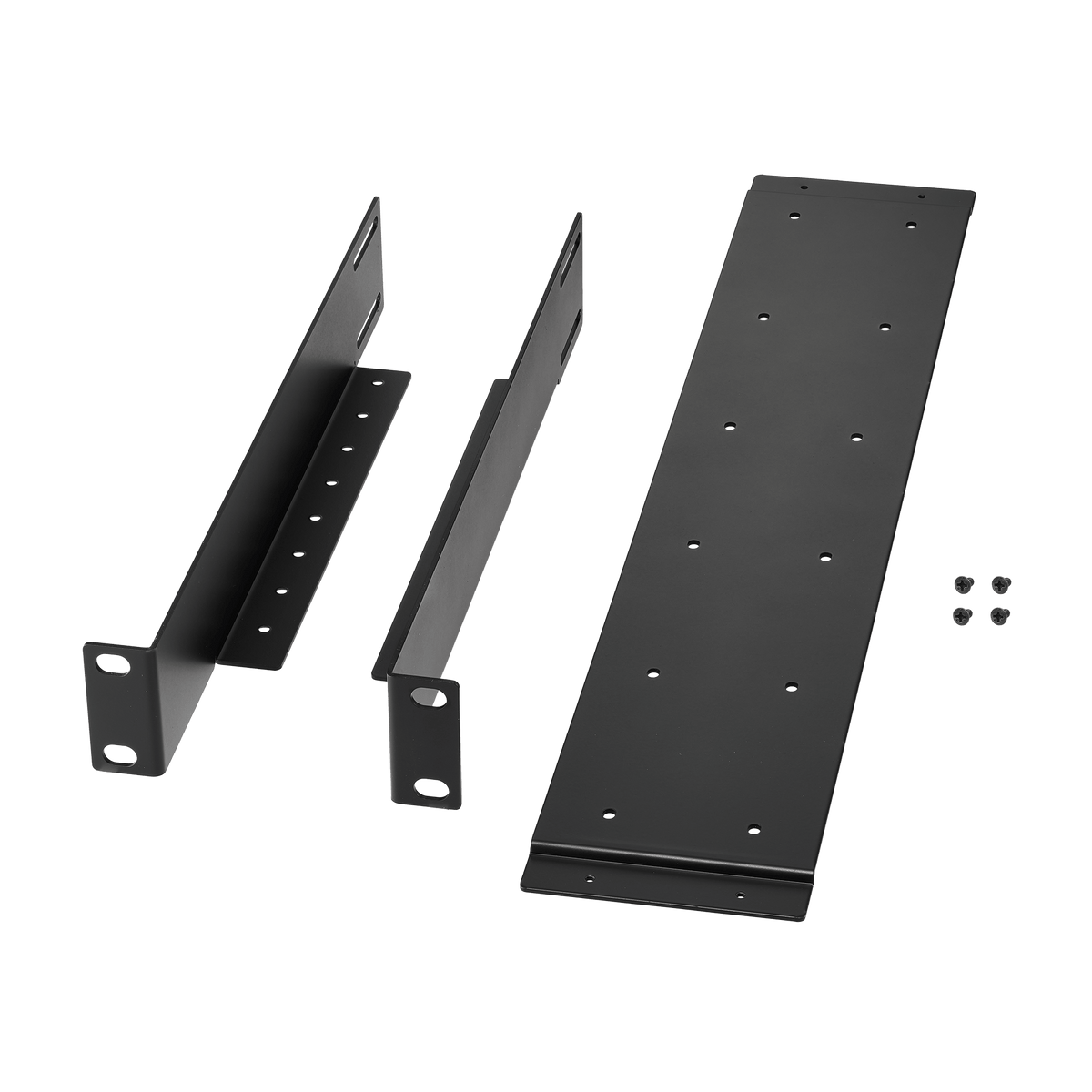

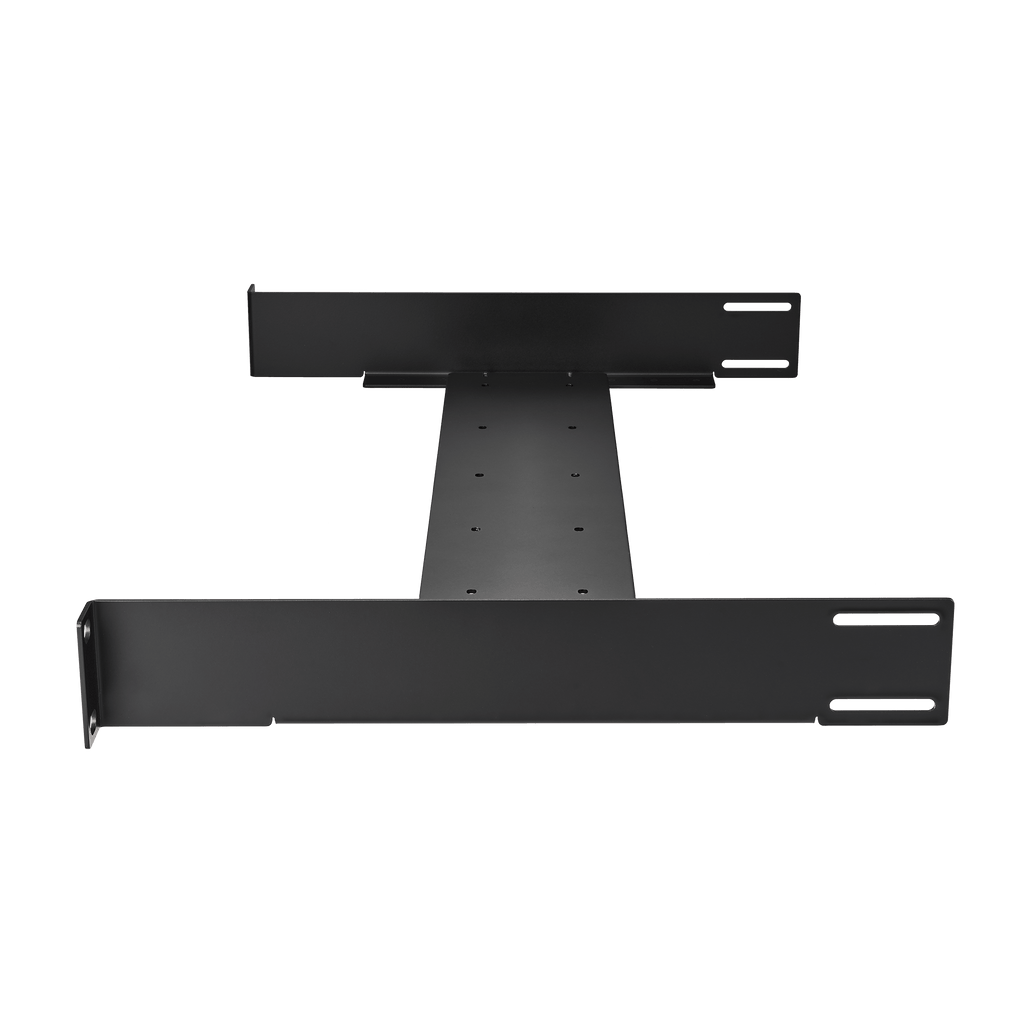

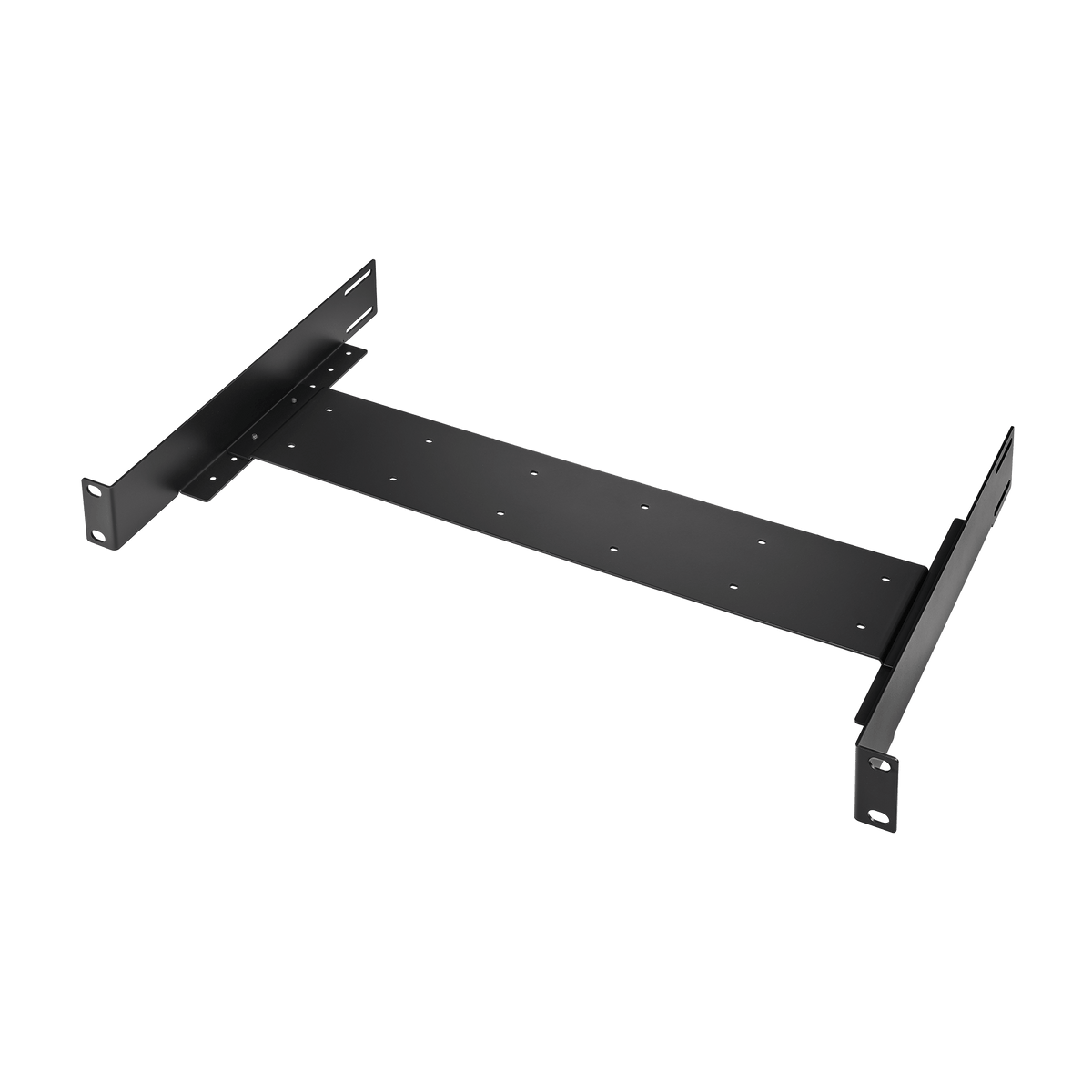

- Included AT8620 rack-mount tray allows three ATW-CHG6 charging stations to be mounted in a 2U space
- Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+
- Charging status and battery level can be monitored via the station’s LED indicators or in Audio-Technica’s Wireless Manager
- Two microphone hangers are included for convenient lavalier mic storage
- Transmitter firmware can be updated while transmitters are docked in the charging station
- Charging station can be mounted vertically or horizontally outside of rack tray if necessary
- Includes: ATW-CHG6 charger, mounting plate, two lavalier mic hangers, link cables to connect multiple chargers, AT8620 rack-mount tray
Specifications
Overall System
- Operating Frequencies: DF2: 470.125 to 607.875 MHz
- Modulation Mode: Standard: 8-PSK; HD mode: 16QAM
- Occupied Bandwidth: Standard: 192 kHz; HD mode: 96 kHz
- Frequency Response: Standard: 20 to 20,000 Hz; HD mode: 20 to 20,000 Hz
- Depending on attached microphone element.
- Operating Range: 100 m (328′)
- Open range environment with no interfering signals.
- Dynamic Range: ATW-DT3201 (Mic input): 120 dB, A-weighted, typical; ATW-DT3201 (Inst. input): 109 dB, A-weighted, typical; ATW-DT3202: 120 dB, A-weighted, typical; ATW-DT3207: 120 dB, A-weighted, typical
- Total Harmonic Distortion: 0.1% or less (at 1 kHz, -20 dBFS)
- Maximum Simultaneous Use (recommended): Standard: 17 channels / 6 MHz
- Results may vary depending on the radio environment and usage conditions.
- Delay: Standard: 2.1 ms typ.; HD mode: 3.3 ms typ.
- Audio Sampling Rate: Standard: 48 kHz; HD mode: 48 kHz
- Encryption System: AES256
- Notes: For product improvement, the product is subject to modification without notice.
Receiver & Transmitter Specifications
ATW-DR3240DAN Receiver
- Receiving System: Robust: MRC true diversity; Normal: Antenna combining diversity
- Image Rejection: 70 dB
- RF Sensitivity: -98 dBm (10⁻⁵ BER)
- Maximum Output Level: +18 dBV
- Antenna Input: BNC, 50 ohms
- Antenna Power: 12 V DC, 150 mA x2
- Maximum Power Consumption: AC adapter: 22 W (75 Btu/h); PoE+: 22 W (75 Btu/h)
- Power Supply: 100 to 240 V AC 50/60 Hz; PoE+ (IEEE 802.3at Class 4)
- Network: IP control: 100 Mbps; Dante: 1 Gbps
- Operating Temperature Range: -5°C to 40°C (23°F to 104°F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Cooling Method: Fan-assisted air cooling
- Airflow Direction: Front intake / Rear exhaust
- Dimensions: 210 mm (8.3”) × 288.2 mm (11”) × 42.5 mm (1.7”) (W x D x H)
- Weight (without included accessories): 2.25 kg (5.0 lbs)
- Included Accessories: Whip antenna ×2; AC adapter (AD-SA1230XA); AC cable; Rubber foot ×4; Rack-mount adapter (short); Rack-mount adapter (long); Fixing screw ×7 (3 for the bottom, 4 for the sides); BNC cable kit ×2
ATW-DR3220LK Receiver
- Receiving System: Robust: MRC true diversity; Normal: Antenna combining diversity
- Image Rejection: 70 dB
- RF Sensitivity: -98 dBm (10⁻⁵ BER)
- Maximum Output Level: +18 dBV
- Antenna Input: BNC, 50 ohms
- Antenna Power: 12 V DC, 150 mA x2
- Maximum Power Consumption: AC adapter: 13 W (44 Btu/h); PoE+: 14 W (48 Btu/h)
- Power Supply: 100 to 240 V AC 50/60 Hz; PoE+ (IEEE 802.3at Class 4)
- Network: IP control: 100 Mbps; Audio-Technica Link: 100 Mbps
- Operating Temperature Range: -5°C to 40°C (23°F to 104°F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Cooling Method: Fan-assisted air cooling
- Airflow Direction: Front intake / Rear exhaust
- Dimensions: 210 mm (8.3”) × 288.2 mm (11”) × 42.5 mm (1.7”) (W x D x H)
- Weight (without included accessories): 2.1 kg (4.6 lbs)
- Included Accessories: Whip antenna ×2; AC adapter (AD-SA1230XA); AC cable; Rubber foot ×4; Rack-mount adapter (short); Rack-mount adapter (long); Fixing screw ×7 (3 for the bottom, 4 for the sides); BNC cable kit ×2
ATW-DT3201 Body-Pack Transmitter
- RF Output Power: Standard: 20 mW, 10 mW, 1 mW; HD mode: 1 mW
- Input Connection: Four pin locking connector
- Pin 1: GND
- Pin 2: INST. INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +10V
- High-pass Filter: 120 Hz, 12 dB/octave
- Battery: Lithium-ion battery LI-220 (included)
- Battery Life: 12 hours (10 mW)
- May vary depending on usage conditions.
- Operating Temperature Range: -5◦ C to +45◦ C (23◦ F to 113◦ F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Dimensions: 56 mm (2.2”) × 80 mm (3.1”) × 24 mm (0.94”) (W x D x H)
- Weight (with included battery): 172 g (6.1 oz)
- Included Accessories: Transmitter indicator set (seven colors); Pouch
ATW-DT3202 Handheld Transmitter
- RF Output Power: Standard: 20 mW, 10 mW, 1 mW; HD mode: 1 mW
- Microphone: Interchangeable microphone capsule-compatible
- High-pass Filter: 120 Hz, 12 dB/octave
- Battery: Lithium-ion battery LI-320 (included)
- Battery Life: 17.5 hours (10 mW)
- May vary depending on usage conditions.
- Operating Temperature Range: -5◦ C to +45◦ C (23◦ F to 113◦ F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Dimensions: ATW-DT3202 (without capsule): 183.5mm (7.2”) × 37 mm (1.5”) in diameter; ATW-DT3202/C510: 255 mm (10”) × 53.7 mm (2.1”) in diameter
- Weight (with included battery): ATW-DT3202 (without capsule): 245 g (8.6 oz); ATW-DT3202/C510: 374 g (13 oz)
- Included Accessories: Transmitter indicator set (seven colors); AT8456a Quiet-Flex™ microphone stand clamp; 5/8"-27 male to 3/8"-16 female threaded screw adapter; ATW-RR1 anti-rolling ring; Pouch
ATW-T3207 Desk Stand Transmitter
- RF Output Power: Standard: 20 mW, 10 mW, 1 mW; HD mode: 1 mW
- Microphone: Gooseneck microphone supported
- High-pass Filter: 120 Hz, 12 dB/octave
- Battery: Lithium-ion battery LI-220 (included)
- Battery Life: When using a gooseneck microphone with no LED: Approx. 9.5 hours (10 mW); When using a gooseneck microphone with an LED: Approx. 7.5 hours (10 mW)
- May vary depending on usage conditions.
- Operating Temperature Range: -5◦ C to +45◦ C (23◦ F to 113◦ F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- USB Charging Connector: USB Type-C (USB 2.0)
- Dimensions: 90.5 mm (3.56”) × 129.4 mm (5.1”) × 52.1 mm (2.1”) (W × D × H)
- Weight (with included battery): 495 g (17 oz)
- Included Accessory: Transmitter indicator set (seven colors)
ESW-CHG6 Charging Station
- Power Supply: 12 V DC, 3.0 A
- Charging Output: AC adapter: When charging one to four transmitters: 5V 1.1A; When charging five or six transmitters: 5 V 0.8 A; When charging seven or eight transmitters: 5 V 0.5 A
- PoE+: When charging one to two transmitters: 5V 1.1A; When charging three to six transmitters: 5 V 0.5 A
- Energy-saving mode: 12 V 0.2 A
- Maximum Power Consumption: When charging two transmitters: AC adapter: 15 W (51 Btu/h); PoE+: 16 W (55 Btu/h)
- Charging Time (AC adapter): ATW-DT3201 (LI-220): When charging one to four transmitters: Approx. 2 hours 30 minutes; When charging five to six transmitters: Approx. 3 hours 10 minutes; When charging seven to eight transmitters: Approx. 5 hours
- Charging Time (AC adapter): ATW-DT3202 (LI-320): When charging one to four transmitters: Approx. 3 hours 50 minutes; When charging five to six transmitters: Approx. 5 hours; When charging seven to eight transmitters: Approx. 7 hours 10 minutes
- Charging Time (PoE+): ATW-DT3201 (LI-220): When charging one to two transmitters: Approx. 2 hours 30 minutes; When charging three to six transmitters: Approx. 5 hours
- Charging Time (PoE+): ATW-DT3202 (LI-320): When charging one to two transmitters: Approx. 3 hours 50 minutes; When charging three to six transmitters: Approx. 7 hours 10 minutes
- Charging Time (Energy-saving mode): ATW-DT3201 (LI-220): Approx. 5 hours; ATW-DT3202 (LI-320): Approx. 7 hours 10 minutes
- Results may vary depending on usage conditions.
- Network: 100 Mbps
- Operating Temperature Range: 0◦ C to 40◦ C (32◦ F to 104◦ F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Cooling Method: Fan-assisted air cooling
- Airflow Direction: Front intake / Rear exhaust
- Dimensions: 145.6 mm (5.7”) × 78.3 mm (3.1”) × 154mm (6.1”) (W x D x H)
- Weight: 678 g (24 oz)
- Included Accessories: Link cable (short); Link cable (long); Link plate; Link plate screws; Microphone holder
ATW-CHG7 Charging Station
- Power Supply: 12 V DC, 3.0 A
- Charging Output: When charging one to four transmitters: 4.2 V DC 1.5 A; When charging five or six transmitters: 4.2 V DC 1.1 A; When charging seven or eight transmitters: 4.2 V DC 0.7 A
- Maximum Power Consumption: When charging four transmitters: 30.6 W
- Charging Time: When charging one to four transmitters: Approx. 2 hours; When charging five or six transmitters: Approx. 2 hours 50 minutes; When charging seven or eight transmitters: Approx. 3 hours 40 minutes
- Energy-saving mode: Approx. 3 hours 40 minutes
- Results may vary depending on usage conditions.
- Network: 100 Mbps
- Operating Temperature Range: 0◦ C to 40◦ C (32◦ F to 104◦ F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Dimensions: 209.9 mm (8.3") x 303.9 mm (12") x 65.4 mm (2.6") (W x D x H)
- Weight: 866 g (31 oz)
- Included Accessories: Link cable; Link plate; Link plate screws
ATW-CHGA6 Battery Charger
- Power Supply: USB Type-C, ATW-CHG6
- Charging Output: USB Type-C: 4.2 V 0.5 A
- ATW-CHG6: When charging one to four transmitters: 4.2 V 1.2 A; When charging five to six transmitters: 4.2 V 0.8 A; When charging seven to eight transmitters: 4.2 V 0.5 A
- Charging Time (LI-220): USB Type-C: Approx. 5 hours
- Results may vary depending on usage conditions.
- Charging Time (LI-320): USB Type-C: Approx. 7 hours 10 minutes
- Results may vary depending on usage conditions.
- Operating Temperature Range: 0◦ C to 40◦ C (32◦ F to 104◦ F)
- Storage Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Dimensions: 63.8 mm (2.5”)×106.8 mm (4.2”) × 25 mm (0.98”) (W × D × H)
- Weight: 64 g (2.3 oz)
LI-220 Lithium Ion Battery
- Type: Lithium ion
- Output Voltage: 3.6 V DC
- Capacitance: 2,200 mAh
- Dimensions: 39.7 mm (1.6") x 56.7 mm (2.2") x 13.5 mm (0.53") (W x D x H)
- Weight: 49 g (1.7 oz)
LI-320 Lithium Ion Battery
- Type: Lithium ion
- Output Voltage: 3.6 V DC
- Capacitance: 3,200 mAh
- Dimensions: 21.4 mm (0.84") x 74.8 mm (2.9") x 20.9 mm (0.82") (W x D x H)
- Weight: 56 g (2.0 oz)
