Overview

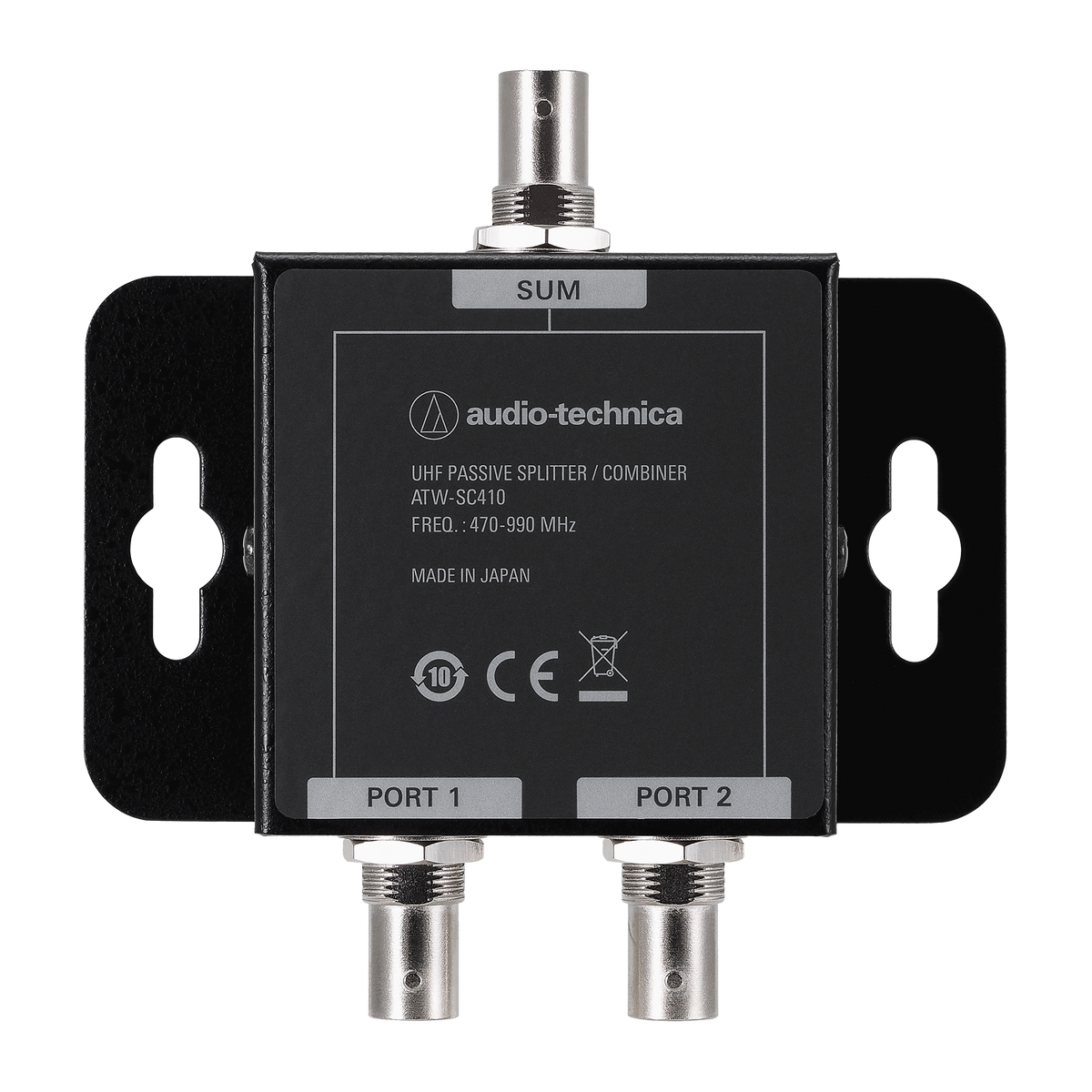

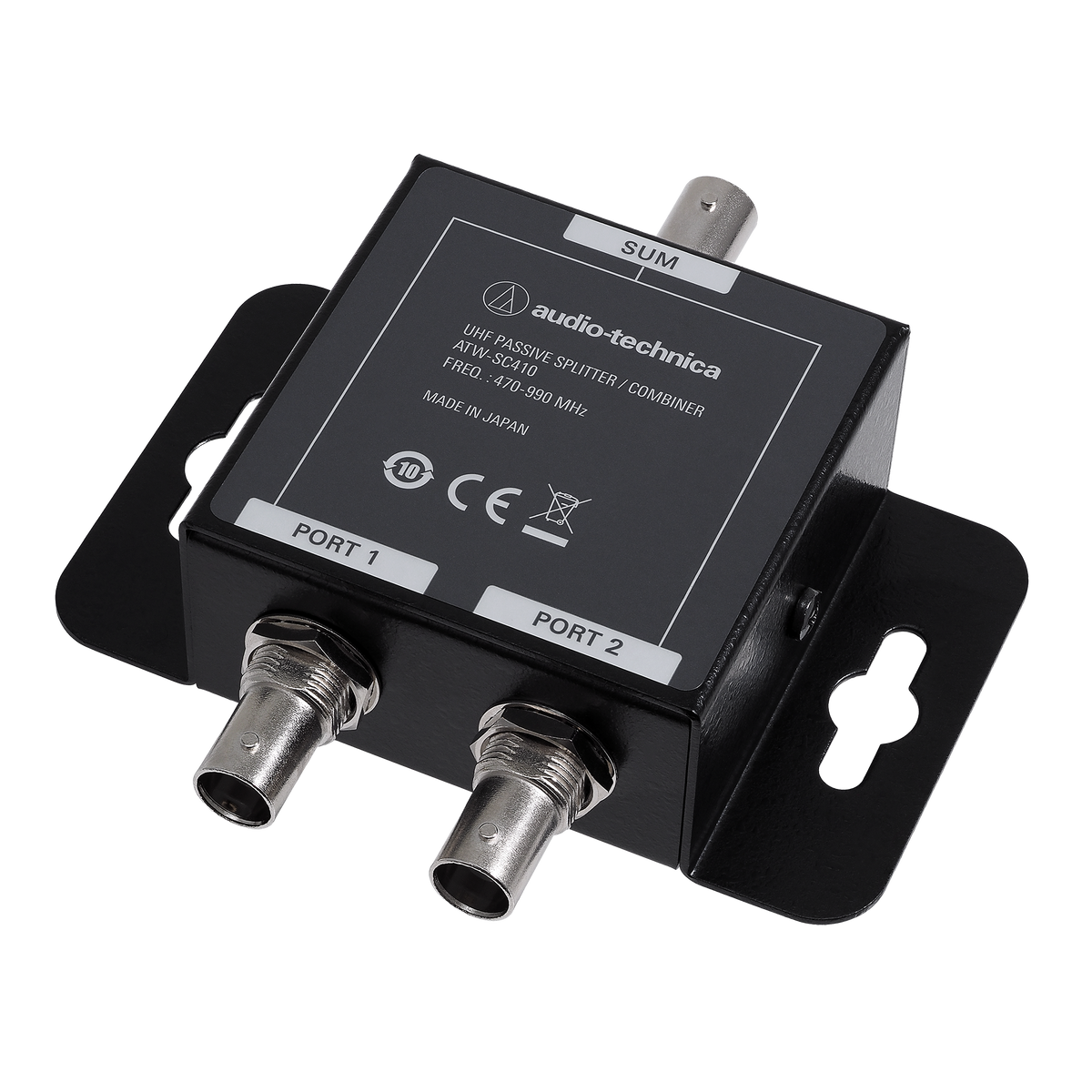

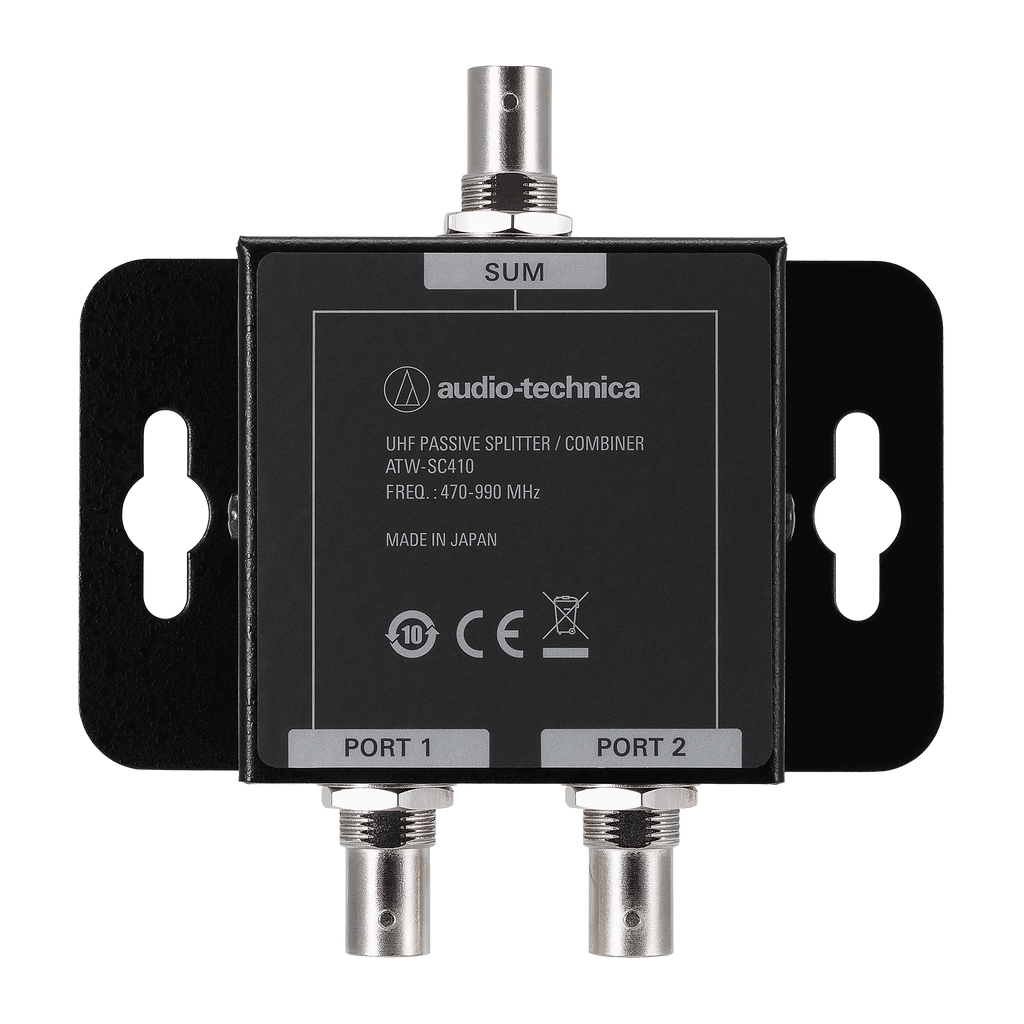

The ATW-SC410 can be used to combine or split antenna signals.
Equipped with industry-standard BNC-type connectors, the ATW-SC410 requires no power or user configuration and connects easily to wireless microphone antennas.
Wideband capability covers the entire frequency range between 470 and 990 MHz.
Sold as a pair.
Features
- UHF passive antenna splitter/combiner
- Wideband 470-990 MHz
- Industry-standard BNC-type connectors
- Housed in a rugged metal chassis suitable for rack or wall mounting, with pre-drilled screw holes for secure installation
- Sold as a pair
Specifications
Antenna & Distribution
- Frequency Range: 470 to 990 MHz
- Impedance: 50 ohms
- High Frequency Transmission Loss: 2 dB (typical)
- Current Pass Through: 420 mA
- Connections: BNC-J x 3
- Dimensions: 100 mm × 99.8 mm × 30 mm (W × D × H)
- Weight: 204 g
