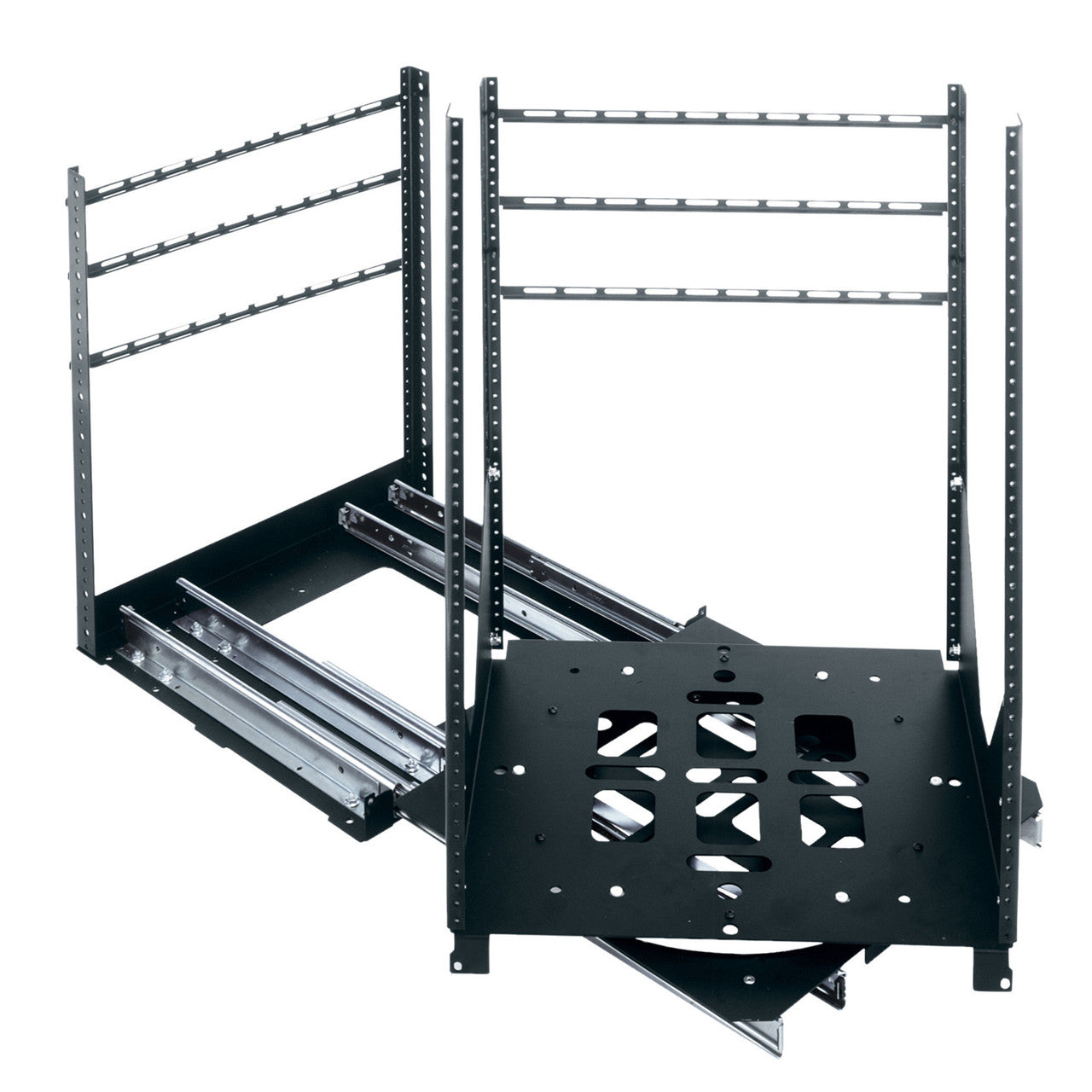

OverviewSpecify an SRSR for easy rear access to equipment connections in millwork, cabinets and flush in-wall installations. Available with a 19” or 23” useable depth, the SRSR system extends and rotates 90º in either direction, making it ideal for smaller systems.
- Removable rack frame allows in-shop integration and on-site installation of equipment
- Locks in the extended position for simplified equipment integration
- Rotating equipment bay locks in place at 0º, 60º and 90º for easy installation and servicing
- Self-centering mounting base makes it simple to align system within cabinet opening
- Rear cable support works in conjunction with rear rackrail for effective cable management
- Standard front and rear 10-32 threaded rackrail with marked spaces
specification Dimensions & Measurements
| Depth |
23.14 in (58.8 cm) |
| Height |
34.5 in (87.6 cm) |
| Primary Package Weight |
42 lbs (19.1 kg) |
| Rack Units |
18 RU |
| Usable Depth |
21.25 in (54 cm) |
| Usable Height |
31.5 in (80 cm) |
| Weight Capacity |
200 lbs (90.7 kg) |
| Width |
19.13 in (48.6 cm) |
Characteristics & Features
| Federal Ops Country of Origin |
USA |
| Finish |
Flat Black Powder Coat |
| Rack Rail Type |
10-32 |
| Rack Type |
In-Cabinet |
