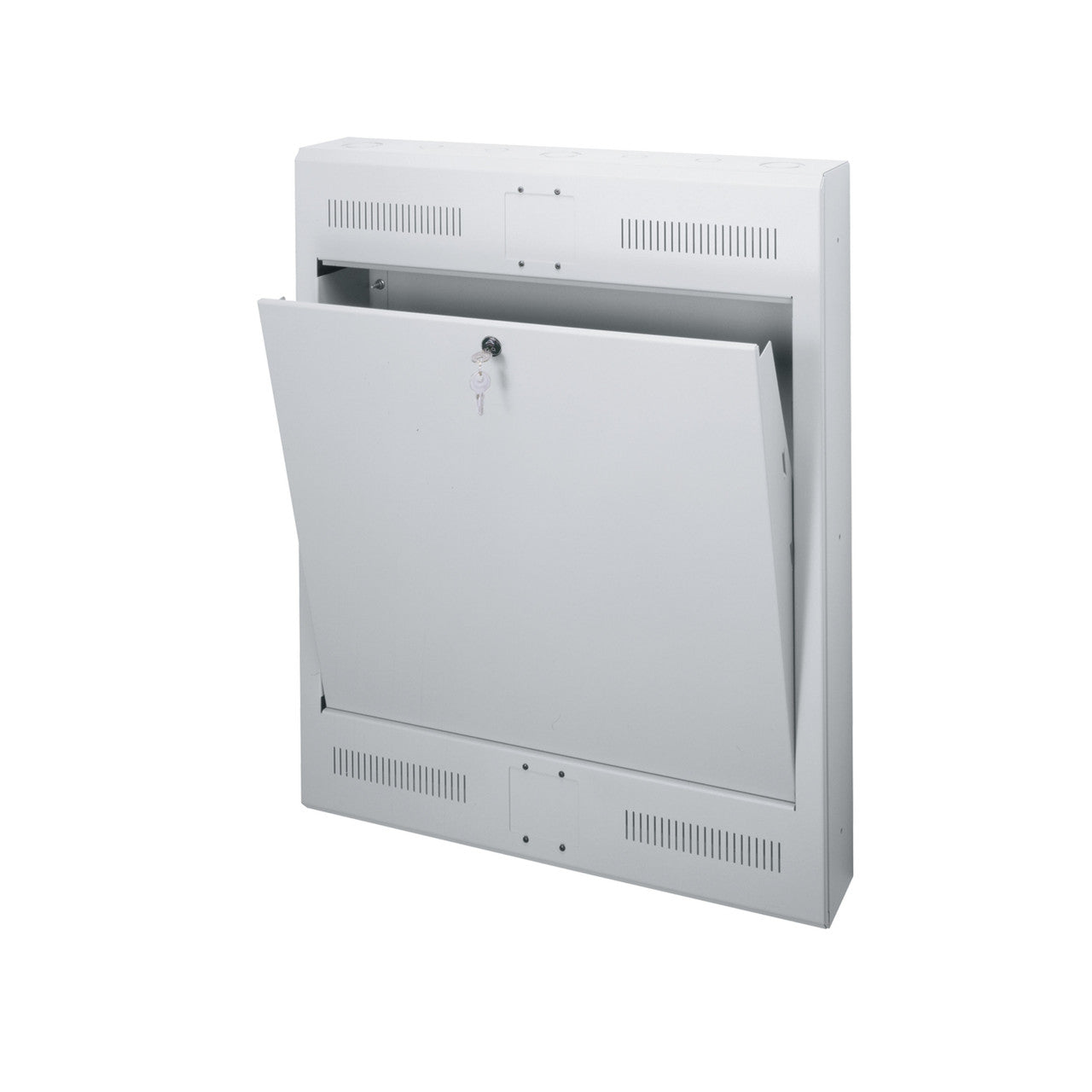

OverviewTilt Out Rack is ideal for small sound systems, paging and patching applications in schools, hotels, offices or anywhere a secure, low-profile wall mount solution is required. Available in surface-mount and flush-mount styles.
- Mounts on wall surface
- Tamper resistant design ideal for use in non-secure areas
- Mount non-rackmount equipment using included clamp bars
- 10-32 threaded rackrail is adjustable to accommodate handles and knobs
- Vented for effective passive thermal management
- Decora and UCP knockouts provided to mount connectors and devices
specification Dimensions & Measurements
| Depth |
4.38 in (11.1 cm) |
| Height |
30.2 in (76.7 cm) |
| Primary Package Weight |
46 lbs (20.9 kg) |
| Rack Units |
2 RU |
| UL Load Capacity |
100 lbs (45.4 kg) |
| Usable Depth |
20 in (50.8 cm) |
| Usable Height |
3.5 in (8.9 cm) |
| Weight Capacity |
100 lbs (45.4 kg) |
| Width |
24.5 in (62.2 cm) |
Characteristics & Features
| Application |
On-Wall |
| Federal Ops Country of Origin |
USA |
| Finish |
Putty Powder Coat |
| Mounting Style |
Surface |
| Rack Rail Type |
10-32 |
