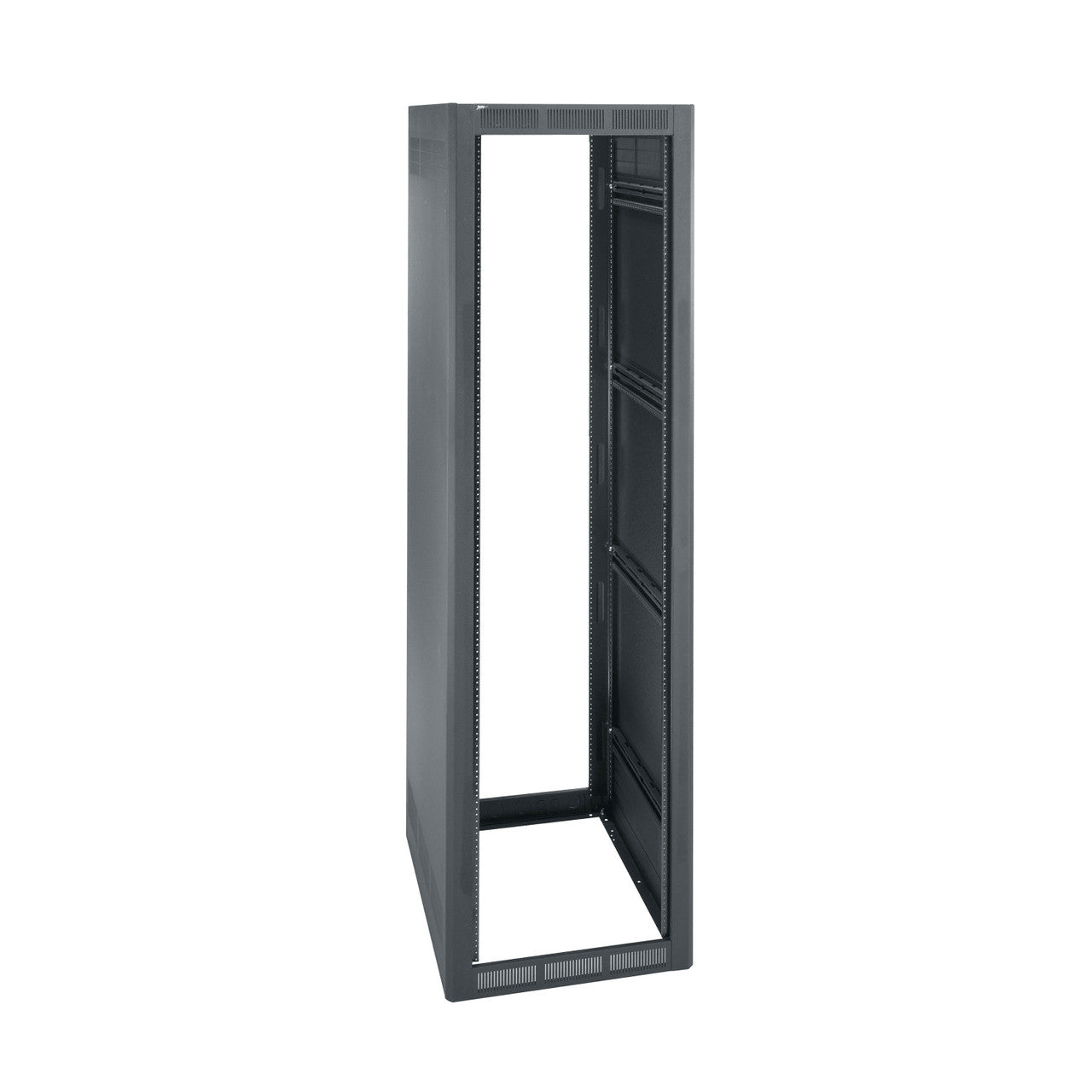

OverviewA rack series with a wider footprint, the WRK-SA series is designed for mounting equipment with thicker cable bundles than would fit easily in a basic rack, or to increase cooling airflow. Stand-alone installations version features fixed solid sides and seismic certification.
- Fully welded construction for strength
- Fixed solid sides for security and to control airflow
- 24-¼” overall width provides space for side cabling or cooling airflow
- Convenient lacing points and slotted rail brackets for cable management
- Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces
- Extra-wide rackrail features cable pass-throughs to facilitate front-to-rear cabling
specification Dimensions & Measurements
| Depth |
27.63 in (70.2 cm) |
| Height |
83.13 in (211.2 cm) |
| Panel Width |
19 in (48.3 cm) |
| Primary Package Weight |
195 lbs (88.5 kg) |
| Rack Units |
44 RU |
| UL Load Capacity |
2500 lbs (1,134 kg) |
| Usable Depth |
25.75 in (65.4 cm) |
| Usable Height |
77 in (195.6 cm) |
| Weight Capacity |
10000 lbs (4,535.9 kg) |
| Width |
24.25 in (61.6 cm) |
Characteristics & Features
| Federal Ops Country of Origin |
USA |
| Rack Rail Type |
10-32 |
| Rear Door |
No |
| Seismic Rated |
Yes |
