Overview

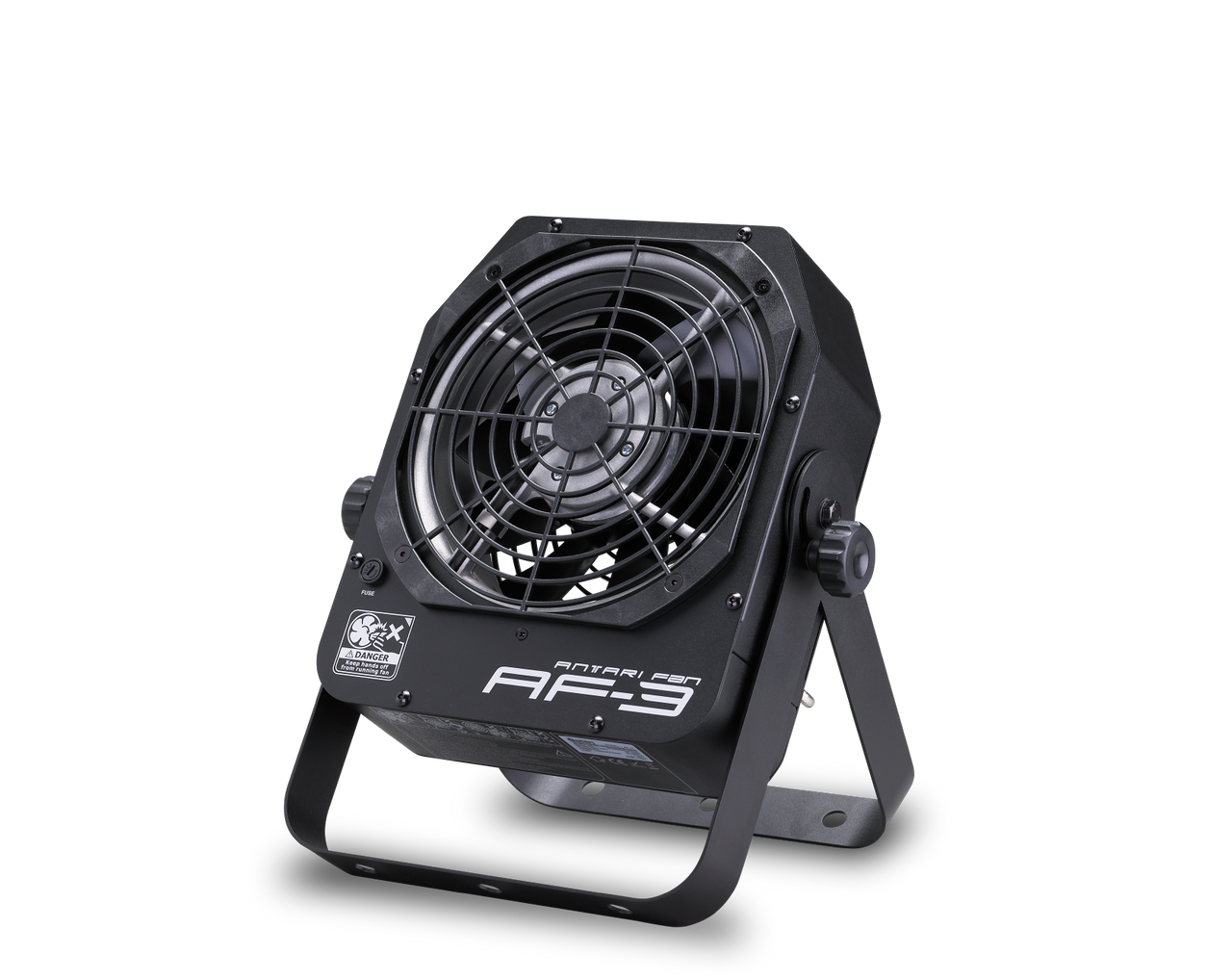

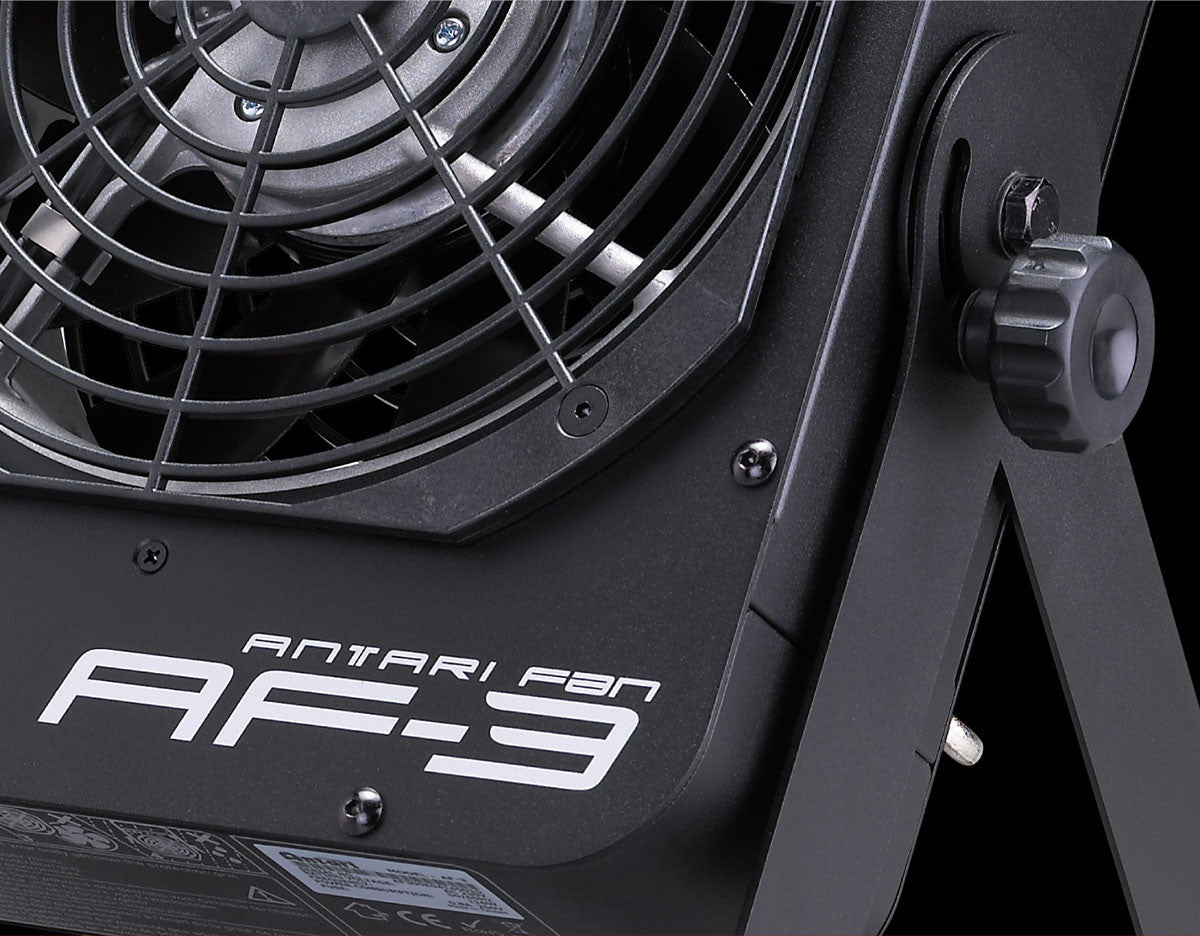

The AF-3 is a compact all-purpose stage fan features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.
In addition to the onboard DMX control and the manual knob, cable and wireless controllers are optional to cope with diverse needs. Total power consumption is merely 120W.
The attached bracket enables various output directions within 90 degrees while hanged or placed on the floor. Solid and handy design allows easy carry and storage.
SPECIFICATION
| Rated voltage |
US model : AC 100-120V, 50/60Hz 1.5A EU model : AC 220-240V, 50/60Hz 1.0A |
| Rated power | 127W |
| Ambient temp/ range |
0°C – 40°C (32°F – 104°F) |
| Air flow | 530 CFM (50Hz)、600 CFM (60Hz) |
| Fan speed | 750 – 2550 rpm (50Hz)、750 – 2800 rpm (60Hz) |
| Working Noise Level at 1 Meter | 72.6 dB |

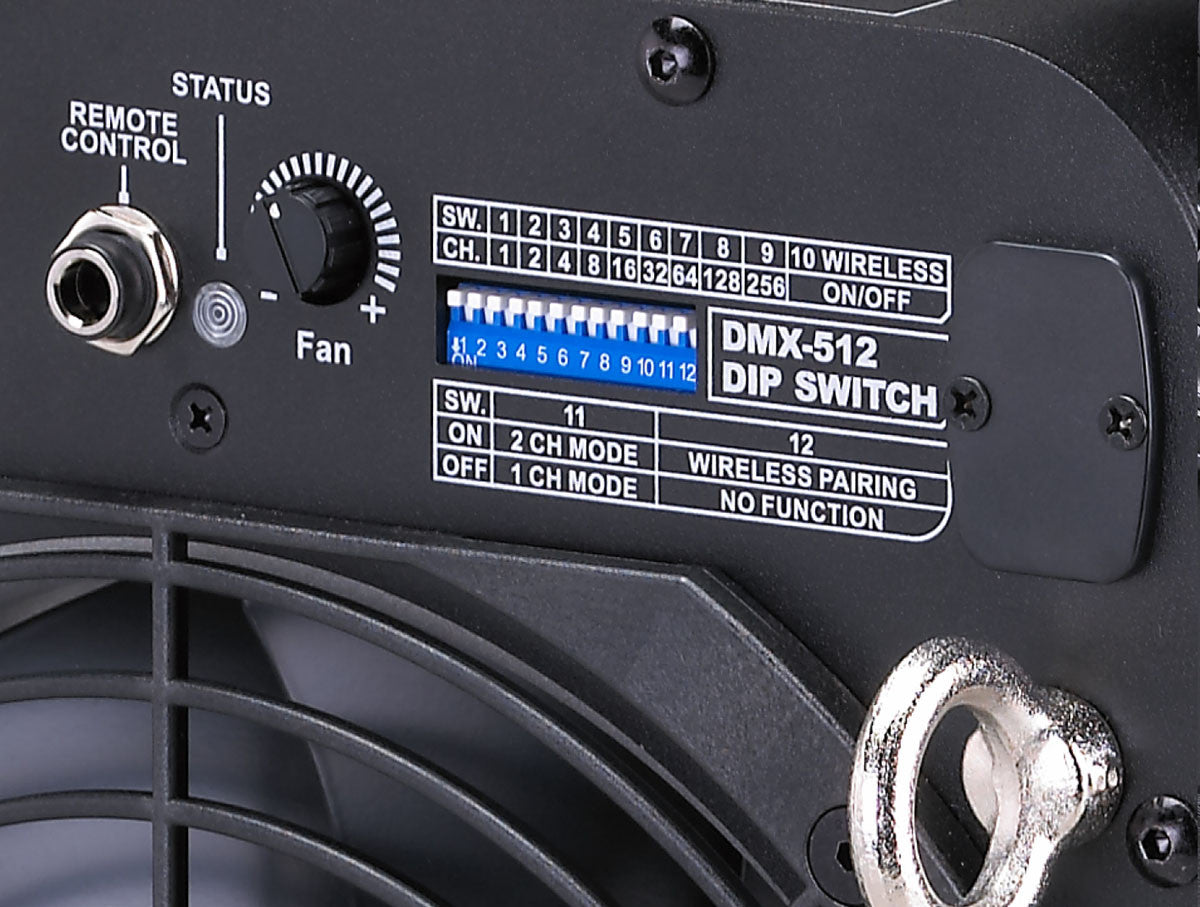

| Control Methods | Manual、DMX512、Wireless (Optional)、Cable Remote (Optional) |
| DMX channels | 1 channel |

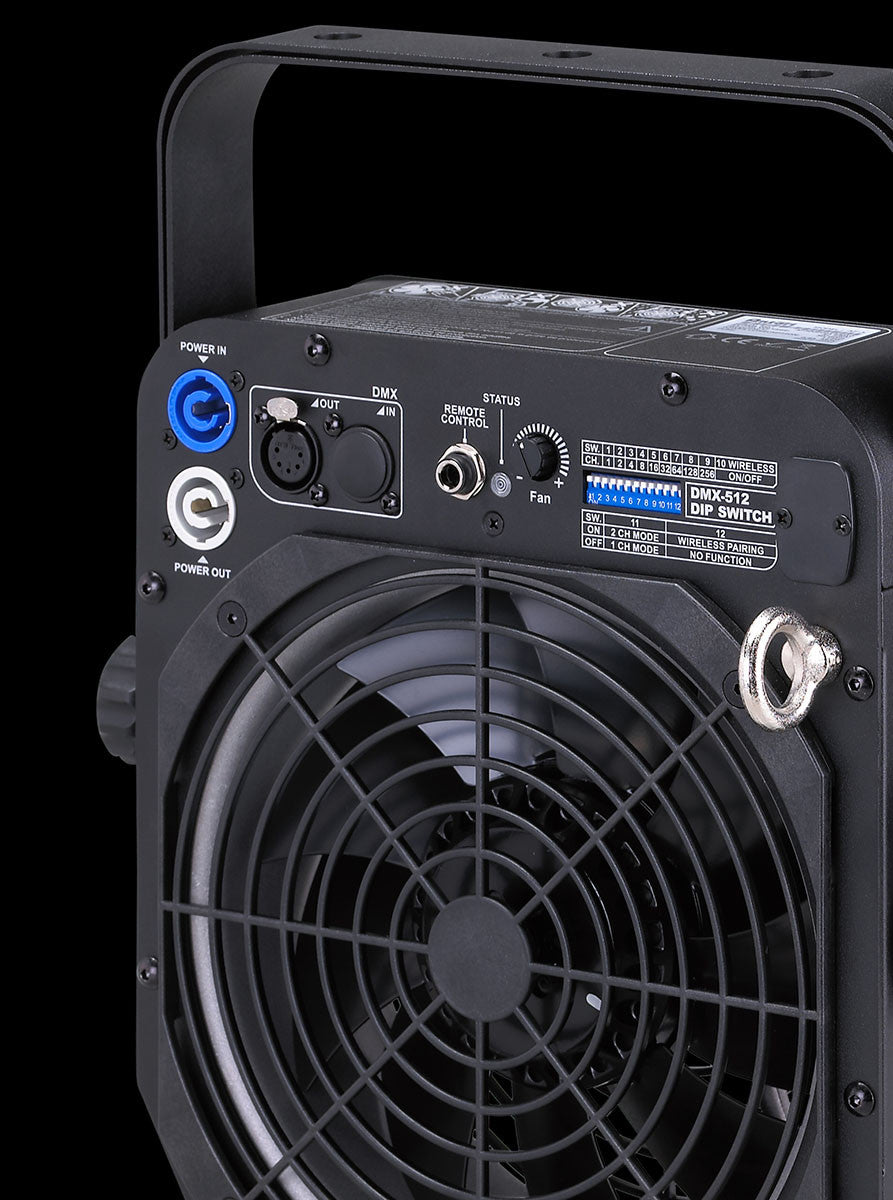

| Interface | XLR 5-Pin (DMX)、Neutrik powerCon (Power) |
| Optional accessories | Z-3 Cable Remote、WTR-10 Wireless Remote |
| Dimension |
AF-3 / AF-3X : L 124 W 316 H 368 mm (L4.88 W12.44 H14.49 inch) AF-3S : L 160 W 312 H 336.4 mm (L 6.29 W 12.28 H 13.24 inch) |
| Weight |
AF-3 / AF-3X : 6 kg ( 13.23 lbs ) AF-3S : 6.4 kg ( 14 lbs ) |
