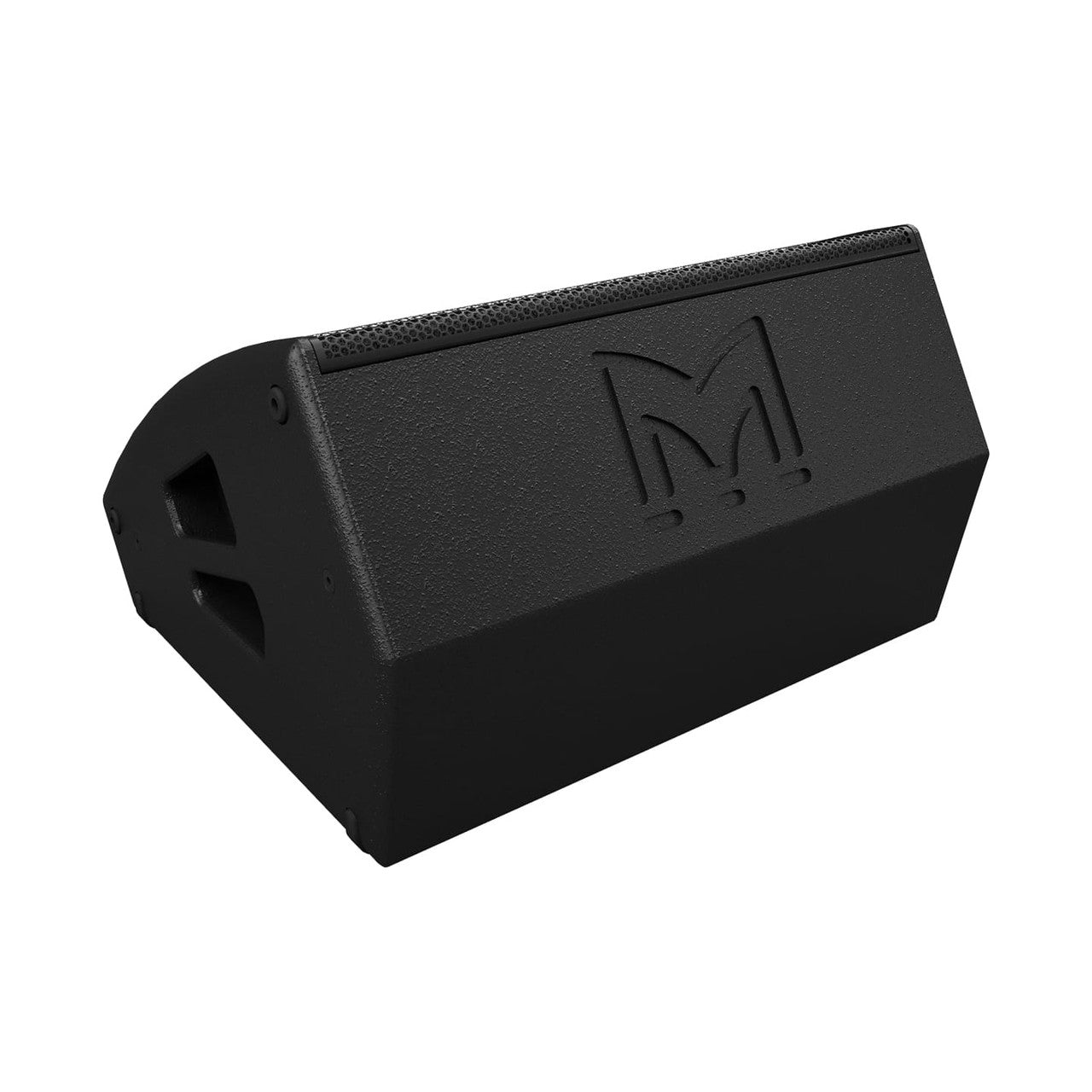

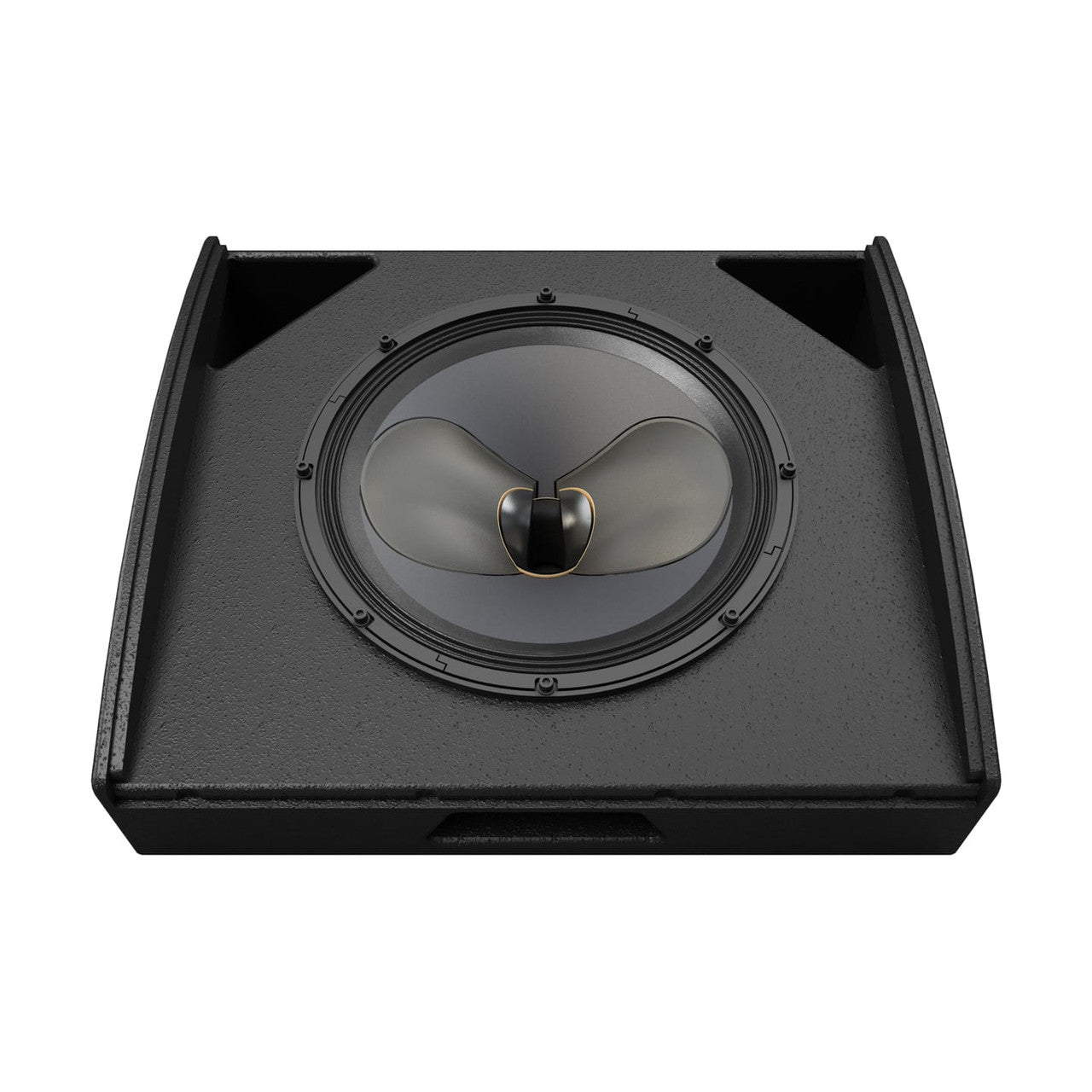

Combining very high output capability with Martin Audio’s signature sonic performance and consistent coverage, the LE200 is the ultimate, everyday professional monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.
Features
- Compact, two-way stage monitor
- Coaxial ‘point-source’ performance
- Differential Dispersion™ technology for consistent coverage
- Defined, near-rectangular coverage plane at head-height
- Switchable active/passive operation
- Low-profile plywood enclosure
- M8 rigging inserts
- Multiple connectors for flexible deployment
Applications
- Stage monitor
Specifications
| TYPE | Two-way, bi-amp/passive Coaxial Differential Dispersion |
| FREQUENCY RESPONSE (5) | 68Hz-18kHz ± 3dB, -10dB @ 50Hz |
| DRIVERS |
|
| RATED POWER (2) | 400W AES, 1600W peak |
| SENSITIVITY (8) |
|
| MAXIMUM SPL (9) | 133dB peak |
| NOMINAL IMPEDANCE |
|
| DISPERSION (-6dB) | 100°-60° horizontal, 60° vertical |
| CROSSOVER | 1.2kHz active/passive (switchable) |
| ENCLOSURE | Birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| BAFFLE ANGLE | 30˚ |
| CONNECTORS | 4 x NL4 type |
| PIN CONNECTIONS |
|
| FITTINGS |
|
| DIMENSIONS | (W) 610mm x (H) 364mm x (D) 562mm (W) 24.0ins x (H) 14.3ins x (D) 22.1ins |
| DIMENSIONS INCL FEET | (W) 616mm x (H) 367mm x (D) 562mm (W) 24.2ins x (H) 14.4ins x (D) 22.1ins |
| WEIGHT | 26kg (57.3lbs) |
