Overview
Capable of 135dB peak, THS is an extremely powerful point source loudspeaker which combines very high output with extended frequency response. It is ideally suited to medium-scale club applications and installations which call for exceptionally high sound levels from a compact, standalone loudspeaker system.
Features
- Bi-amp three-way loudspeaker system

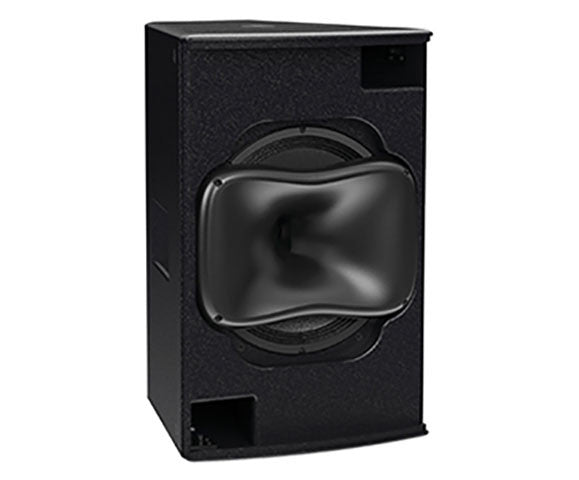

- Compact trapezoid enclosure with very high output capability

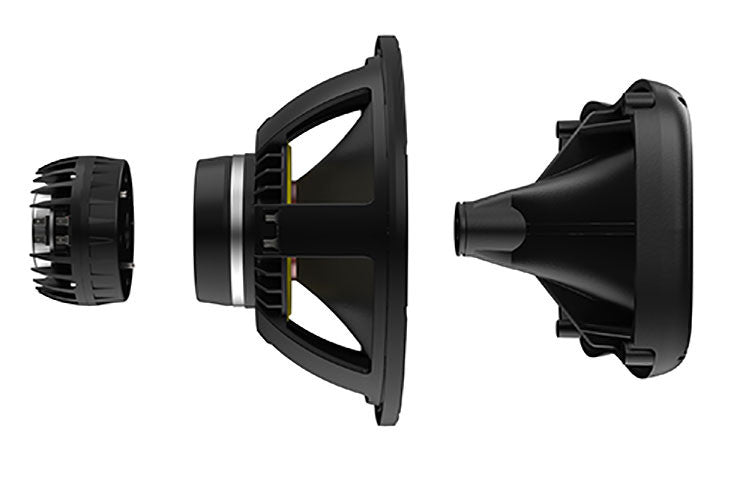

- Triaxial Point Source configuration with user-rotatable mid/high frequency horn
- 15” (380mm)/4” (100mm) voice coil, low distortion neodymium LF driver
- 4” (100mm) HT polymer ring radiator/1.4” (35mm) exit MF driver
- 2.5” (64mm) HT polymer ring radiator/1.4” (35mm) exit HF driver
- 85° H x 50° V dispersion
- Supported by DISPLAY 3 software
Specifications
- TYPE: Bi-Amp 3-way (Passive MF/HF) Loudspeaker
- FREQUENCY RESPONSE (5): 54Hz-18kHz ± 3dB, -10dB @43Hz with preset
- DRIVER:
- LF: 15” (380mm) / 4” (100mm) coil neodymium motor
- MF: 1.4" (25mm) exit / 4" (100mm) coaxial HT polymer ring radiator
- HF: 1.4” (25mm) exit / 2.5" coaxial HT polymer ring radiator
- RATED POWER (2):
- LF: 800W AES, 3200W Peak
- MF/HF: 110W AES, 440W Peak
- SENSITIVITY (8): LF: 100dB
- MF/HF: 109dB
- MAXIMUM SPL (9): 129dB continuous, 135dB peak
- NOMINAL IMPEDANCE:
- LF: 8 Ohms
- MF/HF: 8 Ohms
- DISPERSION (-6dB): 85˚ horizontal, 50˚ vertical
- CROSSOVER: 650Hz/4.8kHz
- ENCLOSURE: Birch plywood
- FINISH: Textured black finish
- PROTECTIVE GRILLE: Black perforated steel
- CONNECTORS: NLT4MPXX-BAG speakons (pair)
- PIN CONNECTIONS:
- LF : 1+ / 1- ,
- MF/HF : 2+/2- 1+ / 1-, 2+ / 2-
- FITTINGS:
- 13 x M10 fixings,
- 4 x M10 Bracket Mounting Points and
- Two Handle Pockets
- DIMENSIONS:
- 710mm (H) x 457mm (W) x 511mm (D)
- 27.95ins (H) x 17.98ins (W) x 20.11ins (D)
- WEIGHT: 35.6 kg (78.48 lbs)
