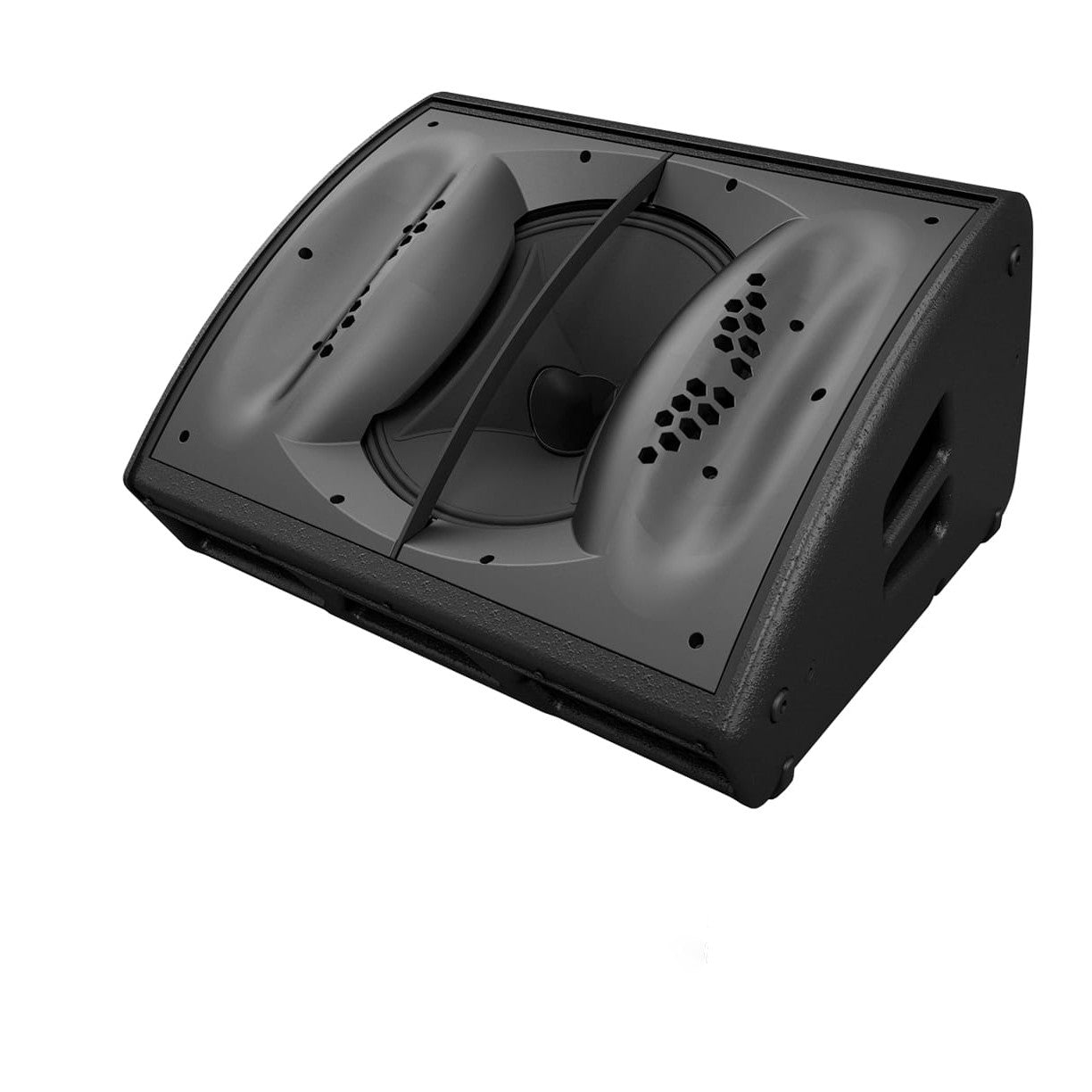

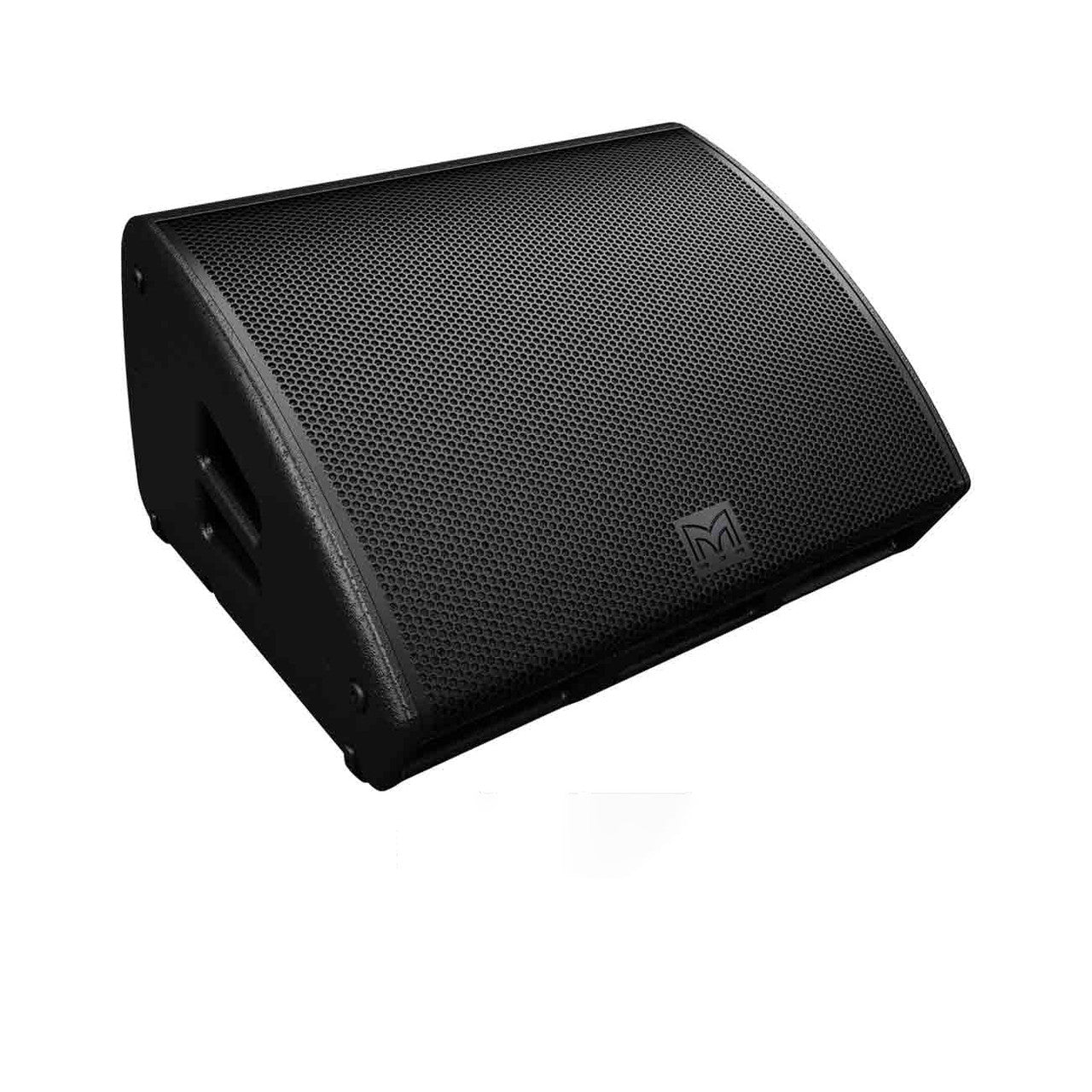

Combining very high output capability with exceptional sonic performance, coverage control and consistency, the XE500 is the ultimate, high SPL stage monitor. Its Coaxial Differential Dispersion drive unit comprises a powerful 15” (380mm) LF driver with a 3.5” (89mm) voice coil, and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm. Both drivers feature powerful neodymium magnet structures to maximise performance and reduce weight.
The loudspeaker shall be a bi-amplified, two-way system ultilising Coaxial Differential Dispersion technology and shall be operated in conjunction with a dedicated controller amplifier.
Its transducers shall consist of a reflex-loaded 15” low frequency driver and a coaxially-mounted 1.4” exit high frequency compression driver loaded by a static waveguide that merges with moving waveguides added to the cone of the low frequency driver to define the HF horn geometry. A third static waveguide shall increase the effective size of the horn mouth.
Horizontal dispersion shall vary from 60° to 30° and vertical dispersion shall be 70°. The on-axis frequency response shall be 62Hz-18kHz +/- 3dB. The loudspeaker shall produce a maximum SPL of 143dB peak calculated at 1 metre. Power handling shall be 550W AES, 2200W peak. Rated impedance shall be LF: 4 ohms, HF: 8 ohms. Input connectors shall be NL4 type.
The enclosure shall be made from plywood and incorporate bar handles and threaded inserts. The drivers shall be protected by a perforated steel grille with scrim cloth backing.
Dimensions, including feet, (W x H x D) shall be 641mm x 367mm x 583mm (25.2in x 14.4in x 22.9in). Weight shall be 29kg (63.9lbs).
The loudspeaker shall be the Martin Audio XE500.
Features
- Very high-SPL, compact two-way stage monitor
- Coaxial ‘point source’ performance
- Differential Dispersion™ technology for consistent coverage
- Defined, rectangular coverage plane at head-height
- Complete system with iK42 for consistent high performance
- Visually-appealing, low-profile plywood enclosures
- Built-in risers for steeper monitor angle when required
- Side panel rubber feet for extra protection when up-ended
- Easy to carry and manoeuvre
- M8 rigging inserts
Applications
- Stage monitor
Specifications
| TYPE | Two-way, bi-amp, Coaxial Differential Dispersion Stage Monitor |
| FREQUENCY RESPONSE (5) | 62Hz-18kHz ± 3dB, -10dB @ 45Hz |
| DRIVERS |
|
| RATED POWER (2) |
|
| MAXIMUM SPL (9) | 143dB peak |
| SYSTEM AMPLIFIER | iKON® iK42 |
| NOMINAL IMPEDANCE |
|
| DISPERSION (-6dB) | 60-30° horizontal, 70° vertical |
| CROSSOVER | 1.1kHz active |
| ENCLOSURE | Birch/beech ply and hardwood |
| FINISH | Textured black paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| BAFFLE ANGLE | 30° (40° with risers) |
| CONNECTORS | 4 x NL4 type |
| PIN CONNECTIONS | LF: 1+/-, HF: 2+/- |
| FITTINGS |
|
| DIMENSIONS | (W) 635mm x (H) 364mm x (D) 583mm (W) 25.0ins x (H) 14.3ins x (D) 22.9ins |
| DIMENSIONS INCL FEET | (W) 641mm x (H) 367mm x (D) 583mm (W) 25.2ins x (H) 14.4ins x (D) 22.9ins |
| WEIGHT | 29kg (63.9lbs) |
