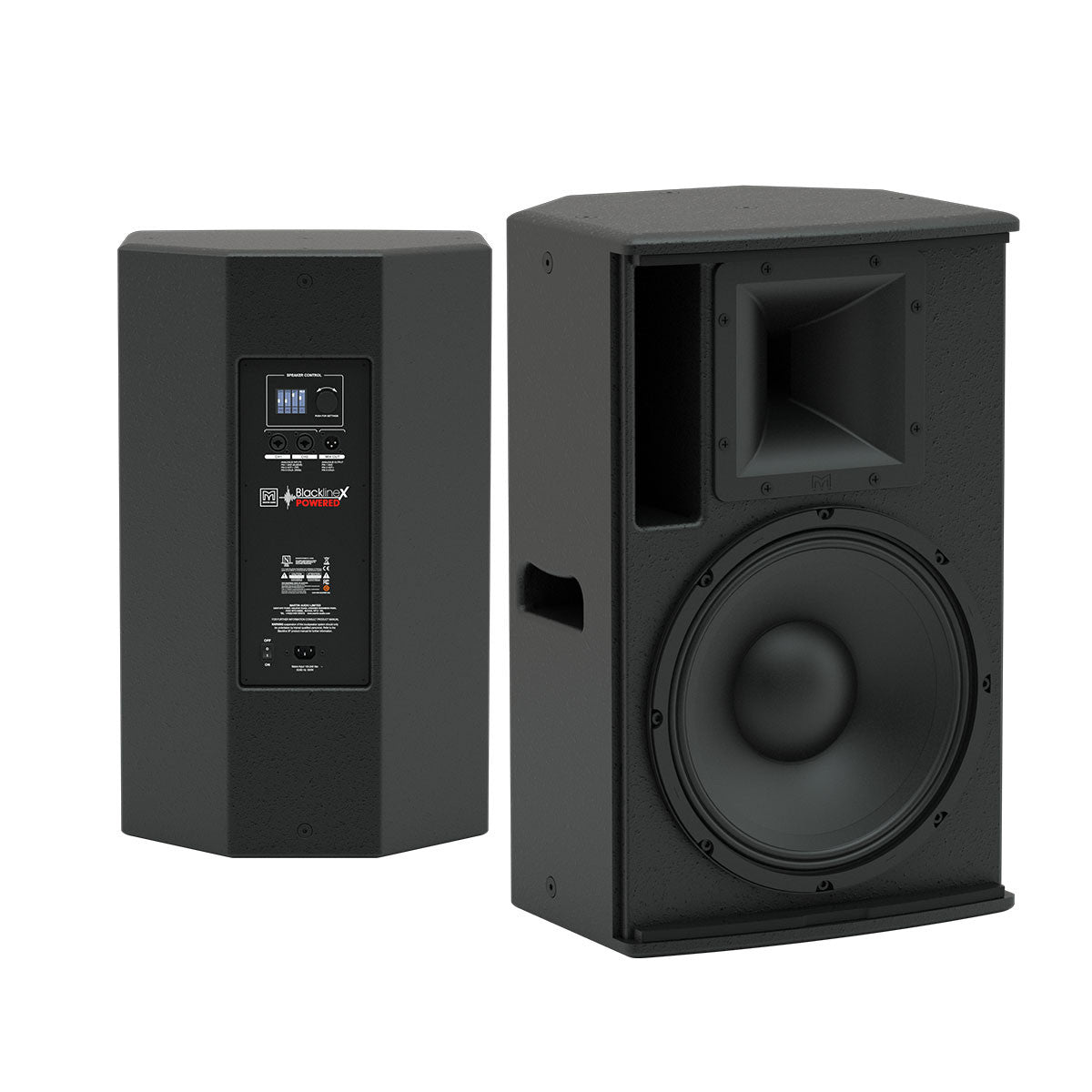

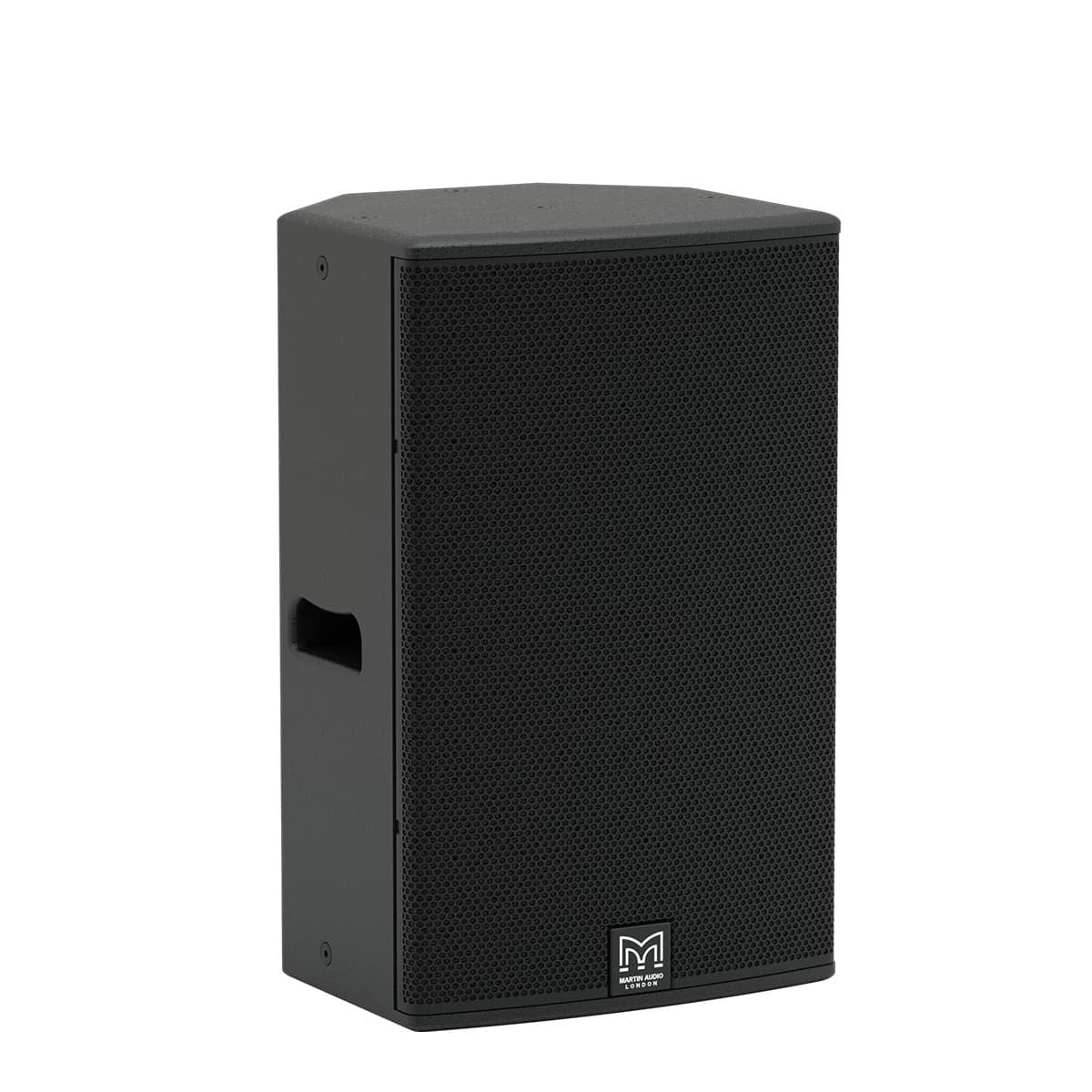

The XP12 is a compact, powered, two-way system designed by leading acoustic engineers. It can be used either as a stand- alone system, stage monitor or in conjunction with the XP118 powered subwoofer.
The loudspeaker shall be a self-powered two-way system. Its transducers shall consist of a reflex-loaded 12” low frequency driver and a 1” exit high frequency compression driver mounted on a high frequency horn. The horn shall be user-rotatable to enable vertical, horizontal and stage monitor operation.
Horizontal dispersion shall be 80° and vertical dispersion shall be 50°. The on-axis frequency response shall be 62Hz-20kHz +/- 3dB and the loudspeaker shall produce a maximum SPL of 128dB peak at 1 metre.
The loudspeaker shall incorporate a two-channel Class D amplifier which shall deliver a total of 1300W peak output to the transducers. Onboard DSP shall perform crossover and limiter functions and incorporate a three-channel mixer. Mixer settings, operating mode and voicing presets shall be effected by a rotary encoder and display screen on the rear panel. Bluetooth control and streaming shall be available as on option. The power supply shall employ Power Factor Correction and operate from 100-240V, 50-60Hz AC.
Audio input connectors shall be female XLR type combined with a ¼” jack. The mix output shall be available on a male XLR type connector. The AC power connector shall be a 3-pin IEC connector.
The loudspeaker enclosure shall be constructed from multi-laminate plywood with a black textured coating and be fitted with a pole-mount socket, pocket handles and M8 threaded inserts for mounting accessories. The drivers shall be protected by a perforated steel grille with a cloth backing.
Dimensions (W x H x D) shall be 358mm x 574mm x 318mm (14.1in x 22.6in x 12.5in). Weight shall be 18kg (40lbs).
The loudspeaker shall be the Martin Audio XP12.
Features
- Compact self-powered, portable two-way system
- 1300W of Class D amplification
- Global power supply with PFC (Power Factor Correction)
- Onboard DSP with rotary control interface
- Multi-function display for metering, control and function selection
- Three-channel mixer
- Three-band channel EQ, plus HPF (Ch1/2)
- Independent LF and HF peak and RMS limiters
- Three speaker mode and voicing presets
- Bluetooth® control and streaming option
- Durable plywood enclosure
- User-rotatable 80° x 50° HF horn
- Vertical and horizontal mounting options
- Symmetrical multi-angle enclosure for PA or stage monitor use
- Screw-free, cloth-backed steel grille
- Integral ergonomic handles
- Mounting options include pole-mount, wall bracket and flying inserts
Applications
- Portable Sound Reinforcement
- Live Music Clubs
- Nightclubs, Bars and Restaurants
- Corporate AV
- Hotels and Casinos
- Mobile DJ’s
- Weddings and Parties
- HoW Installations
- Rehearsal Studios
Specifications
| Acoustics | |
| TYPE | Compact self-powered two-way system |
| FREQUENCY RESPONSE (5) | 62Hz – 20kHz ±3dB, -10dB @ 50Hz |
| DRIVERS |
|
| MAXIMUM SPL (9) | 122dB continuous, 128dB peak |
| DISPERSION (-6dB) | 80° H x 50° V (user-rotatable) |
| CROSSOVER | 2.3kHz active, 24dB/octave |
| Module Audio In/Out | |
| INPUT CONNECTORS | 2 x female XLR/ 1⁄4” jack combo |
| MIC/LINE INPUT IMPEDANCE | 8 kΩ balanced |
| 1⁄4” JACK TS INPUT IMPEDANCE | 1 MΩ unbalanced |
| MIX OUTPUT CONNECTOR | 1 x male XLR |
| MIX OUTPUT IMPEDANCE | 600Ω balanced |
| Internal Processing | |
| Input channel EQ | 3-band on each channel plus HPF (Ch1/2) |
| Speaker EQ | 3 speaker mode/voicing presets |
| Protection | LF and HF Peak and RMS limiting, amplifier thermal protection |
| Amplifier Module | |
| TYPE | 2 channel switch-mode, class D |
| PEAK OUTPUT POWER | 1300W total 1000W LF, 300W HF |
| AVERAGE EFFICIENCY | 89% |
| COOLING | External convection cooled |
| MAXIMUM AMBIENT TEMPERATURE | 35°C (95°F) for full output |
| Power Supply | |
| TYPE | Switch-mode, fixed frequency with PFC |
| AC INPUT OPERATING RANGE | 100-240V ~ AC, 50 - 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 550W Max |
| MAINS CONNECTOR | 3-pin IEC |
| Mechanical | |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| FITTINGS | 17 x M8 inserts, pole-mount socket, 2 x pocket handle |
| DIMENSIONS | (W) 358mm x (H) 574mm x (D) 318mm (W) 14.1in x (H) 22.6in x (D) 12.5in |
| WEIGHT | 18kg (40lbs) |
